Description

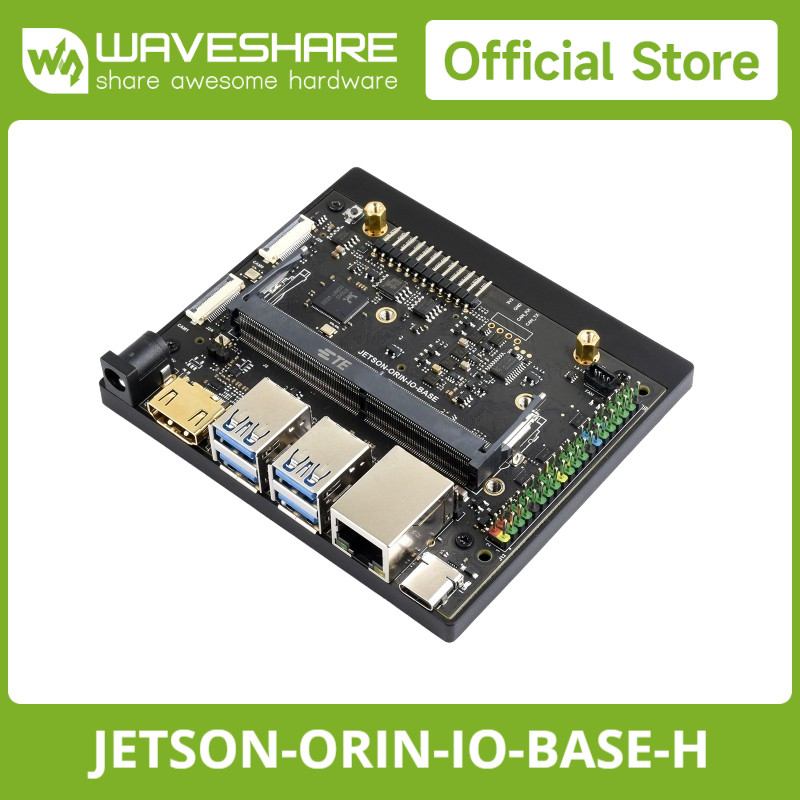

This product is the base board only. Please purchase the Orin Module separately. Waveshare Jetson Orin Nano/NX Super Base Board HDMI Version, Based on Jetson Orin Nano/NX AI Module, Compatible With The Base Board Of Official Jetson Orin Nano Super Developer Kit JETSON-ORIN-IO-BASE-H

Waveshare Jetson Orin Nano/NX Base Board, HDMI Version

Based on Jetson Orin Nano and Jetson Orin NX module, with HDMI video output port. Except for the video output interface, it provides almost the same peripheral interfaces, size and thickness as theJetson Orin Nano Developer Kit(Official Orin Nano kit), which is suitable for users to develop their applications and apply into various AI projects.

Compatible with Orin Module

Supports connecting to N-VIDIAJetson Orin Nano moduleandJetson Orin NX module

connects to CSI cameras

Onboard 2-ch CSI camera ports for AI applications such as face recognition, road sign recognition and license plate recognition

* Note: the adapter cables are required for connecting the cameras.

5 × USB ports

4 × Type-A + 1 × Type-C

Supports connecting to more peripherals, USB 3.2 Gen 2 ports for data transmission
up to 10Gbps, and the Type-C port can be used for system burning

* for reference only, the Orin module and the cooling fan are NOT included.

color-coded 40PIN GPIO header

color-coded header pins to differentiate IO resources such as I2C, SPI, I2S, UART, GPIO, etc.

Flexible storage and wireless expansion

Onboard 2 × M.2 Key M ports for easy connecting Solid State Drives and 1 × M.2 Key E interface for connecting wireless NIC, which can reduce cable connection

* for reference only, the Solid State Drive and wireless network card are NOT included.

Onboard resources

1. 260PIN DO-DIMM socket
   for connecting Jetson Orin Nano/NX module
2. 12PIN header
   Adapting pins for power supply, reset button, force recovery setting, serial port debug, auto power-up enable and power indicator functions
3. Power button
4. 2 × 22PIN CSI camera interfaces
   2 × MIPI CSI 4-lane camera interfaces
5. DC Power jack
   Supports wide range 9V~19V power supply, compatible with 5.5 × 2.5mm male plug
6. HDMI display interface
   HDMI output

7. 4 × USB 3.2 Gen2 Type-A ports
   Supports up to 10Gbps data transmission
8. RJ45 Gigabit Ethernet port
9. USB Type-C port
   for system burning and data communication
10. 40PIN header
11. 4PIN PWM fan header
12. M.2 Key E
    for connecting wireless NIC
13. 2 × M.2 Key M
    for connecting NVME solid state drives
14. RTC backup battery header
    PH1.25 2PIN

Outline dimensions


Package Content

Weight:0.093 kg

1. JETSON-ORIN-IO-BASE-H x1
2. Screws pack x1
