Description
IMX708 12MP High Resolution Camera Module, Supports High Dynamic Range, Options For FOV And Night Vision FunctionIMX708 12MP Auto-Focus Camera
Night Vision Version Available | Compatible with Raspberry Pi series boards
Features at a glance
This camera series adopts the Official Raspberry Pi Camera Module 3 Sensor Assembly based on IMX708 sensor, compatible with Raspberry Pi boards. Four versions are available: Standard version (75° FOV), Standard Night Vision version (75° FOV), Wide Angle version (120° FOV), and Wide Angle Night Vision version (120° FOV)
TheIMX708 Camera NoIRis the night vision version, which will take curious reddish pictures by daylight due to the lack of an IR filter, supports night vision when used with IR fill light.
With 12 MP high resolution, this camera series offers the following key enhancements compared to the IMX219 8MPCamera Module V2:
- Enhanced imaging performance in low-light conditions
- High Dynamic Range (HDR) support for better photo quality
- Supports auto-focus, more free focus control
Version Options
IMX708-75 Camera
Standard version with 75° FOV
IMX708-120 Camera
Wide angle version with 120° FOV
IMX708-75 Camera NoIR
Night vision version with 75° FOV
IMX708-120 Camera NoIR
Night vision Wide angle version with 120° FOV
SpecificationsModelIMX708-75 CameraIMX708-75 Camera NoIRIMX708-120 CameraIMX708-120 Camera NoIRSensorIMX708PIXELS11.9MP (4608 × 2592)FOCUSINGI2C controller with auto-focus supportCMOS size7.4mmApertureF1.8F2.2Focal length4.74mm2.75mmField of view75°120°Night Vision function-Support *-Support *Devices SupportCompatible with all Raspberry Pi boards
(Specific cable is required to connect to Raspberry Pi 5 / Raspberry Pi Zero series)Note* Infrared LED is required to provide Infrared lighting for night vision, please purchase separately.12MP High Resolution
Adopts IMX708 Sensor, Highly Detailed & Realistic Imaging
Flexible Auto-Focus
Take photos smoothly without jamming, flexible and free
Working with Raspberry Pi
directly connects to different Raspberry Pi variants including 4B/3B+/3A+/3B/2B/B+/A+,
An extra FPC cable is required for Raspberry Pi 5 / Zero / Zero 2 W series
Standard version / Night vision version
Connecting with Raspberry Pi 4B
Connecting with Raspberry Pi 5
Connecting with Raspberry Pi Zero 2 W
Wide angle version / Night vision Wide angle version
Connecting with Raspberry Pi 4B
Connecting with Raspberry Pi 5
Connecting with Raspberry Pi Zero 2 W
* for reference only,Raspberry Pi 4B,Raspberry Pi 5,Raspberry Pi Zero 2 W, andyellow FPCare NOT included.Product Show
Standard version / Night vision version
Wide angle version / Night vision Wide angle version
outline dimensions
Standard version / Night vision version
Wide angle version / Night vision Wide angle version

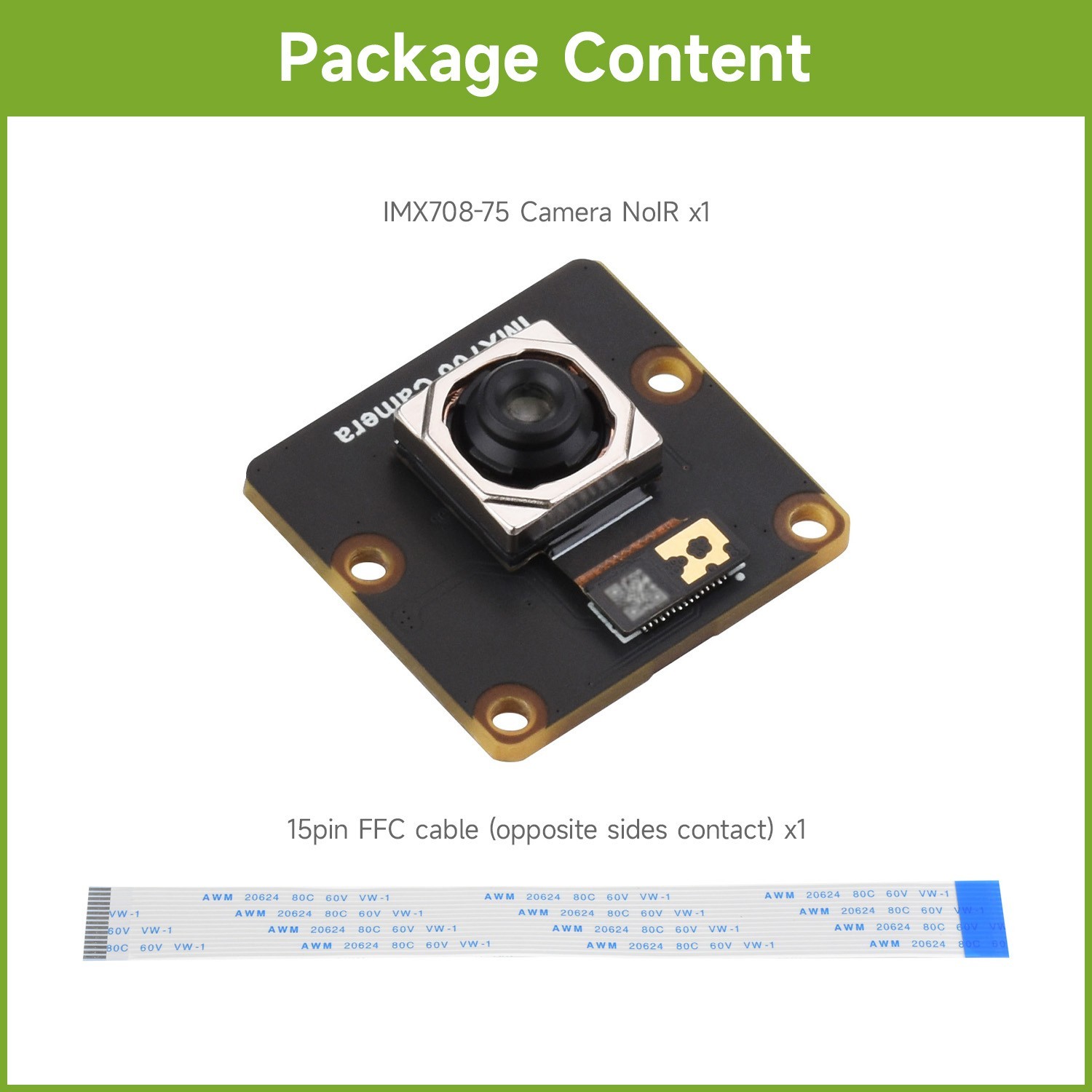

Resources & ServicesPackage Content
Weight:0.013 kgIMX708-75 Camera
- OPTIONSIMX708-75 Camera x1
- 15pin FFC cable (opposite sides contact) x1
12IMX708-120 Camera
- OPTIONSIMX708-120 Camera x1
- 15pin FFC cable (opposite sides contact) x1
12
