Description

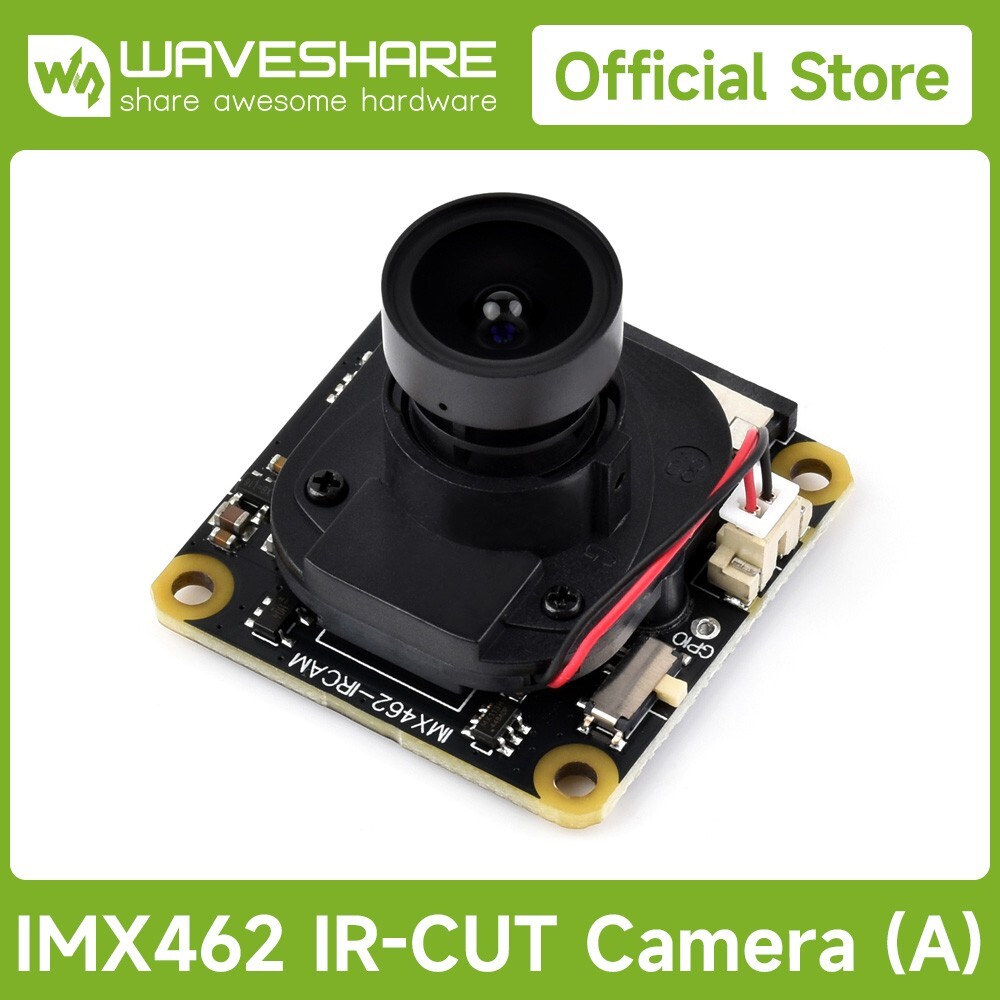

IMX462 2MP IR-CUT Camera, 90° DFOV, Starlight Camera Sensor, Fixed-Focus, Compatible with Raspberry Pi series boards IMX462 Starlight Camera

2MP | IR-CUT  | 90° DFOV 

Compatible with Raspberry Pi series boards

Specifications Sensor IMX462 CMOS size 1/2.8 inch PIXELS 2MP (1920 × 1080) APERTURE F2 FOCAL LENGTH 3.95mm Diagonal FIELD OF VIEW 90° CAMERA TYPE Color FOCUSING Fixed focus DISTORTION < 5% SHUTTER Rolling Shutter
Starlight Camera

capable of capturing clear images even in Low Light Conditions

Built-in IR-CUT

Onboard switch and GPIO pad for switching or GPIO software control of IR-CUT function

Correct Color Deviation of Infrared Camera During the Daytime, Better Imaging Effect

Works with IR fill light for night vision imaging

Note: The IR fill light needs to be purchased separately. It is recommended to use an 850nm fill light.

Working with Raspberry Pi

direct connect to Raspberry Pi different variants including 5 / 4B / 3B+ / 3A+ / 3B / 2B / B+ / A+ , supports connecting to Zero / Zero 2 W series

* for reference only, the Raspberry Pi 5and Raspberry Pi 2Ware NOT included.
outline dimensions Resources & Services

Package Content

Weight:0.012 kg

IMX462 IR-CUT Camera (A) x1
