Description
ESP32-C6 2.06inch AMOLED Touch Watch Development Board, 410×502 Pixels, RISC-V 32-bit Processor, Supports WiFi 6 / Bluetooth 5 / Zigbee, ESP32 With Display ESP32-C6 2.06inch AMOLED Watch
Development Board

Embedded with CO5300 Display Driver and FT3168 Capacitive Touch Chip

Version Options

Standard version, without Lithium Batt.

ESP32-C6-Touch-AMOLED-2.06
Comes with a MX1.25 Lithium Batt.
(can be installed inside the case)

Features

TheESP32-C6-Touch-AMOLED-2.06is a high-performance, wearable watch-style development board designed by Waveshare. Based on the ESP32-C6 microcontroller, it integrates a 2.06inch AMOLED capacitive touch display, 6-axis IMU, RTC chip, audio codec chip, power management IC, and so on. Comes with a custom-designed case with a smartwatch-like appearance, making it ideal for prototyping and functional verification of wearable applications.

• Adopts ESP32-C6 module with RISC-V 32-bit processor, up to 160MHz frequency
• Integrated WiFi 6, Bluetooth 5 and IEEE 802.15.4 (Zigbee 3.0 and Thread) wireless communication, with superior RF performance
• Built-in 512KB HP SRAM, 16KB LP SRAM, 320KB ROM, and 16MB Flash memory
• Type-C connector, improving device compatibility, easier to use
• Onboard 2.06inch AMOLED capacitive touch display for clear color picture display, 410 × 502 resolution, 16.7M color
• Built-in CO5300 display driver and FT3168 capacitive touch chip, using QSPI and I2C communication respectively, effectively saving the IO resources
• Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture, counting steps, etc.
• Onboard PCF85063 RTC chip, powered by Lithium Batt. through AXP2101 chip for uninterrupted power supply
• Onboard PWR and BOOT programmable buttons for easy custom function development
• Onboard 3.7V MX1.25 Lithium Batt. recharge/discharge header
• Onboard reserved pads of 1 × I2C, 1 × UART and 1 × USB interfaces, for connecting peripherals and debugging
• Adopts AXP2101 IC for efficient power management, supports multiple voltage outputs, BATT charging, BATT management, and BATT life optimization, etc.
• Adopts AMOLED screen, featuring advantages of high contrast, wide viewing angle, rich colors, fast response, thinner design, and low power consumption, etc.

AMOLED parameters Display Panel AMOLED Display Size 2.06 inch Resolution 410 × 502 pixels Display Colors 16.7M Brightness 600 cd/㎡ Contrast Ratio 100000:1 Communication Interface QSPI Driver IC CO5300 Touch Supported Touch IC FT3168
Small Size, Touch More Possibilities

Suitable For Various Smart Device Development, and Can Realize Human-Computer Interaction Function. Supports connecting to a Batt. for independent operation

Adopts AMOLED screen

The next-generation display technology, compared to traditional LCD displays, the AMOLED screen features precise light-control capability, representing more delicate colors, more picture details, and more vivid videos and images

178° wide viewing angle

Excellent Display Performance, 16.7M color, wide viewing angle

Onboard audio codec

Onboard ES8311 audio codec chip and ES7210 echo cancellation circuit. Meet daily audio application scenarios

Supports AI Speech Interaction

Allows access to online large model platforms such as DeepSeek, Doubao, etc.

Supports ESP-IDF, Arduino IDE

Comprehensive SDK, dev resources, tutorials to help you easily get started

Wi-Fi 6 and BLE 5 support

supports Wi-Fi 6, Bluetooth 5, and IEEE 802.15.4 (Zigbee 3.0 and Thread), Its Bluetooth Low Energy subsystem supports Bluetooth 5 (LE) and Bluetooth Mesh

Wearable Design

Detachable watch straps for easy replacement and convenient matching with different styles

What's On Board
Pin definition
outline dimensions Resources & Services

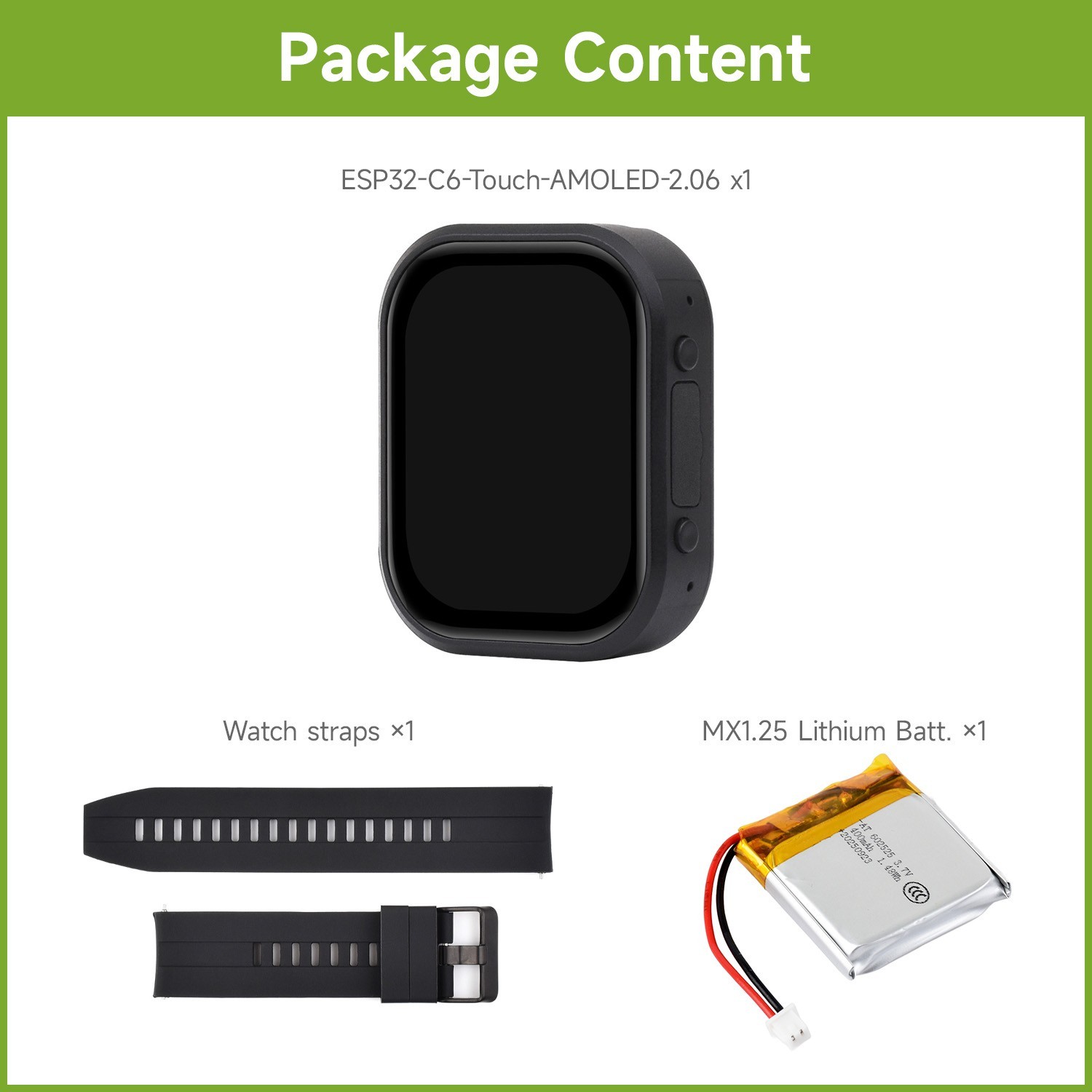

Package Content

Weight:0.032 kg

* the 3.7V Lithium Batt. is optional.

1. ESP32-C6-Touch-AMOLED-2.06 x1
2. Watch straps ×1
3. OPTIONSMX1.25 Lithium Batt. ×1

1 2 3
