Prohibited by the module manufacturer D-Robotics, we're not allowed to ship this product, or to provide any tech support, to the following countries/regions: Iran, North Korea, Cuba, Sudan, Syrian.D-Robotics RDK X3 Development Board, Quad-core ARM Cortex-A53 Processer, 5Tops Edge Inference Capabilities, Options For 2GB/4GB RAMRDK X3 Development Board

The RDK X3 series encompasses the RDK X3 and RDK X3 Module, delivering exceptional 5Tops edge inference capabilities. Their standardized dimensions and interfaces seamlessly integrate with generic products, empowering developers to rapidly deploy intelligent products and robotic solutions.

Kit Selection GuideKitRDK X3 board onlyBasic KitDeveloper KitRDK X3 2GB/4GB√√√Basic Kit Accessories Pack:
(RDK Case A, UART module, 64GB TF card,
card reader, 4PIN cable,
5V 3A Type-C Power Supply)√√IMX219-77 Camera + CSI Adapter√

RDK X3 2GB/4GB Basic Kit
This kit includes RDK X3 (options for 2GB/4GB RAM), with accessories pack including RDK Case A, UART Module, 64GB TF Card, Card Reader, 4PIN cable, and 5V 3A Type-C Power Supply (with US/EU/UK plug adapters), to help users get started quickly.

RDK X3 2GB/4GB Developer Kit
On the basis of the Basic Kit, this kit is equipped withIMX219-77 Camera(8MP, 79.3° FOV, with FFC cable) and RDK X3 CSI Adapter, suitable for applications that require image capture and visual development.

SpecificationsCPUQuad-core ARM® Cortex®A53@1.5GBPU ™
Brain Processing UnitDual-core Bernoulli Arch, 5TopsRAM2GB/4GB LPDDR4 RAMStorageTF card slotMultimediaH.265 (HEVC) Encoding and Decoding Main profile, L5.14K@60fps, JPEG Encoding and Decoding 16MpixelsSensorMIPI CSI 2lane x 2USB HostUSB Type-A 3.0 x 1, USB Type-A 2.0 x 2USB DeviceMirco USB 2.0 x 1Display1 x HDMI1.4 (up to 1080p60)Wired networkRJ45 Gigabit Ethernet portWireless networkWi-Fi 2.4/5GHz with 802.11 b/g/n support, Bluetooth 4.2Others40PIN GPIO × 1 (PCM signal aligned to Raspberry Pi); Debug UART x 1Power inputUSB Type-C port, 5V 3ASystem supportUbuntu 20.04/22.04Dimensions85 × 56 × 20 (mm)Operating Temperature-25°C ~ 95 °CCertificationsCE, MIC, SRRCWhat's On Board

100+ Robot development kits to help accelerate product assembly

We provide a variety of development kits, ranging from various sensors to multiple controller modules, and diverse forms of robots (unmanned vehicles, wheeled robots, robotic arms, etc.), to help expedite the implementation of your robot solutions.

100+ open-source algorithms and applications to accelerate comprehensive development

A selection of applications from various categories within NodeHub, ranging from sensor configuration to robot application development are available. Everything you need is here, so feel free to explore and use them.

Traffic Light Detection

Visual-inertial Odometry

Humanoid Robotic Soccer Control

Toy Car Line-following Control

Deep Learning Line-following Car

RDK Platform Architecture

RDK Platform encompasses a diverse range of hardware, software, algorithms, solutions, and development tools

NodeHub: Robot Application Center

Making Robotics Development as Simple as Building with Blocks

Outline dimensions
Certificate of Authorization

Waveshare is the official distributor of D-Robotics RDK series and related products

Resources & ServicesPackage Content

Weight:0.145 kg

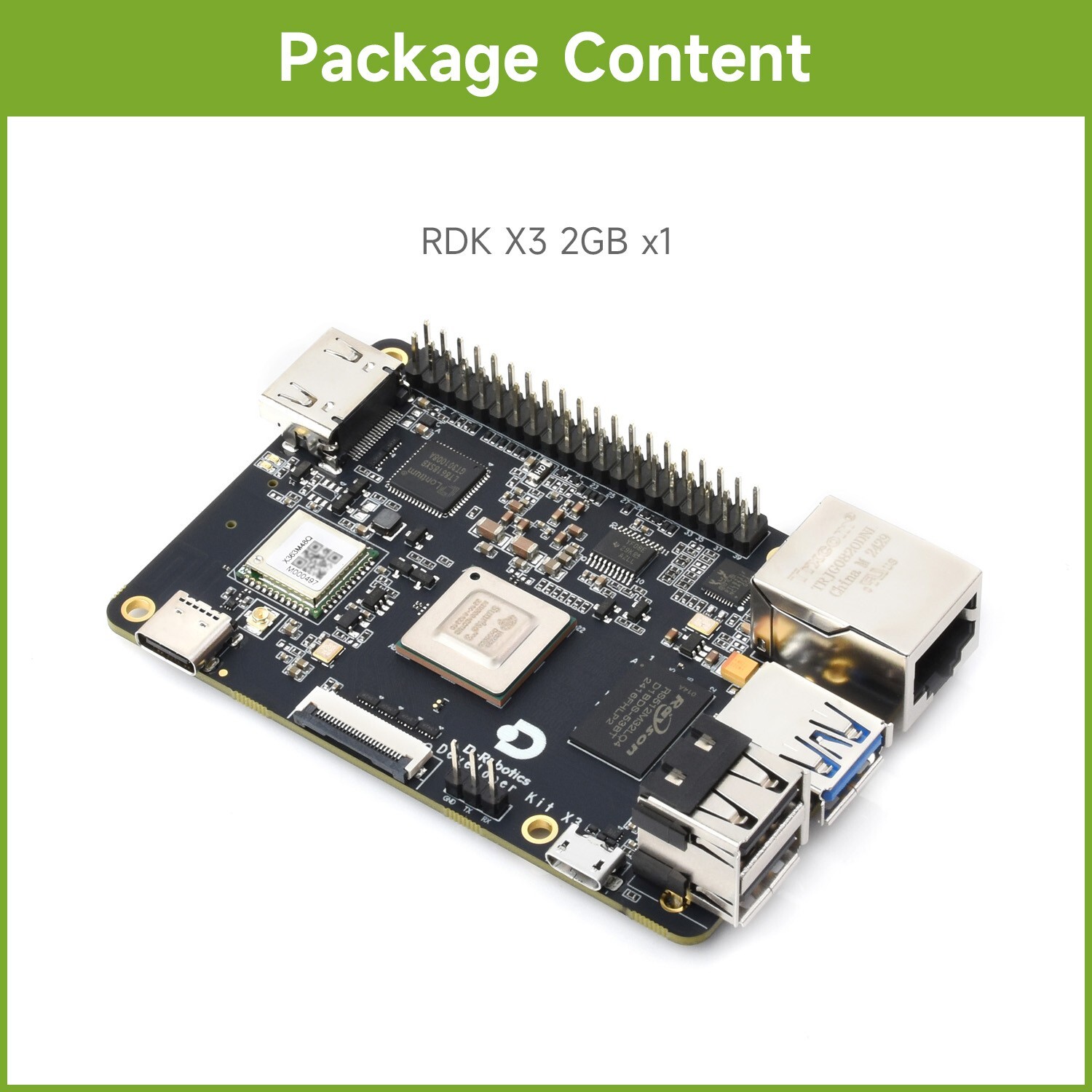

RDK X3

OPTIONSRDK X3 x1

RDK X3 2GB/4GB Basic Kit

1. OPTIONSRDK X3 2GB/4GB x1
2. RDK-Case-A (with accessories) ×1
3. TF card 64GB x1
4. Card reader x1
5. UART module x1
6. 4PIN cable ×1
7. 5V 3A Type-C power supply (with US/EU/UK plug adapters) ×1

RDK X3 2GB/4GB Developer Kit

1. OPTIONSRDK X3 2GB/4GB x1
2. RDK-Case-A (with accessories) ×1
3. UART module x1
4. 4PIN cable ×1
5. IMX219-77 Camera (with FFC cable) ×1
6. TF card 64GB x1
7. Card reader x1
8. X3 Pi CSI Adapter x1
9. 5V 3A Type-C power supply (with US/EU/UK plug adapters) ×1
