Description
23.8/27inch Capacitive Touch Monitor, 1920×1080 Full HD, Optical Bonding Toughened Glass Panel, HDMI display interface, 10-Point touch23.8/27inch Capacitive Touch Monitor
High Resolution | Multi-touch | Full Color
- Size23.8/27″
- Resolution1920 × 1080
- Display InterfaceHDMI
- Display Color16.7M
- Viewing Angle178°
- Touch TypeCapacitive
- Touch PortType-C
- Touch Points10-Point
- Touch PanelToughened Glass
- Touch Panel TechOptical Bonding
- Temperature Range0℃ ~ 60℃
- OSD MenuBrightness/Contrast
- SoundHi-Fi Speaker
- EnclosureAluminum Alloy
- VESA Wall Mount100 × 100 (mm)
Version Options
23.8inch FHD Monitor
27inch FHD Monitor
Device & System Support
Raspberry PiSupports Raspberry Pi OS, 10-point touch, driver free
Supports Ubuntu / Kali / WIN10 IoT, single point touch, driver free
Supports Retropie, driver free
* the mounting holes inside the case are only compatible with Raspberry Pi 4B and Raspberry Pi 5
Jetson NanoSupports Ubuntu, single point touch, driver free
PCSupports Windows 11 / 10 / 8.1 / 8 / 7, 10-point touch, driver free
Connection Examples
Working with Raspberry Pi 5
Working with Raspberry Pi 4
Working with Raspberry Pi CM5 / CM4
*for using with CM5 / CM4, an extra adapter board is style="box-sizing: border-box; margin: 0px; padding: 0px;">
Working with Jetson Orin
Working with mini PC
*for reference only, the above controller boards or hosts are NOT included
Configurable Display Orientation
1920 × 1080 resolution (H × V),
Change the software config for portrait display
Wide viewing angle IPS display panel
Excellent Display Performance, Wide viewing angle up to 178°
Supports FHD resolution
1920 × 1080 resolution, clearer display
Capacitive 10-point touch
- up to 10-point touch, depending on the operating system
- up to 6H hardness toughened glass panel
- Optical Bonding, display well and dustproof
Dual-track Speaker
Ferrite Hi-Fi Speaker, Stereo Sound Effect, Wider Sound Range, Better Sound Quality
*for reference only, the Raspberry Pi is NOT included
Reserved airflow ventsAll-In-One Design
The Raspberry Pi Can Be Installed Inside To Make It As An All-In-One Mini-Computer
*for reference only, the Raspberry Pi is NOT included
Installation Methods
Supports multiple mounting options to meet the requirements of different application scenarios
Flush Mount
Wall Mount
Desktop Mount
Suspended Mount
* for reference only, the mounting bracket is NOT included, please choose the mounting method according to your needs
Interface Introduction
Application Scenarios
Suitable for commercial displays, smart device control, and human-machine interaction
Commercial Display
Smart Guide
Smart Home Terminal
IoT
DIY Device
AI Interactive Display
Product showoutline dimensions
23.8inch FHD Monitor
27inch FHD Monitor
Support touch screen customization
Support the following ways to customize the touch screen display in bulk order
Over a decade
Waveshare grows with display
* Waveshare has been focusing on display design for over 15 years.

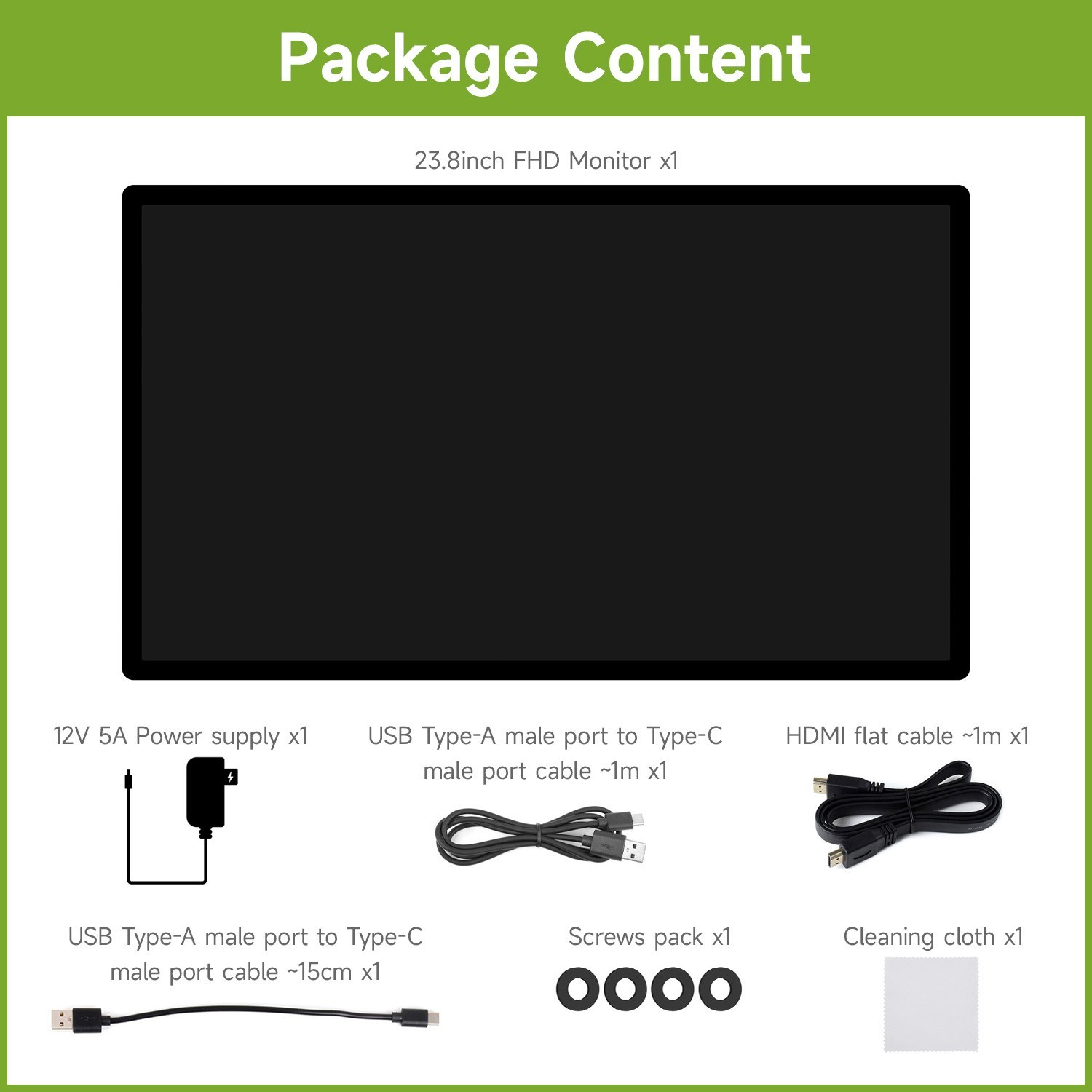

Resources & ServicesPackage Content
Weight:4.262 kg
23.8inch FHD Monitor
- 23.8inch FHD Monitor x1
- OPTIONS12V 5A Power supply x1
- USB Type-A male port to Type-C male port cable ~15cm x1
- USB Type-A male port to Type-C male port cable ~1m x1
- HDMI flat cable ~1m x1
- Cleaning cloth x1
- Screws pack x1
27inch FHD Monitor
- 27inch FHD Monitor x1
- OPTIONS12V 5A Power supply x1
- USB Type-A male port to Type-C male port cable ~15cm x1
- USB Type-A male port to Type-C male port cable ~1m x1
- HDMI flat cable ~1m x1
- Cleaning cloth x1
- Screws pack x1
