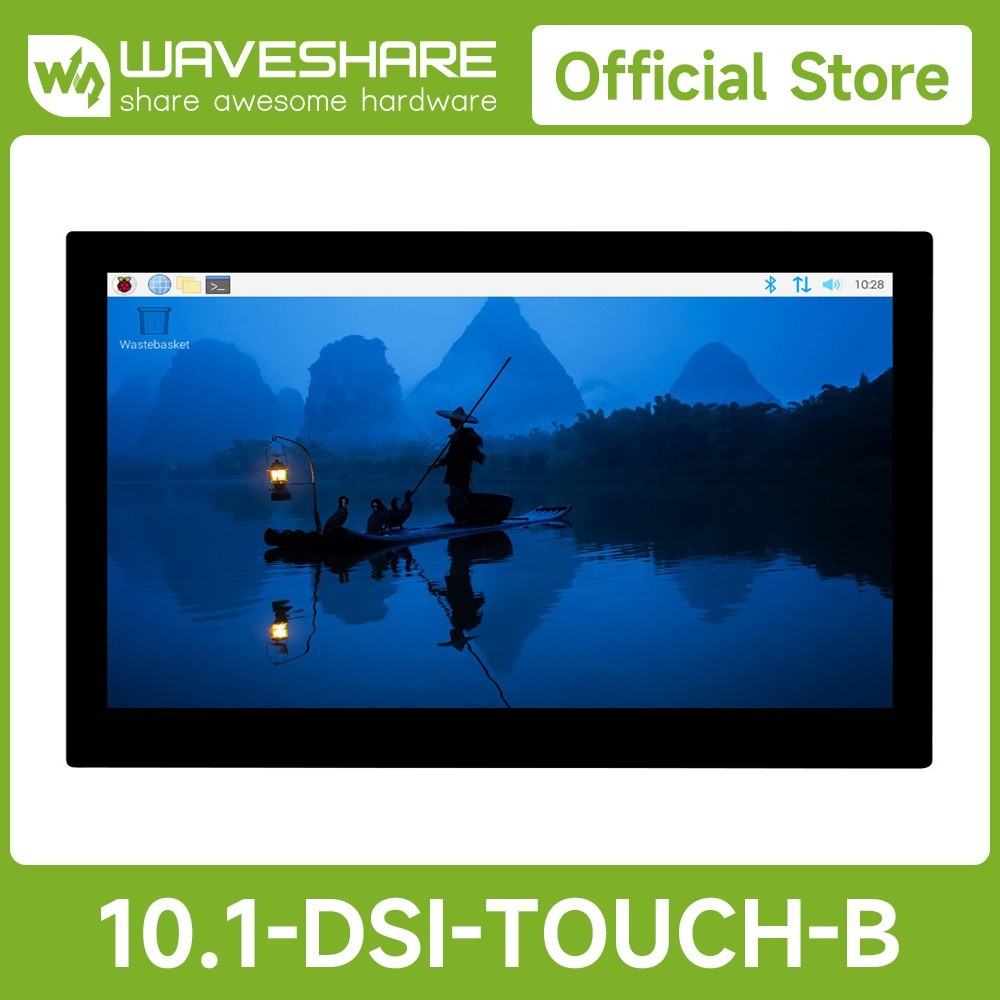

Waveshare 10.1inch DSI Capacitive Touch Display Wide Color Gamut 720×1280 IPS
Price: CN $89.43
Description
10.1inch DSI Capacitive Touch Display, Wide Color Gamut, 720 × 1280, IPS Panel, Supports 10-Point Touch, Toughened Glass Panel10.1″ Wide Color Gamut DSI Touch Display
  • Size10.1″
  • Resolution720 × 1280
  • Display InterfaceDSI
  • Display PanelIPS
  • Viewing Angle170°
  • Touch TypeCapacitive
  • Touch Points10-Point
  • Touch PanelToughened Glass
  • Touch PortI2C
  • Raspberry PiSupports Raspberry Pi OS, 10-point touch
    RK3576Supports Buildroot / Debian / Ubuntu / Android and other systems, 10-point touch
    RK3506Supports Buildroot / Ubuntu and other systems, 10-point touch
    ESP32-P4Supports LVGL GUI programs, 10-point touchconnection examples

    Connecting to Raspberry Pi 5

    * Please connect the FFC cable as shown above, and power the LCD through the GPIO 5V pin

    Connecting to Raspberry Pi 4B


    * Please connect the FFC cable as shown above, and power the LCD through the GPIO 5V pin

    Connecting to ESP32-P4-NANO


    Connecting to Luckfox Omni3576


    Connecting to Luckfox Lyra


    * for reference only, the above controller boards or hosts are NOT included


    IPS Display Panel

    Excellent Display Performance With 170° Wide Viewing Angle

    Wide Color Gamut LED technology

    Wider Color Gamut, More Pure Chroma

    10-Point Capacitive Touch
    1. up to 10-point touch, depending on the operating system
    2. up to 6H hardness toughened glass panel
    interface definition

    Supports backlight adjustment via software

    outline dimensions
    Support touch screen customization
    Over a decade
    Waveshare grows with display

    * Waveshare has been focusing on display design for over 14 years.

    Resources & ServicesPackage Content

    Weight:0.623 kg

    1. 10.1-DSI-TOUCH-B ×1
    2. MIPI-DSI-Cable-12cm x1
    3. MX 1.25 2PIN to 2.54 3PIN cable x1
    4. FFC 22PIN cable ~200mm (opposite sides) x2
    5. MX1.25 2PIN to MX1.25 4PIN cable ~150mm x1
    6. Screws pack x1
    123456
