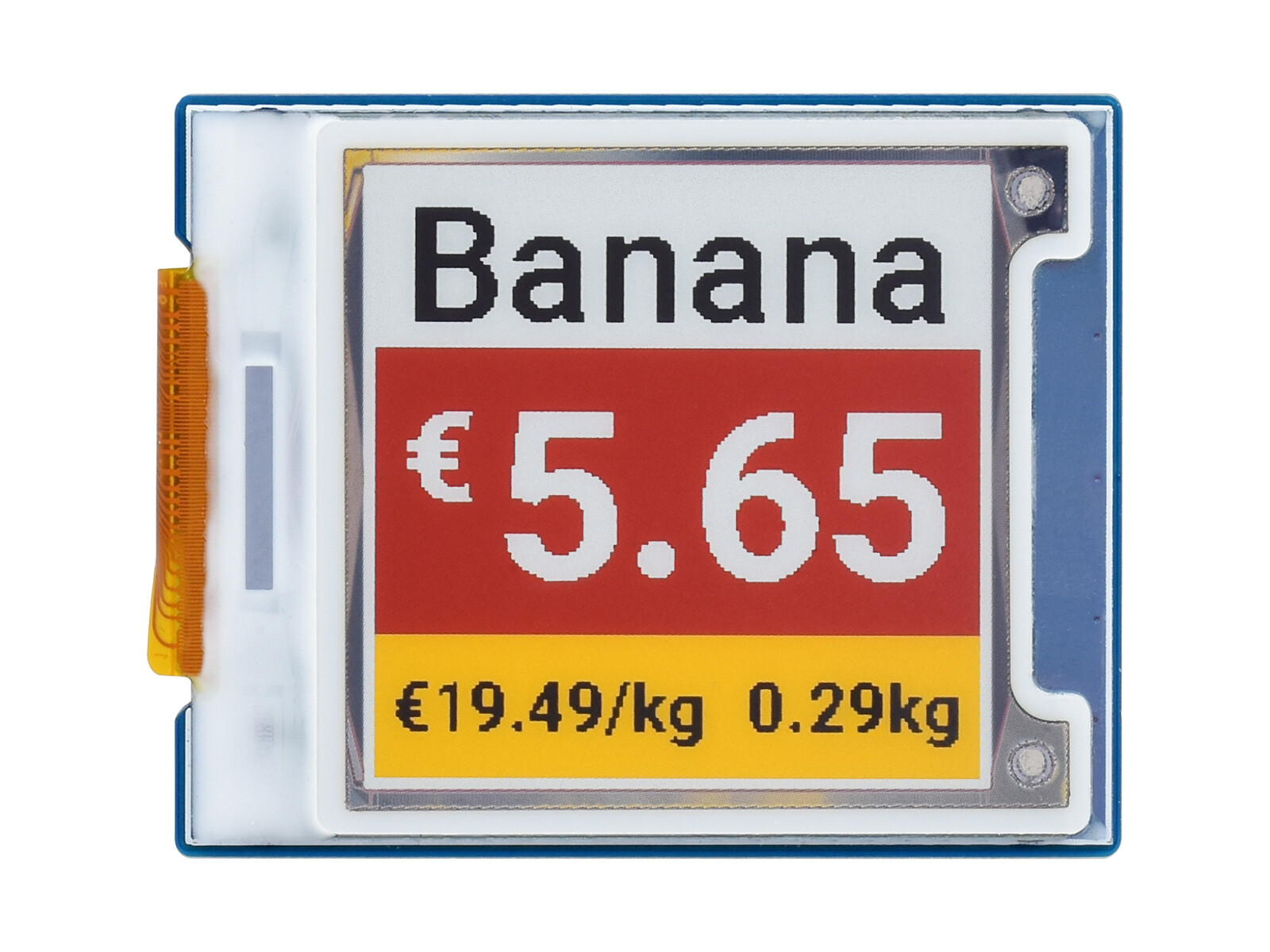

1.64inch Square E-Paper Module (G), 168 × 168, Red/Yellow/Black/White1.64″ E-Paper Module (G)

Low Power, Wide Viewing Angle, Paper-Like Effect Without Electricity

Ideal for price tags, shelf labels, industrial instruments...

Features At A Glance

• No backlight, keeps displaying last content for a long time even when power down
• Ultra low power consumption, basically power is only required for refreshing
• SPI interface, for connecting with controller boards like Raspberry Pi/Jetson Nano/Arduino/STM32, etc.
• Onboard voltage translator, compatible with 3.3V/5V MCUs
• Comes with development resources and manual(driver board schematic, examples for Raspberry VOLTAGE3.3V/5VDISPLAY SPI, 4-wire SPIGREY SCALE2OUTLINE DIMENSIONS47 × 38mmFULL REFRESH TIME12sDISPLAY SIZE29.568 × 29.568mmREFRESH POWER<57mW (typ.)DOT PITCH0.176 × 0.176mmSTANDBY CURRENT<0.01uA (almost none)RESOLUTION168×168 pixelsVIEWING ANGLE>170°Advantages Of EINK

  E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper.
  E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect.


  Onboard SPI Control Interface

  For Use With Controller Boards Like Raspberry Pi/STM32/Arduino


  VCCPower (3.3V / 5V input)GNDGroundDINSPI MOSI pinCLKSPI SCK pinCSSPI chip selection, low activeDCData/Command selection (high for data, low for command)RSTExternal reset, low activeBUSYBusy status output pinOnboard Voltage Translator

  Compatible With 3.3V / 5V MCUs


  Application Examples

  Suitable For Price Tags, Asset/Equipment Tags, Shelf Labels, Conference Name Tags...

  PACKAGE CONTENT


  Weight:0.02 kg

  1. 1.64inch e-Paper Module (G) x1
  2. PH2.0 20cm 8Pin x1
