Fiber Patch and Splice Enclosure
Description

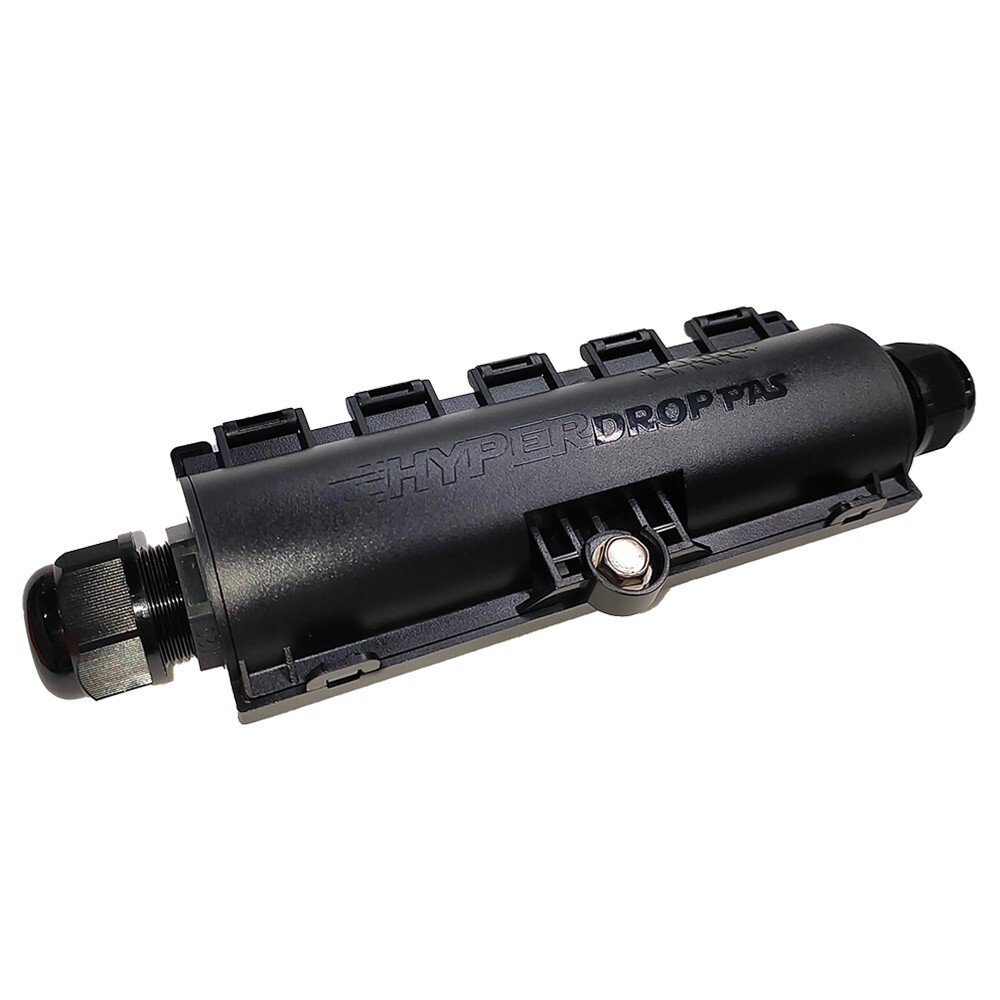

This Mini IP68-rated patch and splicing enclosure is unique, small and easy to install in a variety of environments, such as underground burial, pole mount, wall mount or wire suspension. The all-plastic housing is made from an ABS and poly-carbonate (PC) blend with UV inhibitors to ensure a long service life in a variety of conditions.
- Ideal for splicing and coupling fiber, twisted pair and other low-voltage cables
- IP68-rated for outdoor installation
- Easy-to-open design with water-tight latching
- Includes easy-to-see fiber splicing tray
- Included grommets accommodate a variety of cable sizes and constructions
- Compatible with fiber couplers, fiber splice connections, keystones and other barrel-style couplers
Includes:
- Universal mounting brackets with hardware (M4x6mm screws with red threadlocker (2 ea)
- Drywall anchors with M4x25mm self-tapping wood screws (2 ea)
- M4x12mm screws with blue threadlocker (2 ea)
- M4 wingnuts (2 ea)
- Internal splice tray (installed in enclosure)
- Type A fusion splicing tubes (2 ea)
- Large zip ties: 4.5x192mm (4 ea)
- Small zip ties: 2.5x100mm (2 ea)
- Cable grommets: 3mm round (installed in enclosure) (2 ea), 5mm round (2 ea), 8mm round (2 ea). 11mm round (2 ea)
- Simplex SC/APC coupler
- Duplex LC/UPC coupler
- Coax barrel-style coupler
- CAT6 keystone coupler
