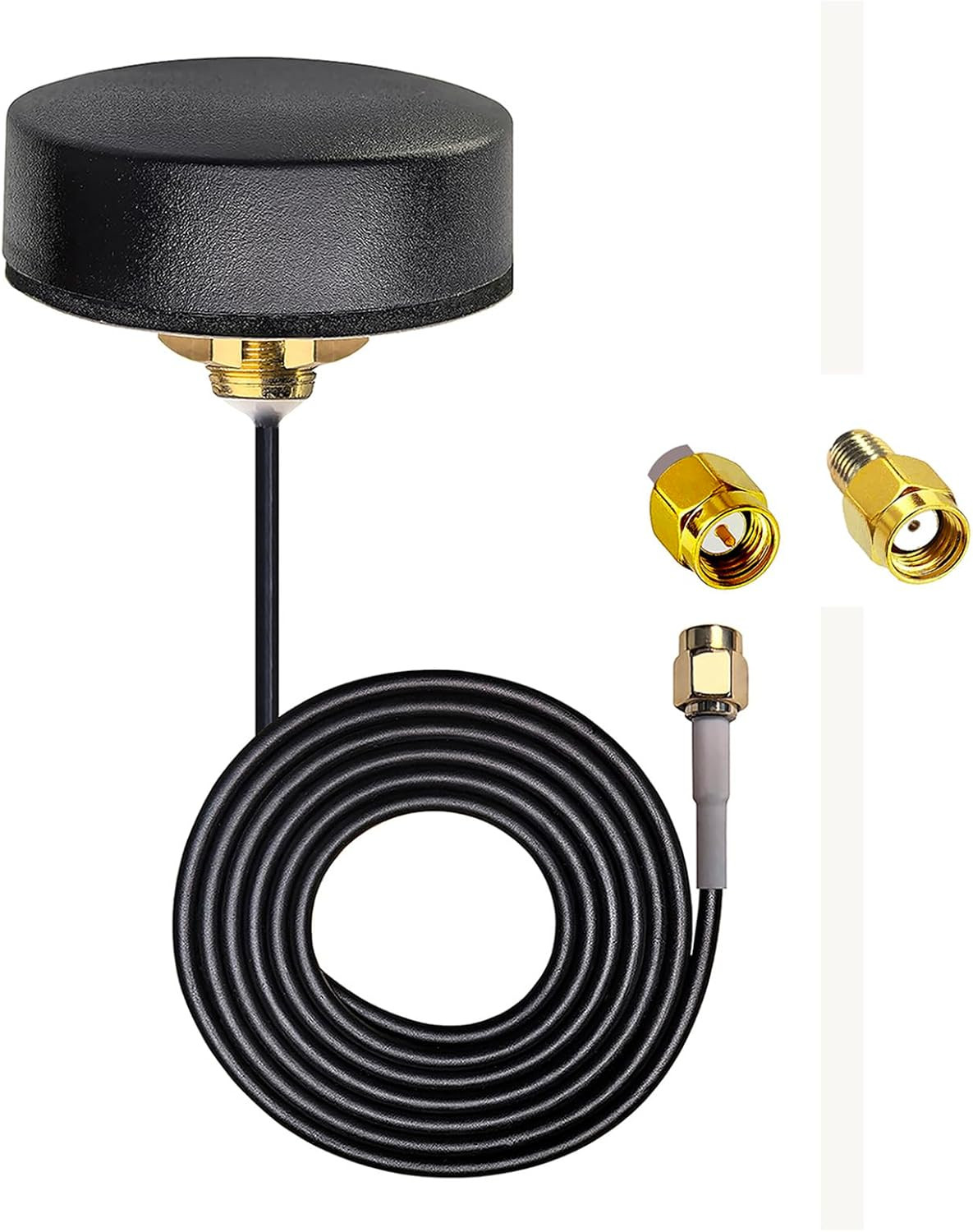

Product description Waterproof IP66

This antenna offers robust protection against the elements with its IP66 waterproof rating. Whether you need it for indoor applications or outdoor installations, this antenna is up to the task. Its adaptable nature makes it suitable for a wide range of environments, ensuring reliable performance in various settings.

Stable and Reliable Screw Mounting

Our antenna features a convenient screw mounting system, ensuring a stable and reliable connection for your devices. This easy-to-install design allows for secure placement in various indoor and outdoor settings, making it ideal for vending machines, meter boxes, equipment sheds, and charging stations. The screw mounting option provides flexibility in positioning while maintaining a strong signal for your 3G/4G LTE needs.

Hiding cable installation

Screw installation can hide the wire in your device. That not only enhances the overall appearance but also protects the connection from potential damage. Whether you're setting up indoors or outdoors, this feature ensures a sleek, unobtrusive presence while maintaining optimal performance.

Frequency Range 2400-2500MHz,5100-5800MHz Efficiency up to 60% VSWR < 2.0 Cable Length 2-meter / 6ft Net Weight 42g Connector SMA male connector （+ RP-SMA adaptor） Dimension Φ46*16 mm Waterproof IP66 Direction Omni-directional Impedance 50 ohm Mounting Screw Diameter M12 (11.76mm-11.95mm) Operating Temperature -35°С ~ +80°С Storage Temperature -40°С ~ +85°С Package contains 1 x Antenna，1 x RP-SMA adaptor Screw Mounting Antennas Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Price $12.99$12.99 $12.99$12.99 $13.99$13.99 $16.99$16.99 $16.99$16.99 $39.99$39.99 Frequency Range 2400-2500MHz, 5100-5800MHz 2400-2500MHz, 5100-5800MHz 2400-2500MHz, 5100-5800MHz 698-960 MHz, 1710-2700 MHz 698-960 MHz, 1710-2700 MHz 698-960 MHz, 1710-2690 MHz Antenna Isolation -- -- -- -15dB -15dB -25dB Cable Length 1-meter / 3ft 2-meter / 6ft 3-meter / 10ft 1-meter / 3ft 1-meter / 3ft 2-meter / 6ft SMA Type SMA male SMA male SMA male SMA male SMA male SMA male Waterproof IP66 IP66 IP66 IP66 IP66 IP66

• Frequency Range: 2.4G(2400-2500 MHz),5G/5.8G(5100-5800MHz). SMA male connector, 2-meter/ 6ft cable. Efficiency up to 60%. Package contains: 1 x Antenna, 1 x RP-SMA male connector adapter;
• IP66 waterproof effectively shielding the antenna (including screw hole) from water jet damage from all directions. Compatible with indoor/outdoor vending machine, electric meter box, equipment shed and other venues requiring antenna performance with specific installation height demands;
• Easy cable hiding during installation, antenna performance remains unaffected even when mounted on metal surfaces;
• Compatible with truck RV van trail rear view camera reverse camera backup camera industrial router IoT gateway modem M2M terminal remote control HDMI extender FPV drone racing quadcopeter controller.
• Compatible with IoT telemetry oil gas signage kiosks vending machines utility control panels smart metering smart cities and residential applications;
