WMMG-7-38-5SP-2TS9 - 2G/3G/4G/5G Omni Directional MiMo Wall / Mast Antenna Twin 5m Cable TS-9 Bundle WMMG-7-38-5SP-2TS9 - 2G/3G/4G/5G Omni Directional MiMo Wall / Mast Antenna Twin 5m Cable TS-9 Bundle
The 5G (3500Mhz) updated WMMG antenna is a 2×2 MiMo signal boosting antenna for 3G ,4G and some 5G networks with high gain across 1710-2170 MHz Incorporating two separately fed wideband elements in a single housing the WMMG is equipped to provide client-side MiMo and diversity support for 3G and 4G networks.
- Supports 2×2 MiMo 2G/3G/4G/and 5G(700-3500MHz)
- Wall or mast mount
- Twin Full-length 5m cables
- Rated: IP65

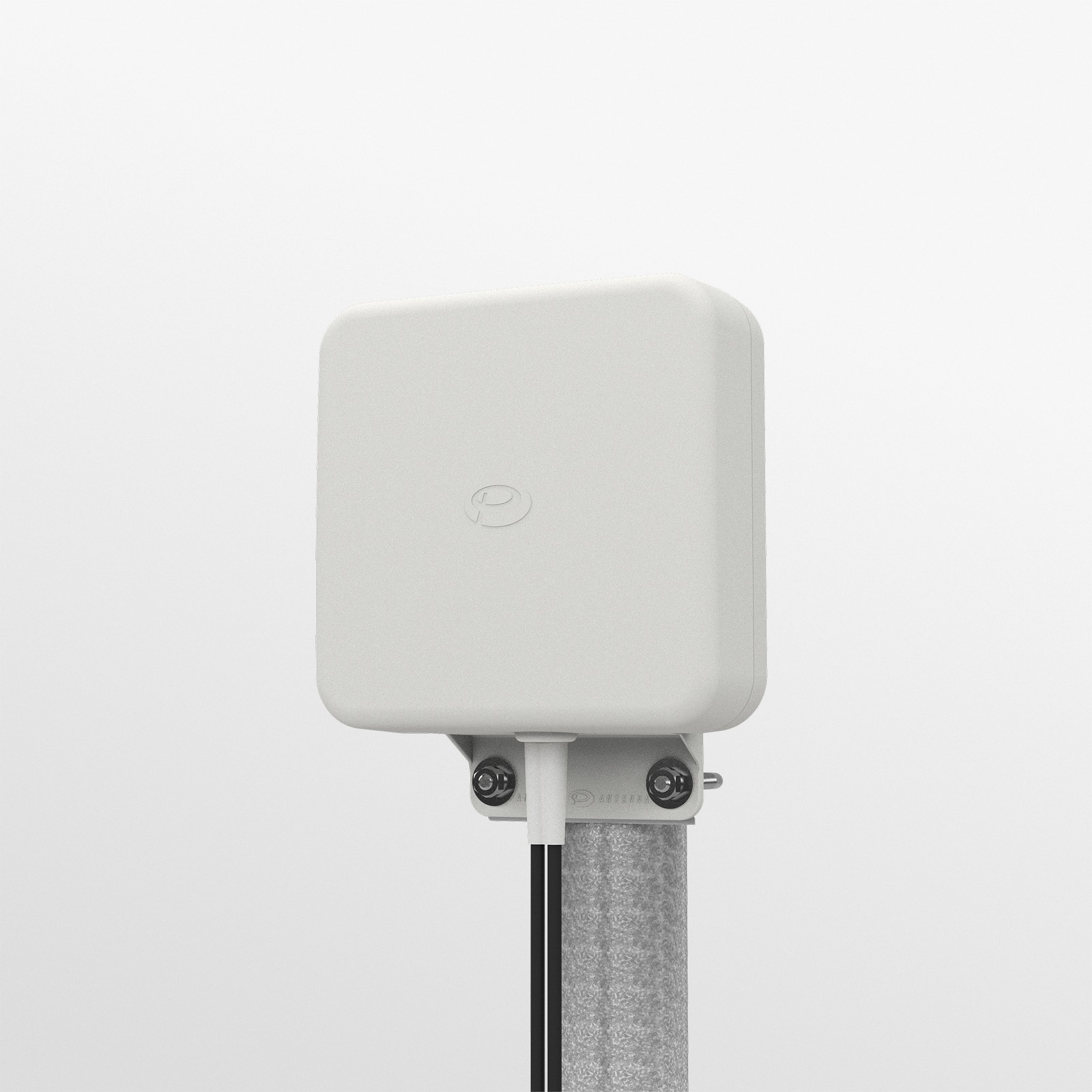

The rugged, weatherproof housing is designed for wall or mast mounting. Wall and mast mounting brackets are provided. 5 metres of fitted low loss double shielded twin cable minimises exposed connector joints and simplifies cable management for easy installation.
This version comes with 2 x ts-9 adapters to fit compatible devices.
Electrical Data2G/3G/4G Frequencies698-960/1710-3500MHzTypical VSWR<2:1Peak Gain (dBi)52G/3G/4G MiMo2×2Max Input Power (W)20PatternHybridMechanical DataAvailable ColoursWhiteLength (mm)155Height (mm)155Operating Temperature-30 / +80° CMounting DataMounting TypeWall Mount; Mast Mount; Desk MountMounting MethodWall Bracket; Mast Clamp; U Bolt; Screw Mount
Information/Spec Sheet : WMMG-7-38
