[More Connectivity]: Sleek design with 15 add on port connections, including 3 USB C ports, 2 Display ports, 2 HDMI ports, Gigabit Ethernet network RJ-45, a headphone / microphone jack, and 4 USB 3.0 ports.
[Dual 4K or 5K Display]: Connects 2 UHD 4k (up to 4096x2160 @60Hz) DisplayPort displays or connects a dual 5K Display (up to 5120x2880 @60Hz) through a single USB C cable.
[Power & Charger]: Power and charge your USB C equipped laptop up to 60W through the included USB C cable; provides enough power to support attached peripherals with the included 100W power adapter.
[4-Port USB 3.0 & 2-Port USB C]: Support all USB devices such as scanners, digital cameras, keyboards, mice, printers, external USB hard drives, etc; charge your smartphone, or tablet with the Fast-Charge Type C ports.
[Fully Compatibility]: Compatible with Microsoft Windows/ 7/ 8/ 8.1/ 10, Mac OS 10.6 or later (Currently Not Supported on Mac OS 10.13.4).Wavlink - Bringing Technology to Life
Wavlink USB C Dual 4K with Power Delivery Docking Station is an all-in-one solution that could not only provide a variety of connectivity but also power and charge your laptop. Besides, using one single USB C connection from the dock to your PC, you can easily connect your PC to one 5K (5120 x 2880) @60Hz UHD display (DisplayPort Only) or two 4K (4096 x 2160) @60Hz UHD displays. Display Link Certified, DL- 6950 chip. So the USB C PD Dock helps increase your productivity or flexibility in the office or your home.
Not only for connectivity, but also for charging
The Wavlink USB C PD Docking Station keeps you from juggling between power shortage and connectivity. You can charge your laptop by connecting to the USB C PD Dock. What even better is that your Smartphone can be charged simultaneously through the fast charging USB C ports.
5K@60HZ Output
14.7 million pixels give you amazing feast vision, showing every details clearly as like be personally on the scene. It also helps to improve operational efficiency on images and video editing.
Multitask with Dual 4K Displays
Featuring the DisplayPort and HDMI port, Wavlink Docking Station gives you the flexibility to connect your displays as needed. It supports dual monitors or dual high resolution 5K monitor. It will greatly help you facilitate high-resolution works, graphically intensive images, video editing, CAD drawings, medical imagery and more.
SuperSpeed 4 USB 3.0 Ports & 2 USB C Type C Ports
SuperSpeed USB3.0 provides up to 5Gbps data transfer speeds, which is 10 times faster than USB2.0. The Wavlink Universal Dock features 4x USB 3.0 ports, 2 USB C ports, allowing for SuperSpeed data transfer between peripherals while charging.
Blazing-fast Gigabit Ethernet
Wired network connections are faster and more reliable than any Wi-Fi. The dock helps you tap into the full performance of wired network connections with built-in Gigabit Ethernet port.
Crystal-clear Sound
With separate microphone input and amplified audio output,you can enjoy crystal-clear conference calls or any other project benefits from having your voice heard. You’ll be amazed at the immersive music it gives you.
Specification
Ports:1 xUSB-C(to Host); 2 xDP; 2 xHDMI; 4 xUSB3.0 Type-A ports; 2 x USB-C Gen1 ports; Earphone and Microphone Jack; RJ45 Jack; LED;
Chipset:DL6950 FL5002 VL813
Flash:64Mb
Power Supply:DC20V/5A 100Watt
Power Plug:US
Rated Volt./ Freq./Current:100-240 Va.c. 50/60Hz, 2A Max , CLASSâ…ˇ
Operating System:Support Microsoft Windows & Apple Mac OS
Working Standards
1. Hub running at USB3.0 speed
2. Upstream Charging 60Watt
3. DP or HDMI resolution Max. 4096 x 2160 p60
4. Ethernet running at Gigabit
5. 2.0 channel Audio
Dimensions
Unit Dimensions 223 X 80 X 26MM (L x H x W)
Weight 330.6g; 889.9g (Package Included);
Housing Material ABS
Shell color Black Color
Package Dimensions 313*150*60mm (L x W x H)
Package
In the box

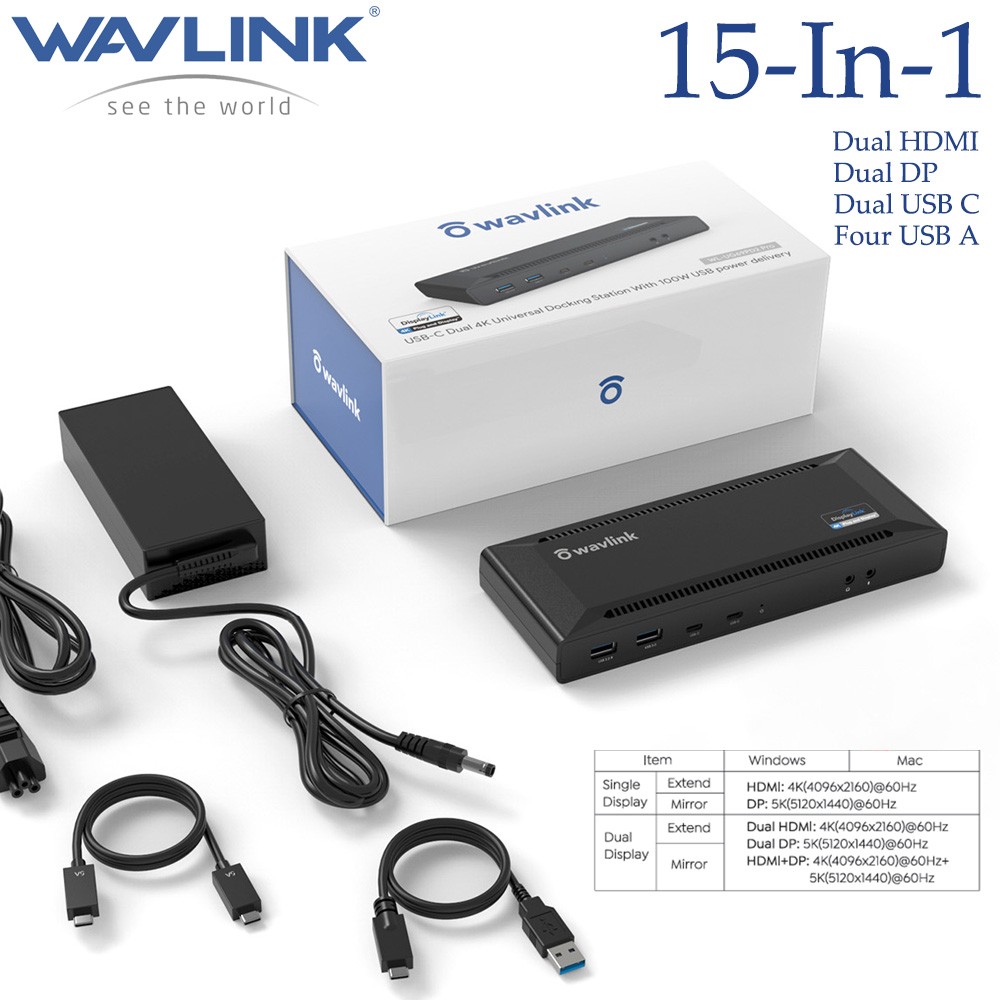

1x USB-C Universal Docking station
1x USB-C to C Cable(E-Mark Chip)
1x User Manual
1x Software Installation CD
1x DC20V/5A 100W Power Adapter
