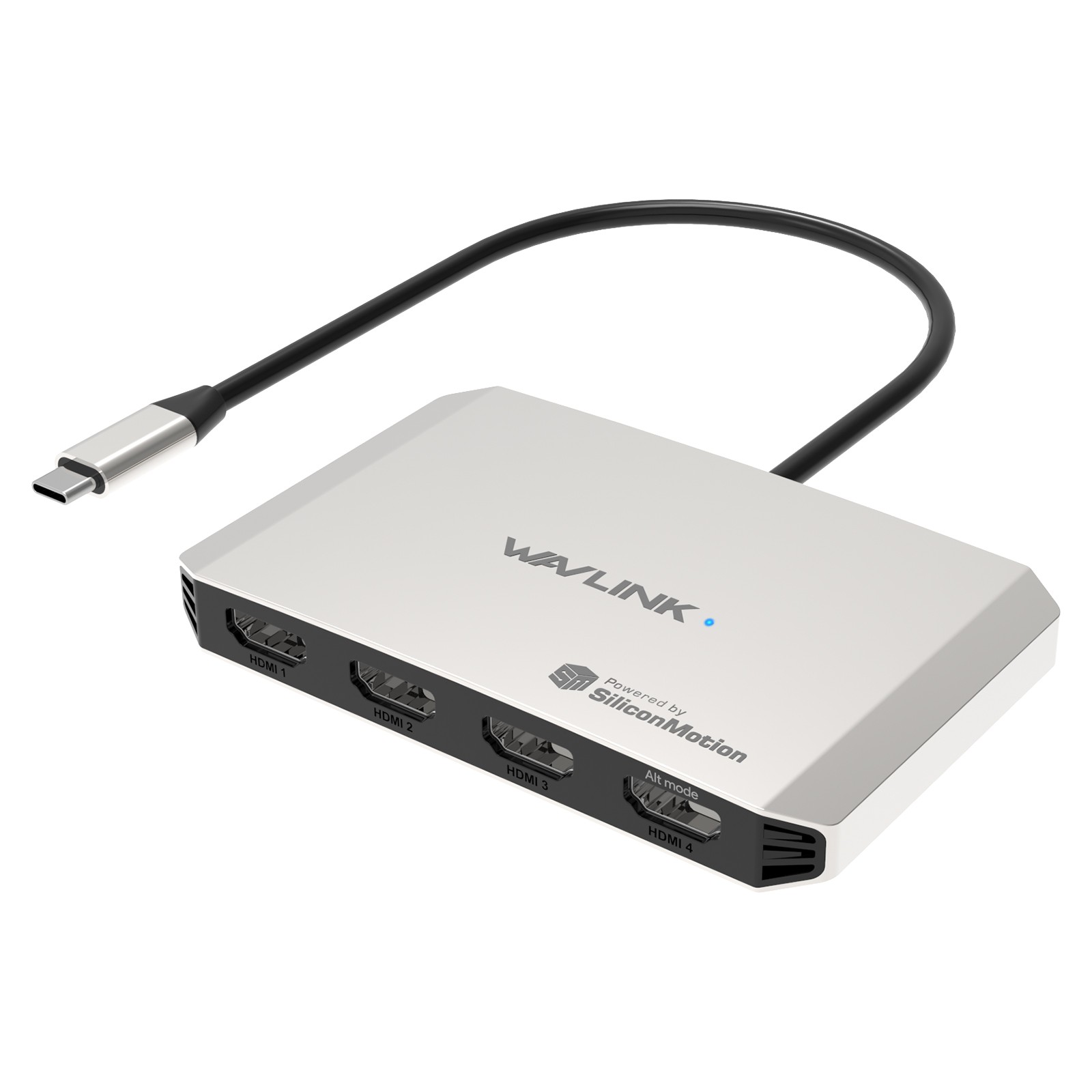

4HDMI, 130W PD3.1 Charging(SMI) WAVLINK USB-C to Quad HDMI Adapter, 4K USB-C Adapter, Support PD In 140W Out 130W, Compact and Portable,
Compatible with Windows, macOS, Chrome OS, Linux,and Android
WAVLINK Display Adapter, Quadruple 4K Visual Feast!!!
This adapter offers 1*4K@144Hz and 3*4K@60Hz display output, bringing you an immersive visual experience.
Combined with a PD IN port, it delivers power delivery with 140W input and 130W output, boosting your work efficiency
while keeping the laptop charged. Powerful Silicon Motion chips ensure vivid image output, stable operation,
and wide device compatibility. Thanks to this chip, laptops with macOS can extend 4 different displays,
which greatly unleashes the productivity of M1/M2/M3/M4. Furthermore, the delicate design makes this adapter palm-sized,
fitting in any desktop without occupying much space. Rugged aluminum housing keeps better heat dissipation and prolongs
inner electrical components' service life.
Lifelike 4K Display
This display adapter supports a maximum resolution of up to 4K@144Hz in extended and mirror mode.
Whether you're a Windows or macOS user, this display adapter can output vivid image quality for a better visual experience.
PD 130W Lightning-Fast Charging
Comes with a USB-C PD charging port, this display adapter allows a PD 140W input and PD 130W output,
which frees you from power anxiety while enjoying 4K video streaming.
Strong Silicon Motion Chip
The SMI chip makes it compatible with Thunderbolt 4/3, USB 3.1/3.0, and legacy USB-A port laptops.
This chip solution also offers stable performance, crystal-clear image quality, and universal compatibility.
Wide Device & System Compatible
It is compatible with devices like MacBook Air 2020, XPS 13, Asus, and HP;
systems like Windows, macOS, and Chrome; and Linux.
Palm-Size & Lightweight Design
This display adapter is 4.5*2.8*0.6 inches in size and 132 g in weight. Compact and portable
design saves your desktop room and declutters your workspace.
Display Resolution on Windows and macOS
Single Display: Option 1 : 1*4K@144Hz; Option 2 : 1*4K@60Hz
Dual Display : Option 1: 1*4K@144Hz（Alt mode）+ 1*4K@60Hz; Option 2 : 2*4K@60Hz
Triple Display: Option 1 : 2*4K@60Hz+1*4K@144Hz（Alt mode）; option 2: 3*4K@60Hz
Quad Display: 3*4K@60Hz+1*4K@144Hz（Alt mode）
Note: 4K@144Hz is only on DP1.4 and above with DSC enabled.
Warm Tips
- PD charger and cable are not provided.
- The USB-C PD Pass-Through port can deliver up to 20V/6.5A/130W charging. Actual charging speed may
vary depending on your USB-C power adapter and laptop USB-C charging specifications.
- For a 4K@144Hz display output, the USB-C port of the host must support "DisplayPort Alt mode" coverted to HDMI or Thunderbolt 3/4 for it to work.
In the Box
- 1 x Quick Start Guide
- 1 x Quad Universal 4K Display Adapter
System Requirement
- Microsoft Windows 10/11
- Apple Mac OS 13 or later
- Linux
- Chrome OS
- Harmony OS
- Android
Specification
1.Model: WL-UG7702H-A
2.Ports: Front: 3*HDMI port(4K@60Hz), 1*HDMI port(DP Alt Mode converted to HDMI) (4K@144Hz)
3.Rear: USB-C port(PD IN 140W), USB-C connector(PD pass-through 130W Charging)
4.Unit Size: LxWxH: 11.4x7x1.5 cm/4.5x2.8x0.6 inch
5.USB-C Cable Length: 25.6 cm/10.4 inch
6.Unit Weight: 132g/4.7oz
7.Material: Aluminum Alloy
4HDMI, 85W Charging(DisplayLink DL7400)
WAVLINK Quad 4K@60Hz Universal Display Adapter - Global Debut with DisplayLink DL7400, 4 HDMI Ports,
with 85W Upstream Charging, Supports Multiple Monitors for Intel/M1/M2/M3/M4 Mac&Windows
WAVLINK UG7501H Quad 4K@60Hz Universal Display Adapter with 85W Upstream Charging
Empower your workspace with a dynamic USB-C/A display adapter. Featuring four HDMI ports for stunning 4K visuals at 60Hz,
fueled by the cutting-edge DisplayLink DL7400 chipset. Seamless performance for work and entertainment tasks like document
managing and video conferencing. Customize your display effortlessly with mirror and extend modes. Setup is a breeze—
download the driver from the DisplayLink website. Compatible with Windows 11/10, Mac OS 11.x-13.x or later, Chrome OS,
Ubuntu, Android and Harmony OS and most desktops with USB-C and USB-A ports. Choose the WAVLINK WL-UG7501H to
elevate your productivity and visual experience!
85W Fast Upstream Charging
Experience swift and efficient host device charging at 85W using the powerful 100W USB-C charging port,
which is designed specifically for charging, not for data transfer or video output.
High-Performance Chipset
The DisplayLink DL7400 chipset delivers fast data transfer speeds and reliable visual transmissions,
ideal for both work tasks and everyday use.
Rotation & Clamshell Mode
Rotation Mode allows users to switch their computer screen from landscape to portrait orientation,
while Clamshell Mode could transform the laptop into a desktop-like setup for tasks requiring more screen space or display options.
Note: Rotation & Clamshell Mode are available on Windows and Mac OS 12.x above.
Premiun Shell Design
The aluminum alloy casing serves to provide enhanced durability, heat dissipation, and a premium aesthetic appearance,
ensuring both protection and efficient performance.
Compatible Systems
-Windows 11/10
-Mac OS 11.x-13.x or later
-Chrome OS
-Ubuntu
-Android
-Harmony OS
Multiple Display Resolution(Max. Resolution)
1) Single Display:
HDMI1/HDMI2/HDMI3/HDMI4: 4K(3840x2160)@60Hz.
2) Dual Display:
HDMI1+ HDMI2: 2*4K(3840x2160)@60Hz;
HDMI1/2+ HDMI3/4: 2*4K(3840x2160)@60Hz;
HDMI3+ HDMI4: 2*4K(3840x2160)@60Hz.
3) Triple Display:
HDMI1+HDMI2+HDMI3/4: 3*4K(3840x2160)@60Hz.
4) Quadruple Display:
HDMI 1+HDMI 2+HDMI3+HDMI4: WL-UG7501H
2.Chip: DisplayLink DL7400
3.Connection to Host: USB-C/A
4.Video Ports: 4 x HDMI
5.Product Size: 11.3 x 9.9 x 1.5cm/4.5x3.9x0.6in (L x W x H)
6.Cable Length: 23cm/9.1in
7.Product Weight: 206g/7.3oz
Warm Tips
☺Not plug-and-play supported; please download and install drivers from the official website.
☺Ideal for light office use; not recommended for graphic-intensive tasks like gaming or video editing.
☺Please confirm that the type-c port of your laptop supports charging, or the adapter's host charging function may not work.
☺The charger and charging cable are not included.
☺The USB-C port on the adapter is only for charging, does not support data transfer or video output.
☺Not for other Linux, iOS or iPad OS systems. Does not support Steam Deck or Nintendo Switch.
☺Does not support HDCP, will not playback encrypted or copy-protected content from Netflix, Hulu, iTunes, Amazon Prime, etc.
In the Box
- 1 x Quad 4K@60Hz Universal Display Adapter
- 1 x Quick Start Guide
2HDMI, 2DP, 85W Charging(DisplayLink DL7400)
WAVLINK Quad 4K/Dual DP 8K Universal Display Adapter - Global Debut with DisplayLink DL7400, 2 HDMI & 2 DP,
with 85W Upstream Charging, Supports Multiple Monitors for Intel/M1/M2/M3/M4 Mac&Windows
WAVLINK UG7501DH Quad 4K/Dual DP 8K Universal Display Adapter with 85W Upstream Charging
Empower your workspace with a dynamic USB-C/A display adapter. Featuring DP/HDMI ports for stunning 8K/4K visuals,
fueled by the cutting-edge DisplayLink DL7400 chipset. Seamless performance for work and entertainment tasks like document
managing and video conferencing. Customize your display effortlessly with mirror and extend modes. Setup is a breeze—
download the driver from the DisplayLink website. Compatible with Windows 11/10, Mac OS 11.x-13.x or later, Chrome OS,
Ubuntu, Android and Harmony OS and most desktops with USB-C and USB-A ports. Choose the WAVLINK WL-UG7501DH to
elevate your productivity and visual experience!
85W Fast Upstream Charging
Experience swift and efficient host device charging at 85W using the powerful 100W USB-C charging port,
which is designed specifically for charging, not for data transfer or video output.
High-Performance Chipset
The DisplayLink DL7400 chipset delivers fast data transfer speeds and reliable visual transmissions,
ideal for both work tasks and everyday use.
Rotation & Clamshell Mode
Rotation Mode allows users to switch their computer screen from landscape to portrait orientation,
while Clamshell Mode could transform the laptop into a desktop-like setup for tasks requiring more screen space or
display options. Note: Rotation & Clamshell Mode are available on Windows and Mac OS 12.x above.
Premiun Shell Design
The aluminum alloy casing serves to provide enhanced durability, heat dissipation, and a premium aesthetic appearance,
ensuring both protection and efficient performance.
Compatible Systems
-Windows 11/10
-Mac OS 11.x-13.x or later
-Chrome OS
-Ubuntu
-Android
-Harmony OS
Multiple Display Resolution(Max. Resolution)
1) Single Display:
DP 1 (DSC): 8K@60Hz/4K@144Hz
DP 2: 8K@60Hz/4K@120Hz
HDMI 1/2: 4K@60Hz
2) Dual Display:
DP 1 (DSC)+DP 2: 8K@60Hz/4K@144Hz+8K@60Hz/4K@120Hz
DP 1 (DSC)+HDMI 1/2: 8K@60Hz/4K@144Hz+4K@60Hz
DP 2+HDMI 1/2: 8K@60Hz/4K@120Hz+4K@60Hz
HDMI 1+HDMI 2: 2*4K@60Hz
3) Triple Display:
DP 1 (DSC)+DP 2+HDMI 1/2: 8K@60Hz/4K@144Hz+4K@120Hz+4K@60Hz or 4K@144Hz+8K@60Hz+4K@60Hz
DP 1 (DSC)+HDMI 1+HDMI 2: 8K@60Hz/4K@144Hz+2*4K@60Hz
DP 2 +HDMI 1+HDMI 2: 8K@60Hz/4K@120Hz+2*4K@60Hz
4) Quadruple Display:
DP 1 (DSC)+DP2+HDMI 1+HDMI 2: WL-UG7501DH
2.Chip: DisplayLink DL7400
3.Connection to Host: USB-C/A
4.Video Ports: 2 x HDMI, 2 x DP
5.Product Size: 11.3 x 9.9 x 1.5cm/4.5x3.9x0.6in (L x W x H)
6.Cable Length: 23cm/9.1in
7.Product Weight: 206g/7.3oz
Warm Tips
☺Not plug-and-play supported; please download and install drivers from the official website.
☺Ideal for light office use; not recommended for graphic-intensive tasks like gaming or video editing.
☺Please confirm that the type-c port of your laptop supports charging, or the adapter's host charging function may not work.
☺The charger and charging cable are not included.
☺The USB-C port on the adapter is only for charging, does not support data transfer or video output.
☺Not for other Linux, iOS or iPad OS systems. Does not support Steam Deck or Nintendo Switch.
☺Does not support HDCP, will not playback encrypted or copy-protected content from Netflix, Hulu, iTunes, Amazon Prime, etc.
In the Box
- 1 x Quad 4K/Dual 8K DisplayPorts Universal Display Adapter
- 1 x Quick Start Guide
4HDMI, 100W Charging, 5 USB-A/C 3.2, 2.5G LAN(DisplayLink DL7400)
WAVLINK USB-C DisplayLink Premium Docking Station, 4xHDMI2.0, Quad 4K@60Hz for M1/M2/M3 Mac & Windows,
15 in 1 Laptop Dock with 100W Charging, 2.5G LAN, USB 3.2-A/C, USB-C(PD 30W), SD & Micro SD Slot, Compatible with New MacBook Neo
WAVLINK's Premium USB-C 4K@60Hz Quad Displays Docking Station-Bring You Endless Possibilities Through a Single USB Port
UG75PD1-4H2 is a powerful 15-in-1 tool that can expand your work-from-home laptop's capabilities, reduce wire clutter,
and leave your chargers behind! With this docking station, you’re not just adding screens; you’re also getting a whole host of extra ports.
Starting with the innovative display array, you can add up to four 4K displays in the configuration of quad HDMI to USB4 / Thunderbolt 3/4/5 hosts.
Unlock the Full Potential of Your MacBook Neo
While the MacBook Neo natively supports only one external monitor—limiting your workspace and slowing down productivity—
the WAVLINK DisplayLink Docking Station changes the game.With WAVLINK, you can effortlessly connectquadruple 4K monitors,
instantly expanding your screen real estate for a smoother, more efficient workflow.Beyond multi-display power,
the dock is equipped with a wide range of versatile ports—giving you more connectivity, more convenience, and an all-around elevated experience.
Blazing Fast Data Transfer
The docking station features five high-speed USB 3.2 ports, including two USB-C and three USB-A, all supporting transfer
speeds up to 10Gbps. A bonus feature: one of the USB-C ports offers 30W downstream charging,
making it easy to power your mobile devices while working.
2.5X Faster Than Gigabit:
This LAN port offers stunning and stable wired network connection to new Type-C/Thunderbolt
laptops that are lack of RJ45 network port, backwards compatible with 10/100/1000Mbps.
SD & TF Card Reader Slots
You can conveniently browse videos or photos instantly on your PCs/laptops and transfer large files in seconds
with highest speed up to 312MB/s. (The SD and TF cards are not included).
2-In-1 Audio & Mic
Connect a microphone, headphones or mini stereo to this audio out & mic in port when accessing audio files or needing to speak,
which can make listening, talking or recording a breeze.
Security Lock Hole
Supports the connection of Kensington lock, which secures the devices and important data from theft to keep your properties/data safe.
(Kensington lock is not included).
Rotation & Clamshell Mode
On Windows, screen rotation and clamshell mode are both available. On Mac, screen rotation and
clamshell mode are only available on macOS 12.x above.
Better Heat Dissipation
Ventilation hollow design on both left and right sides helps to level up heat dissipation for a heavy duty purpose all day.
Good to extend the lifespan of the dock.
Compatible Systems
-Windows 11/10
-Mac OS 11.x-15.x or later
-Chrome Silver
Material Type: Aluminum
4x HDMI: 4K@60Hz
1x Ethernet: up to 2.5 Gbps
3x USB-A 3.2: up to 10Gbps
1x USB-C 3.2: up to 10Gbps
1x USB-C 3.2: up to 10Gbps+PD30W
1x SD4.0: up to 312MB/s
Ix TF4.0:up to 312MB/s
1x 3.5mm 4-Pole Audio & Mic Jack
1x USB-C (Host, PD100W)
1x DC IN (20V/8A, 160W)
Multiple Display Resolution
①Single Display(Max. Resolution): 4K(3840x2160)@60Hz
②Dual Display(Max. Resolution): 2*4K(3840x2160)@60Hz
③Triple Display(Max. Resolution): 3*4K(3840x2160)@60Hz
④Quadruple Display(Max. Resolution): 4*4K(3840x2160)@60Hz
Warm Tips:
☺The dock is self-powered and needs to be connected to the power adapter to work normally.
☺Not recommended for gaming or video clips.
☺This dock works with Thunderbolt 4/5 laptops with maximum 10Gbps data transfer rate, cannot reach 40Gbps.
☺Please confirm that the USB-C port of your laptop supports charging, or the docking station's host charging function may not work.
☺Driver required for this product, does not support plug and play. Please follow the instructions to download the latest DisplayLink driver from the official website before use.
☺Does not support HDCP, will not playback encrypted or copy-protected content from Netflix, Hulu, iTunes, Amazon Prime, etc.
USB Host Compatible Devices (Not Full List):
To get the better performance,we suggest the CPU and GPU of the laptop should meet the requirement below:
CPU: Intel 11th/12th generation CPU or cpu of higher spec.
GPU: Iris xe or gpu of higher spec like Discrete graphics card from NVIDIA.
Package Includes
1 x Universal 10G Quad 4K Docking Station
1 x Type-C to Type-C 10Gbps Cable with Type-C to Type-A Adapter
1 x DC20V 8A Power Adapter
1 x AC Power Cable
1 x Cable Holder
1 x Quick Start Guide
4HDMI, 4DP, 100W Charging, 3 USB3.0, USB3.1, 2.5G LAN(DisplayLink)
Wavlink 5K Quadruple Display USB-C Universal Docking Station, 18-in-1 USB-C Laptop Dock(Thunderbolt 3) Compatible
for MacBook and Windows with 4 DP, 4 HDMI, 2.5G Ethernet, 100W PD(Host), 3 USB3.0, 1 USB3.1, SD/TF, Audio/Mic,
1 USB-C(PD30W, No Data), Compatible with New MacBook Neo
Future-Proof Connectivity: Upgrade Your Laptop With Wavlink Docking Station
Better Heat Dissipation: Double-sided ventilation holes and anti-dust mesh with built-in heat sink(76252mm² coverage)
ensure stable and efficient operation of the dock.
Reliable Security: Integrated lock slot accommodates standard security locks to safeguard equipment from
being taken by others(the security lock is not included).
Anti-slip Button Cushion: The whole bottom of this dock is fully covered by anti-skid silicone,
which can provide maximum protection for your device from sudden sliding off.
2-in-1 Audio & Mic: If you need to use headset or microphone often, the Audio&Mic 2-in-1 port is what you need
with crystal-clear audio output and mic input.
100W Power Delivery: Supports up to 100W pass-through charging so that you can power your laptop at full speed.
Eliminate "Low Battery Anxiety" from your life!
30W PD Quick Charging: Refill your phone or tablet at blazing fast speeds with 30W PD output through the
front USB-C port, 6x faster than 5V/1A chargers.
Multifunctional USB3.1 Port: USB3.1 port provides effortless data transfer up to 10Gbps and supports
BC1.2 and Apple 2.4A fast charging.
SD/TF Card Reader: SD/TF card can be used at a speed up to 312MB/s, capacity up to 2TB,
easy to transfer photos or videos from cards to laptop in seconds.
2.5X Faster Than Gigabit: This LAN port offers stunning and stable wired network connection to new
Type-C/Thunderbolt 3 laptops that are lack of RJ45 network port.
Triple USB3.0 Ports: Connect your peripherals including a mouse, keyboard, USB flash drive, SSD, etc.
via the high speed USB3.0 port for data transfer of up to 5Gbps.
Unlock the Full Potential of Your MacBook Neo
While the MacBook Neo natively supports only one external monitor—limiting your workspace and slowing down productivity—
the WAVLINK DisplayLink Docking Station changes the game.With WAVLINK, you can effortlessly connectquad 5K monitors,
instantly expanding your screen real estate for a smoother, more efficient workflow.Beyond multi-display power,
the dock is equipped with a wide range of versatile ports—giving you more connectivity, more convenience, and an all-around elevated experience.
Tips:
-The dock is self-powered and needs to be connected to the power adapter to work normally.
-This dock works with Thunderbolt 3 laptops with maximum 10Gbps data transfer rate, cannot reach 40Gbps.
-The extend or mirror mode can only be performed by connecting to the computer through the USB-C (host) port.
-When we use the USB-C to C cable with USB-A converter, the computer cannot be charged through the USB-A interface.
-In each video stream group you can only use one port, either "DP++" or "HDMI". If you plug in both HDMI and DP within
the same video stream, DP will be working, HDMI will not.
-Offering 100W USB power delivery on PD 3.0, you can power laptops and other peripherals through your dock.
Making sure that your laptop complies with USB PD charging and supports 100W charging power.
-Resolution up to 5120*1440@60Hz when plug either "DP" or "HDMI" port within the same stream and the latest driver needed.
Links to the latest driver will be provided on our official website. Make sure your display supports 5120*1440 resolution .
-Requirements for dual 5K(5120*2880@60Hz): connect the left two or the right two DisplayPort together to provide up to
5120*2880@60Hz resolution to a single display. The display needs to have 2 DP input ports and supports 5120*2880@60Hz resolution
and refresh rate. Windows PC required. MAC DO NOT SUPPORT 5120*2880@60Hz RESOLUTION.
Package Lists:
1*USB-C Quad Display 4K@60Hz Universal Dock
1*2-in-1 USB-C to USB-C Cable with USB-A Converter
1*DC20V/9A 180W Power Adapter
1*AC Power Cable
1*User Manual
1*Paper made CD (driver linkage)
