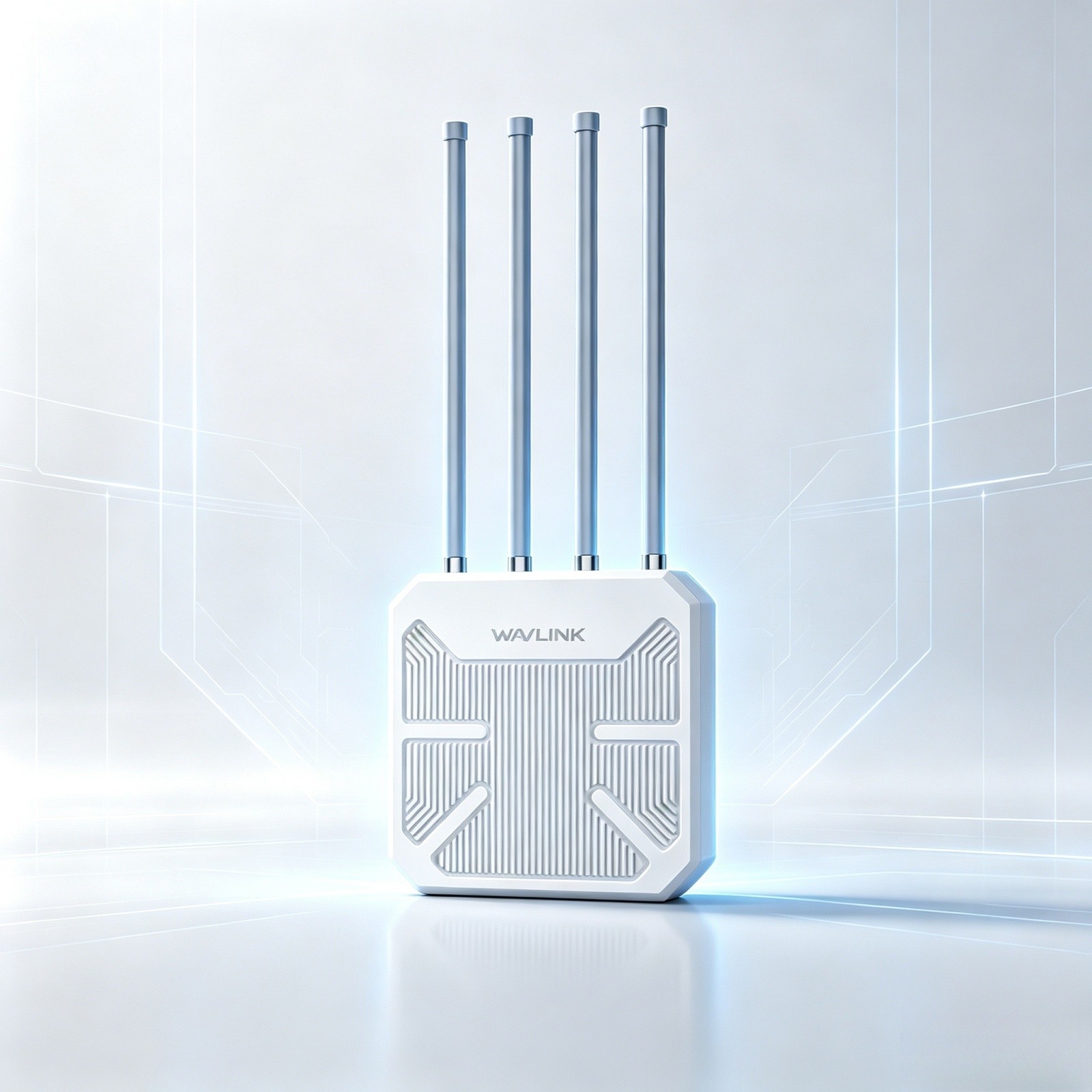

Built for OUTDOOR. The AX1800 WIFI 6 EXTENDERbrings next-generation WiFi 6 performance to the outdoors — 4×8dBi fiberglass antennas, IP67 waterproof enclosure, 15kV ESD + 6kV lightning protection, and PoE power flexibility. Rain, snow, wind, thunder — it just keeps broadcasting.
AX1800Dual-Band WiFi 64×8dBiFiberglass AntennasIP67WaterproofPoEAT/AF + PassiveProduct OverviewProfessional Outdoor WiFi 6. Any Weather. The AX1800 WIFI 6 REPEATERis a high-performance outdoor router/AP/repeater specially designed for harsh outdoor environments. It combines a robust weatherproof enclosure, 15kV ESD + 6kV lightning protection, and 4 × 8dBi omnidirectional fiberglass tube antennas to deliver stable, far-reaching WiFi 6 coverage. Supports IEEE 802.11 ax/ac/a/n/g/b standards and provides blazing-fast Internet speeds of 1800Mbps (2.4GHz 574Mbps + 5GHz 1201Mbps). 🛡️Designed for Harsh Outdoor ConditionsEquipped with IP67 waterproof enclosure, 15kV ESD protection and 6kV lightning protection, it can work normally in rain/snow/wind/thunder and other bad weather. The fiberglass tube high-gain antennas can not only withstand strong wind and corrosion, but also boost the WiFi coverage — making it more suitable for outdoor use.
⚡Enjoy True WiFi 6 SpeedThe next generation of WiFi, complies with IEEE 802.11 ax/ac/a/b/g/n standards. Supports dual-band maximum speed up to 5GHz 1201Mbps and 2.4GHz 574Mbps, avoiding wireless interference & congestion and offering lightning-fast Internet speed. Enjoy HD videos, smooth gaming, etc. even outdoors.
🔌Optional PoE Power SupplySupports 802.3AF/AT active PoE and passive PoE, transferring data and charging the product with a single Ethernet cable, so you can install the product outdoors where power outlet is not available. Note: The PoE converter is not waterproof. Please use CAT5E or above cable and the length should not exceed 100m/328ft.
📶Seamless WiFi RoamingThe 4 × 8dBi omnidirectional antennas and two built-in high-power amplifiers provide extreme WiFi coverage and penetration. Also supports Mesh technology, one-click brings more device connections, greatly expanding the WiFi coverage and eliminating every network dead zone.
🔄Multiple Modes, Flexible UseSupports Mesh, AP, Router, Repeater, AP+Repeater and other modes to meet your different needs and apply to more outdoor connection scenarios. Router/AP Mode is ideal for converting wired connections into wireless networks, while under Mesh Mode you can enjoy seamless WiFi with a single network name and password.
📡Fiberglass Tube AntennasHigh strength, high precision, corrosion-resistant, long service life and strong wind resistance — four 40cm (15.7in) glass tube omni antennas are engineered for coastal, farm, and rooftop deployments where durability matters most.
Antenna Array4 × 8dBi Omnidirectional Fiberglass. Four ruggedized 8dBi high-gain fiberglass tube antennas provide extreme WiFi coverage and penetration — engineered to survive harsh winds, UV exposure, and salt-laden coastal air.
High-Gain Fiberglass Antenna Array4 × 8dBi OmniOmni8dBi40cm / 15.7inOmni8dBi40cm / 15.7inOmni8dBi40cm / 15.7inOmni8dBi40cm / 15.7inDetachable design: all four antennas use standard connectors, so you can swap in high-gain directional panels for PtP links or keep the stock omni array for 360° coverage. Ideal for farms, ranches, RV parks, marinas, and industrial sites.
Built for the ElementsIP67. 15kV ESD. 6kV Lightning. The WN573HX1 is engineered to survive what nature throws at it — monsoon rain, coastal salt air, desert heat, lightning storms, and everything in between.
💧IP67Waterproof GradeRobust weatherproof case rated IP67 — dust-tight and protected against water immersion.
🛡️15kV ESDElectrostatic DischargeBuilt-in 15kV electrostatic discharge protection shields internal electronics from surges.
⚡6kVLightning Protection6kV lightning surge defense — rock-solid stability in coastal areas, industrial sites, or mountains.
Deployment FlexibilityFive Modes. One Device. Deploy it as a standalone router, extend an existing network, add a wired access point, or build a WAVLINK Mesh system — mode switching takes seconds.
🛜RouterFull standalone router with WAN/LAN
📡APConvert wired to high-speed wireless
🔄RepeaterExtend the reach of an existing WiFi
🕸️MeshBuild a unified multi-node mesh network
🔗AP+RepeaterHybrid deployment for complex sites
Power Without OutletsPoE That Reaches the Unreachable. No power outlet on the roof, the barn, or the light pole? No problem — the WN573HX1 can be powered entirely over Ethernet, up to 100 meters away from the source.
Dual PoE SupportAT / AF + Passive802.3 AT/AF Active PoEStandard-compliant active PoE negotiates power automatically — plug it into any PoE switch or injector for clean, safe delivery.Passive PoE SupportCompatible with the included passive PoE converter — ideal for long cable runs where active negotiation is impractical.Up to 100m RangeInstall the access point up to 100 meters from the power source — perfect for poles, rooftops, and remote structures.Single-Cable DeploymentData and power travel over one Ethernet cable — no separate power run required, dramatically simplifying outdoor installation.Tech DataSpecificationProduct Size (without antennas)24 × 24 × 7cm / 9.4 × 9.4 × 2.8inPoE Converter Size4.4 × 3.7 × 2.2cm / 1.7 × 1.5 × 0.9inCable Length Antennas — 40cm / 15.7in
Ethernet Cable — 100cm / 39.4in
Power Adapter Cable — 130cm / 51.2in Product Weight (without antennas)1109g / 39.1ozStandardIEEE 802.11 ax/ac/a/n/g/bFrequency Band / Speed2.4GHz (574Mbps) + 5GHz (1201Mbps) — aggregated up to 1800MbpsWireless SecurityWPA2-PSK, WPA2/WPA3-MIXAntennas4 × 8dBi Omnidirectional Antennas (40cm / 15.7in)PoE Support802.3 AF/AT Active PoE + Passive PoEOperation ModesMesh · AP · Router · Repeater · AP+RepeaterWaterproof RatingIP67 — weatherproof outdoor enclosureProtection15kV ESD · 6kV lightning protectionPAIR/RESET LEDBluePoE Converter Status LEDGreenBefore You BuyWarm Tips Please read these notes carefully before deployment — they'll help you get the most out of your WN573HX1 from day one.
Please read before installation- ①The PoE converter is not waterproof — please install it indoors.
- ②Please make sure your Ethernet cable is CAT5E or above certified and shorter than 100m / 328ft.
- ③Please install the product 2–3 meters above the ground for better performance.
- ④Under Mesh mode, WN573HX1 ONLY supports interconnection with WN531AX2, WN583AX1 and WN573HX1.
What You GetIn the Box Everything you need for a complete outdoor deployment — the unit, antennas, mounting hardware, and the little extras that make installation painless.
📶Wi-Fi 6 Outdoor Mesh Router / AP / RepeaterWL-WN573HX1 main unit📡4 × Omni Antennas8dBi · 40cm / 15.7in each🔗Ethernet Cable ConnectorsFor outdoor cable termination🎗️4 × Cable TiesClean cable management🔧WrenchFor antenna installation🧲2 × Silicone PadsSealing and vibration damping🔩Several ScrewsMounting hardware kit📖Quick Installation GuideSetup and pairing instructionsPassive PoE (Optional)1 × 54V Power Adapter1 × PoE Converter1 × Ethernet CableWAVLINKOutdoor WiFi 6 · AX1800 · IP67 · 4×8dBi · PoE · Mesh · WL-WN573HX1Cover Every Acre. Weather Every Storm.Four fiberglass antennas, IP67 protection, and PoE freedom — the outdoor WiFi 6 access point engineered to stay online.
4 × 8dBi AntennasFiberglass tube high-gain omni array for maximum outdoor coverage.AX1800 Dual-Band574Mbps + 1201Mbps aggregated up to 1800Mbps for lag-free outdoor streaming.IP67 Weatherproof15kV ESD + 6kV lightning — built for rain, snow, wind, and thunder.PoE + Mesh Ready802.3 AF/AT Active + Passive PoE, Mesh, 5 operation modes for any scale. Model: WL-WN573HX1 · AX1800 outdoor WiFi 6 mesh router/AP/repeater · 4 × 8dBi fiberglass antennas.
PoE converter is not waterproof — install it indoors. Use CAT5E or above cable, max 100m / 328ft.
Under Mesh mode, WN573HX1 supports interconnection with WN531AX2, WN583AX1 and WN573HX1.
Actual performance may vary depending on environmental conditions.
