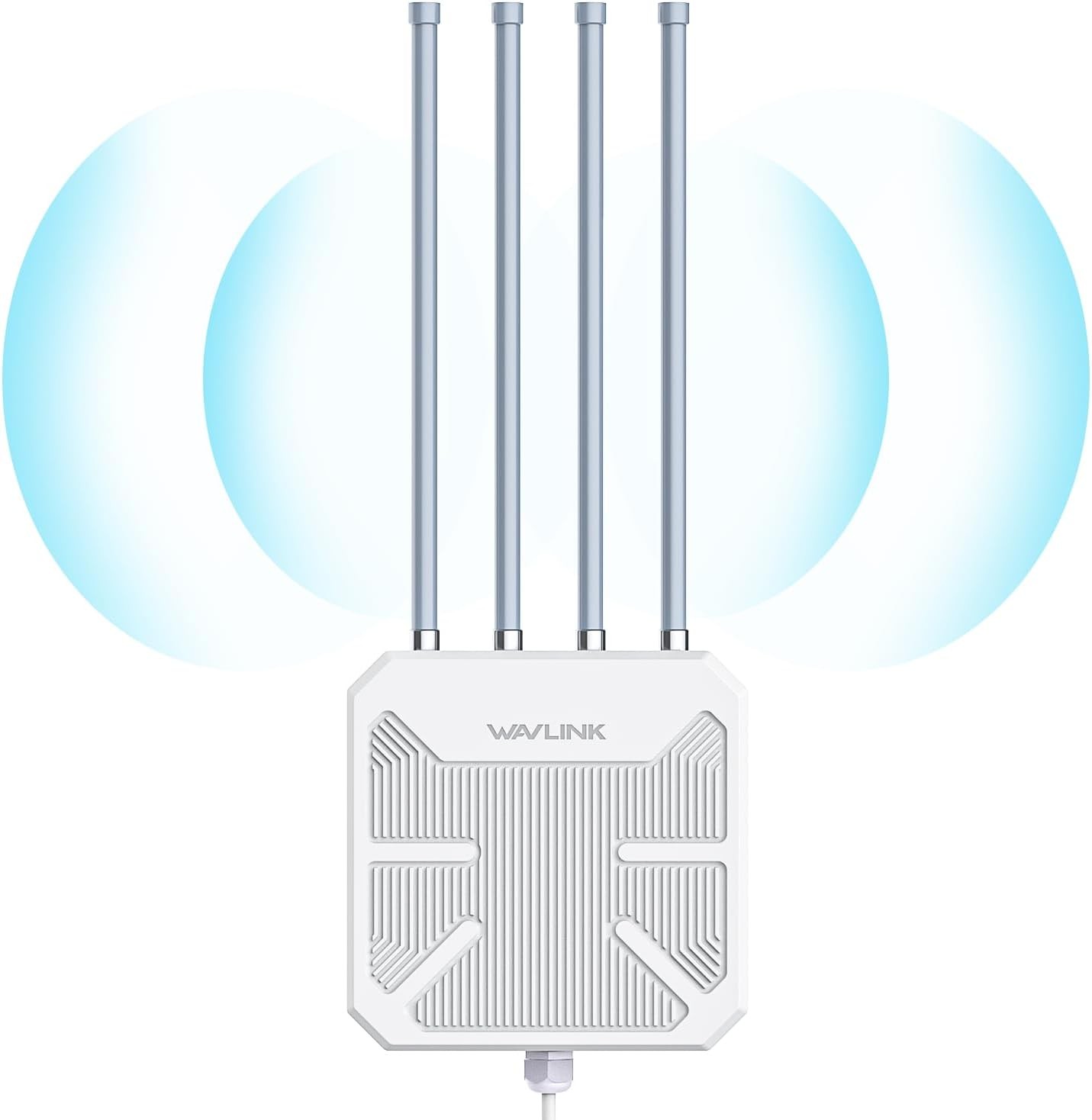

WAVLINK · OUTDOOR SERIES · WiFi 6 / WiFi 7Outdoor WiFi Router & Mesh SystemIP67 · 15kV ESD · PoE · Mesh · Up to 5100MbpsThree performance tiers — WiFi 6 AX1800, WiFi 6 AX3000, and WiFi 7 BE5100. All weatherproof, all PoE-powered, all built for the harshest outdoor deployments.⛅ IP67 Waterproof⚡ 15kV ESD Protection📡 Everything Mesh🔌 802.3 AT / AF PoE1800MbpsWiFi 6 AX18003000MbpsWiFi 6 AX30005100MbpsWiFi 7 BE5100IP67WeatherproofSelection GuideWhy Choose Each Model?Match the model to your deployment — from budget-friendly yards to future-proof WiFi 7 networks.WiFi 6 · AX18002.4G 573Mbps + 5G 1201Mbps • Best for budget-conscious buyers.
• Enough for small yards, campsites, or a handful of security cameras.
• Lower price, same outdoor durability. WiFi 6 · AX30002.4G 573Mbps + 5G 2402Mbps • Best for standard outdoor coverage with higher speed.
• Supports up to 256 devices, suitable for RV parks, parking lots, or medium-sized venues.
• Balanced performance for most users. NewestWiFi 7 · BE51002.4G 688Mbps + 5G 4323Mbps • Best for future-proofing and maximum speed.
• WiFi 7 (802.11be) delivers up to 5100Mbps, 70% faster than AX3000.
• MLO (Multi-Link Operation) reduces latency and increases throughput.
• Ideal for 4K/8K streaming, large file transfers, or high-demand networks. Side by SideCompare the Three StandardWiFi 6 (ax)WiFi 6 (ax)WiFi 7 (be)2.4GHz Speed573Mbps573Mbps688Mbps5GHz Speed1201Mbps2402Mbps4323MbpsCombined Speed1800Mbps3000Mbps5100MbpsAntennas4 × 8dBi4 × 8dBi4 × 8dBi + 1 × 5dBiEthernet PortGigabitGigabit2.5G WAN/LANWaterproofIP67IP67IP67Lightning / ESD15kV ESD15kV ESD15kV ESD + 4kVPoE SupportAT/AF + PassiveAT/AF + PassiveAT/AF + ForSmall yards & campsitesRV parks & mid-size venues4K/8K streaming & future-proofCore PlatformBuilt for the Outdoors. Engineered to Last.Every model shares the same weather-hardened chassis, fiberglass antenna design and Mesh stack.⛅Weatherproof & Lightning-ProtectedIP67-rated waterproof housing with built-in 15kV ESD lightning arrestor (4kV surge defense on BE5100) shrugs off torrential rain, dust storms and electrical storms. Rock-solid in coastal areas, industrial sites and mountainous terrain.📡Fiberglass High-Gain AntennasFiberglass tube antennas deliver high precision, corrosion resistance, long life and strong wind resistance. Detachable 8dBi omnidirectional external antennas provide excellent wireless performance (BE5100 adds a 5dBi near-ground antenna).🔌Flexible PoE Power OptionsDual PoE support: Active PoE (802.3at/af) for plug-and-play high-density environments, and Passive PoE for cost-effective long-range power in rural farms, orchards and festivals.⚙Seamless Mesh & Adaptive ModesEverything Mesh technology with a single network name and password for seamless roaming. Supports Mesh / AP / Router / Repeater / AP+Repeater modes — transform the device to fit any scenario.SpecificationTechnical DetailsParameterAX1800 / WN573HX1AX3000 / WN573HX3BE5100 / WN573HBE2StandardIEEE 802.11 ax/ac/a/n/g/bIEEE 802.11 be/ax/ac/a/n/g/bFrequency / Speed2.4G 573Mbps
5G 1201Mbps2.4G 573Mbps
5G 2402Mbps2.4G 688Mbps
5G 4323MbpsEthernet Port1 × Gigabit WAN/LAN1 × Gigabit WAN/LAN1 × 2.5G WAN/LANAntennas4 × 8dBi Omni4 × 8dBi Omni4 × 8dBi + 1 × 5dBiOperation ModesMesh / AP / Router
Repeater / AP+RepeaterAP / Range Extender
Mesh Router / Mesh ExtenderMesh AP / AP / Repeater
Mesh Router / Mesh ExtenderWireless / WPA2-PSK
WPA PSK / WPA2-PSK-MIXProduct Size24 × 24 × 7 cm
9.4 × 9.4 × 2.8 in24 × 24 × 7 cm
9.4 × 9.4 × 2.8 inPoE Converter Size4.4 × 3.7 × 2.2 cm / 1.7 × 1.5 × 0.9 inCable LengthAntenna 40 cm · Ethernet 100 cm
Power 130 cmAntenna 40 cm · Ethernet 100 cm
Power 130 cmProduct Weight1109 g / 39.1 oz (without antennas)1109 g / 39.1 oz (without antennas)Power AdapterDC 54V (Passive PoE)
DC 48V (Active PoE)100-240V / 50-60Hz
DC 54V / DC 48VLED IndicatorsPAIR / RESET: Blue · PoE Converter Status: GreenIn the BoxWhat You’ll ReceivePackage contents vary slightly by model — refer to the column that matches your selection.ItemAX1800AX3000BE5100Outdoor Mesh Router / AP / Repeater111Omni Antennas44454V Power Adapter111PoE Converter111Ethernet Cable111Ethernet Cable Connectors11—Cable Ties44—Stainless Steel Hose Clamps——2Main Body Holder——1Silicone Pads222Wrench111Slotted Start / Installation Guide111Warm TipsBefore You Install01The PoE converter is not waterproof — please install it indoors.02Please make sure your Ethernet cable is CAT5E or above certified and shorter than 100m / 328ft.03Please install the product 2–3 meters above the ground for better performance.04Mesh interconnection support:
AX1800 (WN573HX1) → WN531AX2, WN583AX1, WN573HX1
AX3000 (WN573HX3) → WN586X3, WN572HP3 (latest firmware required), WN573HX3
BE5100 (WN573HBE2) → WN586X3, WN572HP3 (latest firmware required), WN573HBE2 05The real performance of the product may vary in accordance with different environmental conditions.WAVLINKOUTDOOR SERIES · WiFi 6 AX1800 / AX3000 · WiFi 7 BE5100 · IP67 · PoE
