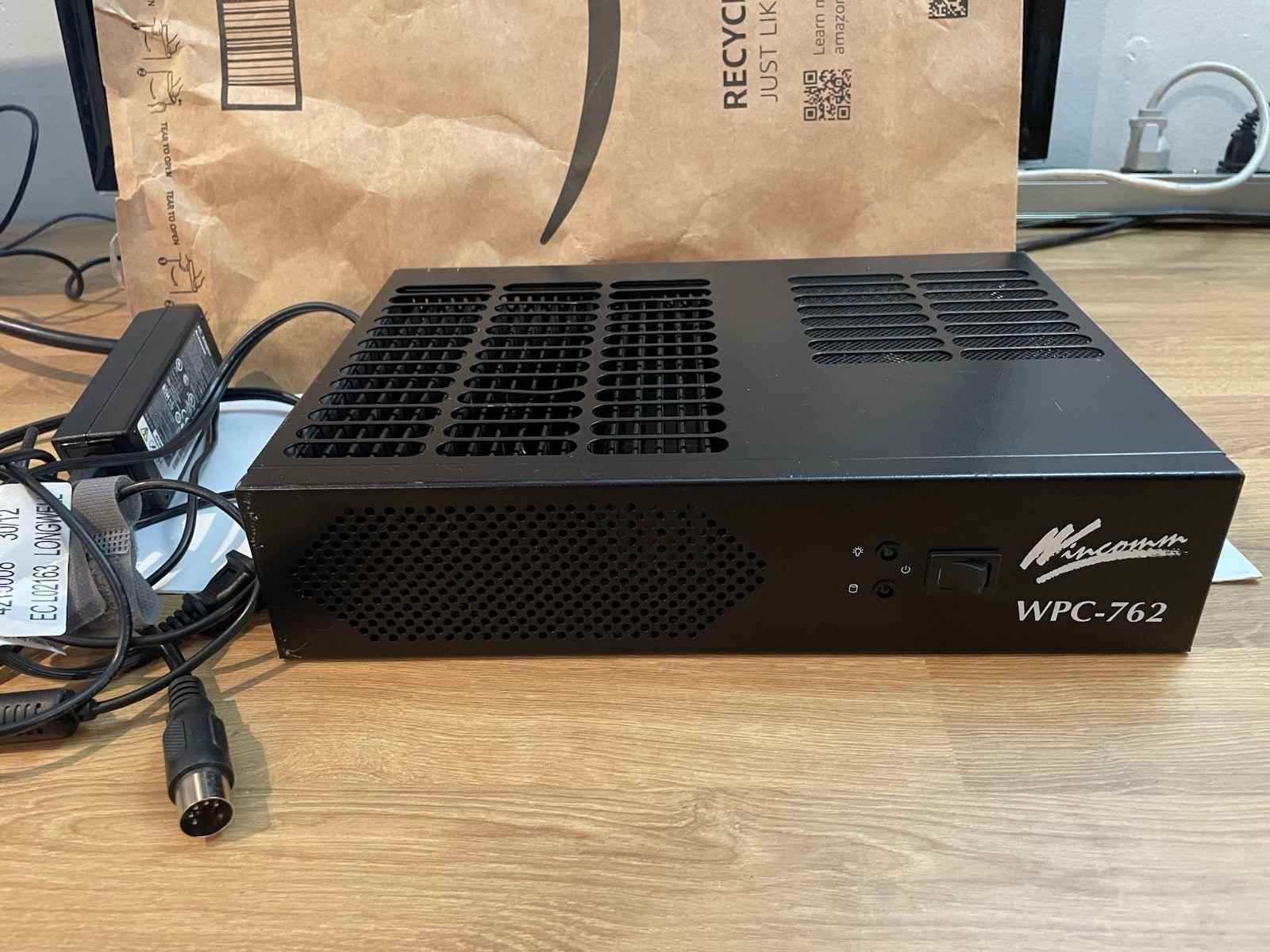

Vintage Rare Fanless Design Retro Computing Office CRT
Electronic signboard/electronic poster/digital POP/electronic POP controller
No Hard Drive Included!
⸻
MAIN EQUIPMENT SPECIFICATIONS
CPU
• Celeron-M 1.5GHz
Chipset
• Intel 855GME + ICH4
Cache
• 128KB / 256KB / 512KB Level 1 & Level 2 (CPU built-in)
BIOS
• 4MB AMI Flash BIOS
IDE
• IDE 1: 40-pin BOX header (Ultra DMA 33/66/100)
• IDE 2: 44-pin header
Main Memory
• 2.5V PC200 / PC266 / PC333 DDR SDRAM
• 1 × SO-DIMM socket
• 500MB
Audio
• Realtek ALC202 AC’97 Audio Codec
I/O Controller
• ICH4
Watchdog Timer
• 256 steps
• 0–255 seconds per step
• Software configurable
VGA Controller
• Intel 855GME integrated graphics
LAN Controller
• ICH4 + Intel 86562ET PHY
• 10/100 Base-T Fast Ethernet
Storage
• CF IDE SSD
⸻
EXPANSION SLOTS
• PCMCIA slot (removed in future production models)
⸻
EXTERNAL I/O TERMINALS
LAN
• RJ-45 connector × 1 (IEEE 802.3u 10/100Base-TX)
Video Output
• VGA: D-Sub 15-pin × 1
• DVI-D × 1 (switchable between VGA/DVI via hotkey)
Parallel
• D-Sub 25-pin × 1
Serial
• D-Sub 9-pin × 3
• RS-232 × 2
• RS-232 / RS-422 / RS-485 × 1
USB
• USB 2.0 × 4 ports
Keyboard / Mouse
• PS/2 × 1 (via included Y-cable)
GPIO
• Input: 4 bits
• Output: 4 bits
• Control via paid API
⸻
OTHER FEATURES
Power Button
• Non-locking push button
• Supports graceful shutdown
Reset Button
• Forced restart button
• Located between DC jack and PS/2 connector
LED Indicators
• Power: Green when ON
• HDD: Red flashing during access
Power Supply
• DC Input: +12V to +28V (Universal)
• AC Adapter: 100–240V, 47–63Hz
Environmental
• Operating Temperature: 0°C to 40°C
• Operating Humidity: 20% to 80% (non-condensing)
Physical
• Dimensions: 292mm × 200mm × 66mm
• Weight: Approx. 3.2kg
