Preowned Ubiquiti airMAX Titanium Sector RF Isolation Variable Beamwidth Antenna, Model AM-V5G-Ti.

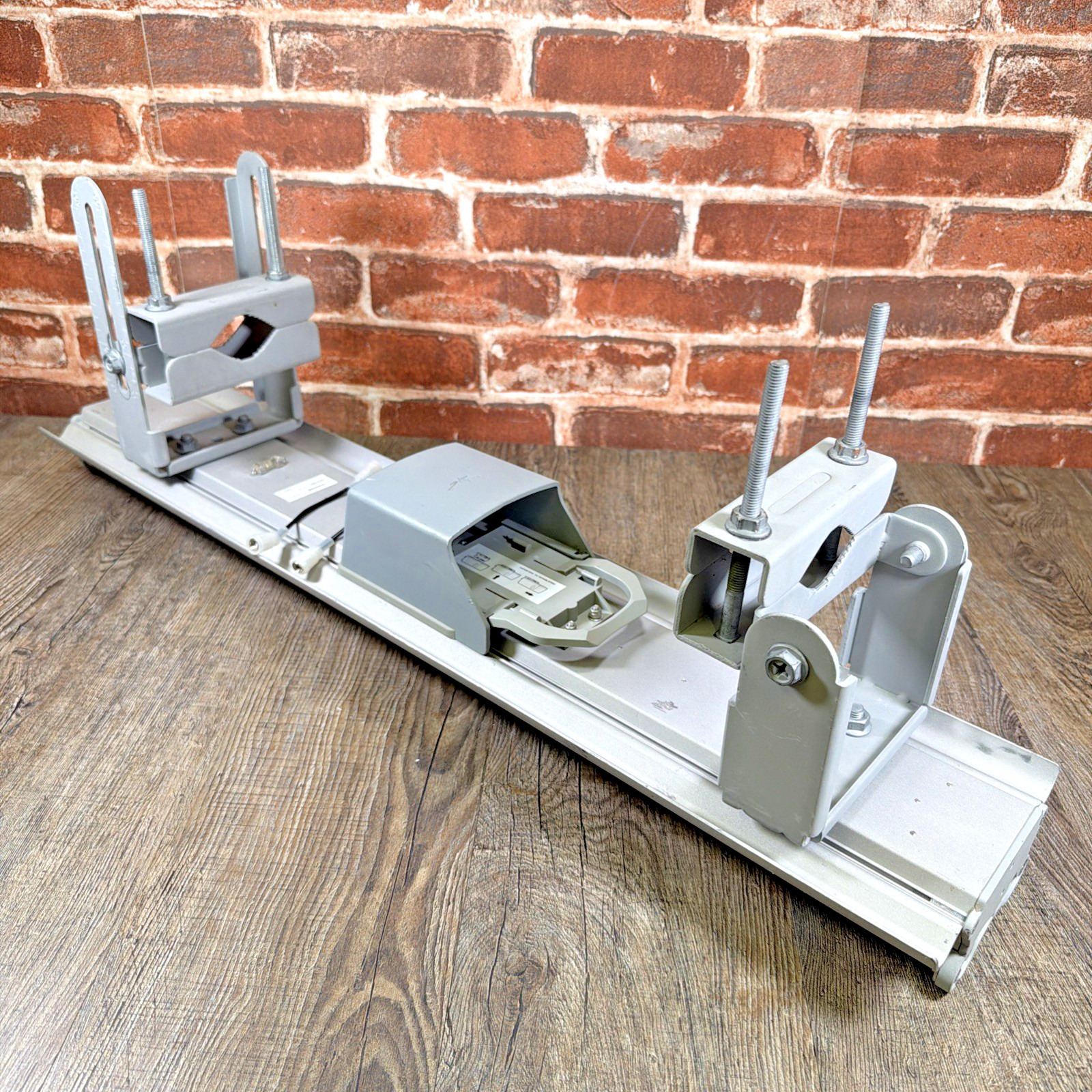

Includes the antenna, complete pole-mount assembly with mounting hardware, and two RF cables for connecting the antenna to a compatible radio. No original box or paperwork is included.

These antennas show signs of previous deployment, including scuffs, scratches, dust, and other cosmetic wear, but are complete and in working condition.

We have many of these available. While you may not receive the exact unit pictured, you will receive one in similarly excellent condition with the same included components.

Check out our other listings for Ubiquiti equipment. We also have a listing featuring this antenna paired with a complete Ubiquiti 5GHz Rocket M5 Titanium BaseStation / Radio (RM5-Ti).

Key Features

• 5.45 – 5.85 GHz frequency range

• Adjustable 60° / 90° / 120° beamwidth

• 21 dBi gain at 60°

• 20 dBi gain at 90°

• 19 dBi gain at 120°

• Dual linear polarization

• 2 × 2 MIMO

• Advanced RF isolation for reduced co-location interference

• Integrated Rocket mounting system

• Protective Rocket shroud

• 2 × weatherproof RP-SMA RF connectors

• 125 mph wind survivability

• Designed for Point-to-MultiPoint (PtMP) BaseStation applications

Compatible Radios

Ubiquiti lists the following compatible radios for the AM-V5G-Ti:

• RocketM5 Titanium (RM5-Ti)

• RocketM5 GPS

The antenna was specifically engineered for optimal performance when paired with a Rocket M Titanium AM-V5G-Ti
Product: airMAX Titanium Sector RF Isolation Variable Beamwidth Antenna
Frequency Range: 5.45 – 5.85 GHz
Beamwidth: 60° / 90° / 120°
Gain: 21 dBi @ 60° / 20 dBi @ 90° / 19 dBi @ 120°
Elevation Beamwidth: 4°
Electrical Downtilt: 2°
Polarization: Dual Linear
Cross-Pol Isolation: 25 dB Typical
Front-to-Back Ratio: 30 dB Typical
Maximum VSWR: 1.5:1
RF Connectors: 2 × RP-SMA, Weatherproof
Wind Survivability: 125 mph
Wind Loading: 37 lbs @ 120 mph
Dimensions: 721 × 149.1 × 75.7 mm
Weight: 3.72 kg with brackets
Mounting: Pole Mount
ETSI Specification: EN 302 326 DN2
Certifications: CE, FCC, IC

The AM-V5G-Ti is designed for outdoor Point-to-MultiPoint wireless networking and can be especially useful in rural properties, farms, ranches, large lots, and other locations where conventional wired networking may be difficult or expensive to install.

When paired with a compatible Ubiquiti Rocket radio, this sector antenna can provide a central wireless coverage area from which multiple remote locations can connect. For example, a property with a good internet connection could use a setup like this to establish wireless links to a nearby home, barn, shop, outbuilding, guest house, or other remote location.

With suitable line-of-sight, compatible equipment, and appropriate network configuration, a rural property owner could potentially use a PtMP network to extend an internet connection to neighbors or other nearby locations. Depending on terrain, antenna height, radio configuration, frequency conditions, and local regulations, Ubiquiti airMAX equipment can also be used for significantly longer-distance wireless links between properties.

This type of equipment can be particularly useful where trenching Ethernet or fiber between buildings or properties isn't practical. A properly designed wireless link can potentially span hundreds of feet, several miles, or even considerably farther under favorable conditions.

Actual range and performance will vary substantially based on antenna height, line-of-sight, terrain, vegetation, interference, radio selection, channel configuration, regulatory limits, and the equipment used at the remote locations. This antenna is a component of a wireless networking system and does not provide Wi-Fi or internet service by itself; a compatible Ubiquiti radio, network equipment, and an appropriate internet connection are required.

For larger rural properties, multiple buildings, farms, ranches, or neighboring properties, the adjustable 60° / 90° / 120° beamwidth can also provide flexibility in determining how broadly the wireless coverage is AM-V5G-Ti Titanium Sector Antenna

Not Included

• Original box

• Original or components not specifically shown in the photographs
