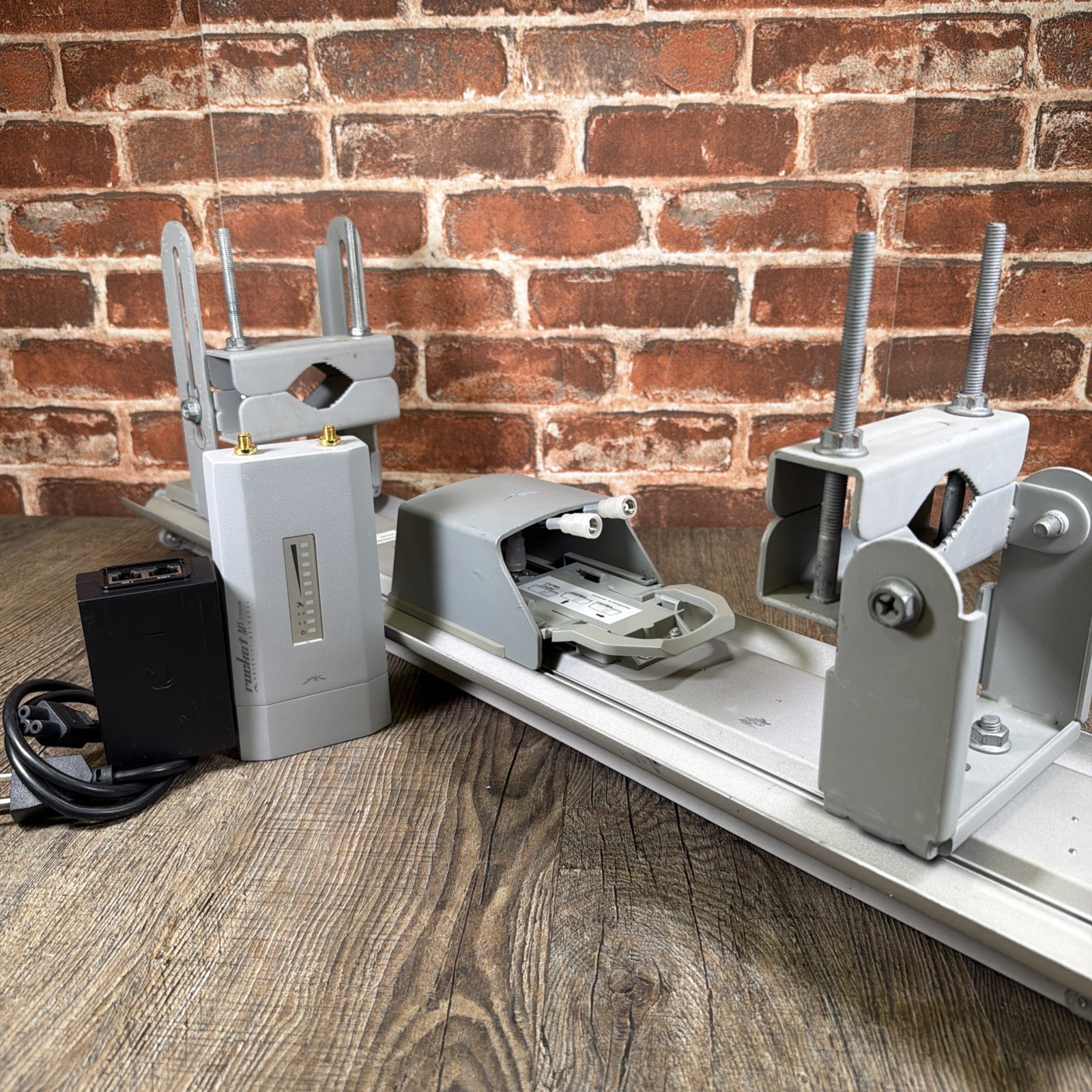

Preowned Ubiquiti airMAX Titanium wireless BaseStation combination featuring an AM-V5G-Ti Titanium Sector RF Isolation Variable Beamwidth Antenna paired with a Ubiquiti Rocket M5 Titanium BaseStation radio, Model RM5-Ti.
This is a complete outdoor 5 GHz sector radio setup, including the antenna, Rocket M5 Titanium radio, pole-mount assembly, mounting hardware, two RF antenna cables, and Ubiquiti-branded PoE injector / power supply.
The equipment shows signs of previous deployment, including scuffs, scratches, dust, and other cosmetic wear, but is complete and in working condition.
We have multiple sets available. While you may not receive the exact units pictured, you will receive a set in similarly excellent condition with the same included components.
No original boxes or paperwork are included. Includes only the equipment and accessories listed below.
Check out our other listings for Ubiquiti equipment, including additional airMAX antennas, radios, and wireless networking AM-V5G-Ti airMAX Titanium Sector antenna
Ubiquiti Rocket M5 Titanium BaseStation radio, RM5-Ti
Complete pole-mount assembly
Mounting hardware
Two RF antenna cables
Original Ubiquiti-branded PoE injector / power supply (version of power supply may vary)
Not Included
AM-V5G-Ti Titanium Sector Antenna
The AM-V5G-Ti is an adjustable-beamwidth 5 GHz sector antenna designed for outdoor Point-to-MultiPoint (PtMP) wireless networking. The antenna can be configured for 60°, 90°, or 120° coverage, allowing the same antenna platform to be adapted to different deployment requirements.
It features dual linear polarization, 2 × 2 MIMO, advanced RF isolation for reduced interference in co-location environments, and an integrated Rocket mounting system.
Antenna Specifications
Model: AM-V5G-Ti
Frequency Range: 5.45 – 5.85 GHz
Beamwidth: 60° / 90° / 120°
Gain: 21 dBi @ 60° / 20 dBi @ 90° / 19 dBi @ 120°
Elevation Beamwidth: 4°
Electrical Downtilt: 2°
Polarization: Dual Linear
Cross-Pol Isolation: 25 dB Typical
Front-to-Back Ratio: 30 dB Typical
Maximum VSWR: 1.5:1
RF Connectors: 2 × RP-SMA, Weatherproof
Wind Survivability: 125 mph
Wind Loading: 37 lbs @ 120 mph
Dimensions: 721 × 149.1 × 75.7 mm
Weight: 3.72 kg with brackets
Mounting: Pole Mount
ETSI Specification: EN 302 326 DN2
Certifications: CE, FCC, IC
Rocket M5 Titanium Radio
The RM5-Ti Rocket M5 Titanium is a 5 GHz outdoor BaseStation radio designed to be paired with Ubiquiti airMAX sector and dish antennas. In this configuration, it mounts directly to the AM-V5G-Ti sector antenna to create a complete outdoor 5 GHz BaseStation.
The Rocket M5 Titanium supports 2 × 2 MIMO and is designed for high-performance Point-to-MultiPoint wireless networks.
Potential Uses
This combination is particularly well suited to rural properties, farms, ranches, large parcels, and other locations where extending a network connection over distance is difficult or expensive using conventional cabling.
A typical application could involve placing the AM-V5G-Ti and Rocket M5 Titanium at an elevated location with a good line of sight and using it as the central BaseStation for multiple remote wireless connections.
For example, a property owner with a reliable internet connection could potentially use a setup like this to extend network or internet connectivity to:
A second home or guest house
Barns and agricultural buildings
Workshops and shops
Detached garages
Remote properties
Neighboring homes
Remote cameras or other network-connected equipment
With suitable line-of-sight and appropriately configured equipment at the receiving locations, a PtMP network can potentially distribute an internet connection to multiple nearby locations. This can be particularly interesting in rural areas where neighbors may be close enough to share infrastructure but too far apart for practical Ethernet or fiber installation.
Depending on terrain, antenna height, vegetation, interference, radio configuration, frequency availability, and regulatory limitations, Ubiquiti airMAX equipment can support wireless links ranging from relatively short building-to-building connections to links extending several miles or more under favorable conditions.
The 60° / 90° / 120° adjustable beamwidth also provides flexibility in determining the area covered by the BaseStation. A narrower configuration can concentrate coverage toward a particular area, while a wider configuration can provide broader coverage around the installation.
Actual range and performance will vary substantially depending on the environment and equipment used at the remote locations. This equipment does not provide internet service by itself. An appropriate internet connection, network equipment, and compatible Ubiquiti radios or CPE devices at the remote locations are / Tested / Working
The equipment has signs of previous deployment, including scuffs, scratches, dust, and general cosmetic wear. These are used commercial networking components and should not be expected to look new.
