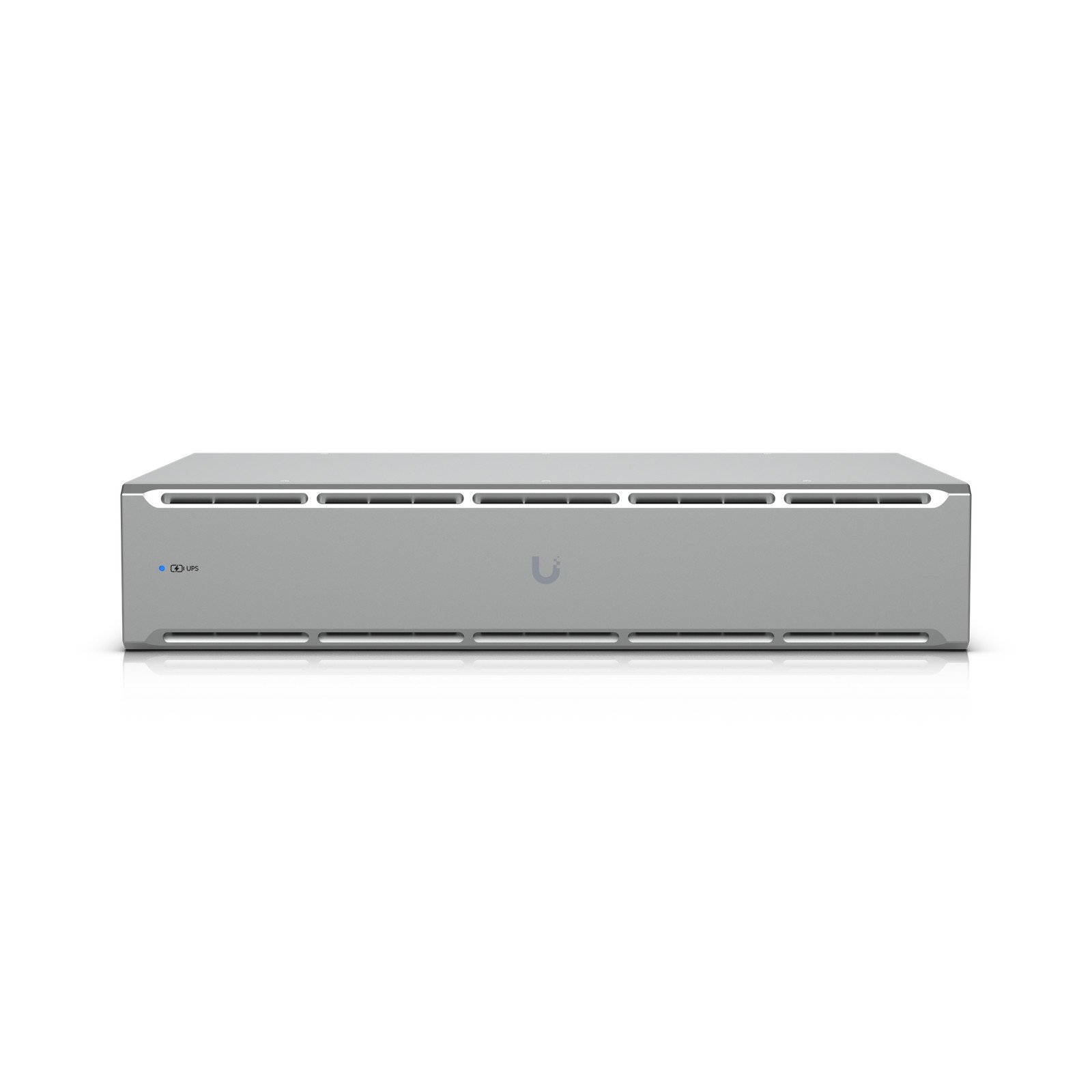

UPS 2U Model: UPS-2U-US Product Description
UniFi managed 1.44kVA rackmount uninterruptible power supply with 4 backup and 4 surge outlets, a field replaceable battery, 216Wh, half load (500W) runtime of 8 minutes. Supports Graceful Shutdown for UNVR and UNAS, NUT compatibility for 3-party devices.
Technical Specifications Networking Interface(1) 100/10 MbE port for network connection(2) GbE ports for surge in/outPower Method(1) TN system, 120V AC, 12A Max., 50/60 HzPower(1) OVC II AC in: NEMA 5‑15P, 1.8 m (5.9 ft) non-removable power cord(4) Battery backup/surge protection: NEMA 5‑15R(4) Surge protection: NEMA 5‑15RForm FactorRack mount (2U)Dimensions442.4 x 300 x 87.4 mm(17.4 x 11.8 x 3.4")Weight14 kg (30.9 lb)NDAA CompliantYesCertificationsFCC, IC, UL 1778, CSA C22.2 No. 107.3Ambient Operating Temperature0 to 40° C (32 to 104° F)Ambient Operating Humidity0 to 95% noncondensingAC Voltage Regulation±10% (Battery mode)Ambient Storage Temperature-20 to 50° C (-4 to 122° F)Battery Charging Time6-8 hours recovery to 90% capacityBattery Type(2) Lead Acid 12V, 9AhButtons(1) Power(1) Factory resetCapacity1,440VA/1,000WEnclosure MaterialGalvanized steelFrequency RangeAC mode: 50/60 Hz ±5 Hz (Auto sensing)Battery mode: 60 Hz ±1 HzInput Voltage Range89–145V ACManagementEthernetNominal Input Voltage120V ACOperating Altitude3,000 m (1.9 mi)Operating EnvironmentPollution Degree 2Output Short-Circuit CurrentIpeak 348.0AIrms 115.1AOutput Voltage120V ACOverload at Battery Mode110% shutdown in 5 sec120% shutdown immediatelyOverload at On-Line Mode110% 5 min go to fault120% go to fault immediatelyRuntimeFull load: 2.3 minHalf load: 8 minShort Circuit Protection at On-Line ModeBreaker, 250V AC, 15AStatusOff: device not turned onFlashing white: initializing / factory defaultSteady white: waiting for adoptionSteady blue: device adoption and workingFlashing blue: battery modeAlternating white/blue: firmware upgradingRapid flashing blue: locateSteady red: warningFlashing red: low batteryTransfer Time6 ms typical; 10 ms max. (Battery mode)TypeLine interactiveWave FormSimulated sine wave (Battery mode)WeatherproofingIP20 📦 Brand New - Factory Sealed 🚚 Ships with Tracking
