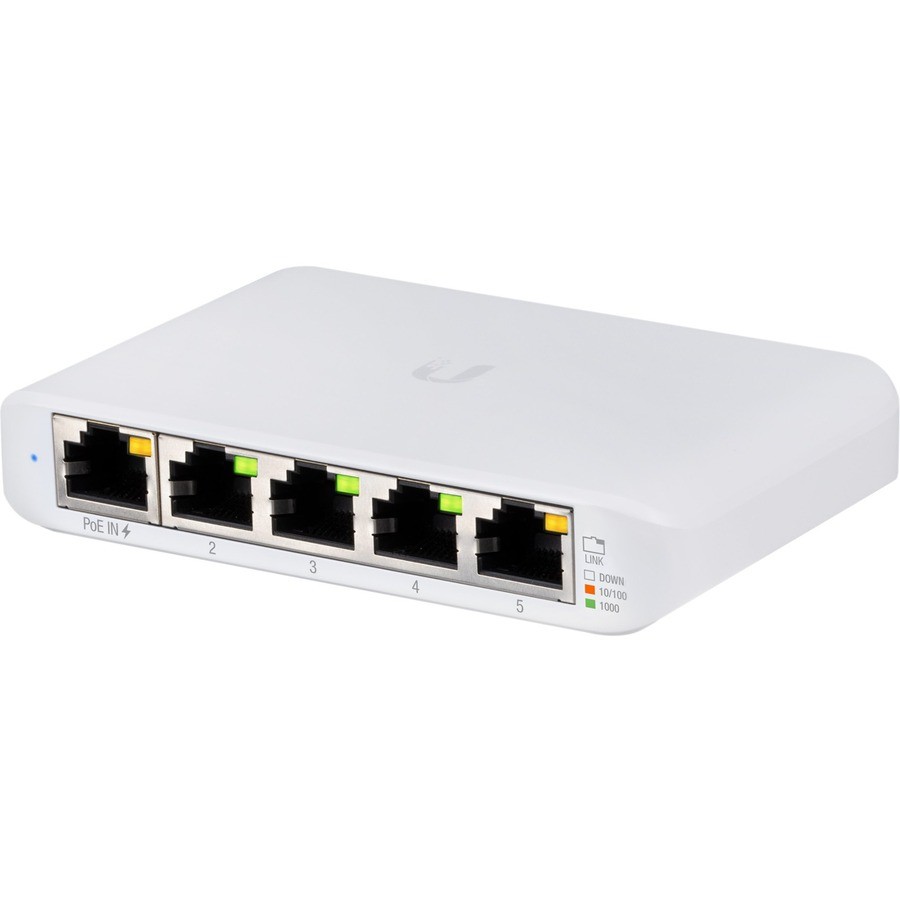

Expand your network with the UniFi® Switch Flex Mini, part of the Ubiquiti® UniFi Enterprise System.Compact Desktop DesignThe cost-effective UniFi Switch Flex Mini can be discreetly integrated into any environment.Copper ConnectivityFive RJ45 ports offer 10/100/1000 links. One port also supports 802.3af/at PoE input.Efficient Use of EnergyThe UniFi Switch Flex Mini uses only a maximum of 2.5W.For your convenience, it can be powered by 802.3af/at PoE or a 5V, 1A USB-C power adapter.Switching PerformanceThe UniFi Switch Flex Mini offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.Scalable UniFi Network Network ApplicationManagement CapabilitiesThe UniFi Network™ Application can provision UniFi devices, map out networks, and quickly manage system traffic. Important network details are logically organized for a simplified, yet powerful, interface.Network OverviewFrom a single pane of glass, view network topology and configuration, real-time statistics, and debugging metrics. Monitor your network's vitals and make on-the-fly adjustments as needed.Multi-Site ManagementA single controller running in the cloud can manage multiple sites: multiple, distributed deployments and multi-tenancy for managed service providers. Each site is logically separated and has its own configuration, maps, statistics, guest portal, and administrator accounts.Deep Packet InspectionUbiquiti's proprietary Deep Packet Inspection (DPI) engine includes the latest application identification signatures to track which applications (and IP addresses) are using the most bandwidth.Detailed AnalyticsThe UniFi Network Application provides configurable reporting and analytics to manage large user populations and expedite troubleshooting. Advanced search and sorting capabilities make network management more efficient.Software FeaturesThe UniFi Network Application software offers the following features for the UniFi Switch Flex Mini:
- Centralized configuration management (including configuration cloning)
- Auto-MDIX automatically adjusts as needed for straight through or crossover cable
Switch ConfigurationYou can access the UniFi Switch Flex Mini through the UniFi Network Application to configure a variety of features:
- Operation mode (switching or mirroring) per port
- Network/VLAN configuration
- Jumbo frame and flow control services
- Network settings
- Storm control setting per port
Switch Port StatusYou can also view status information for each port:
- Connection speed and duplex mode
- TX/RX data rates
- Network/VLAN setting
More from the Manufacturer
- Compact Desktop Footprint
- Energy-Efficient Design
- Powered by 802.3af/at PoE or USB Type C
