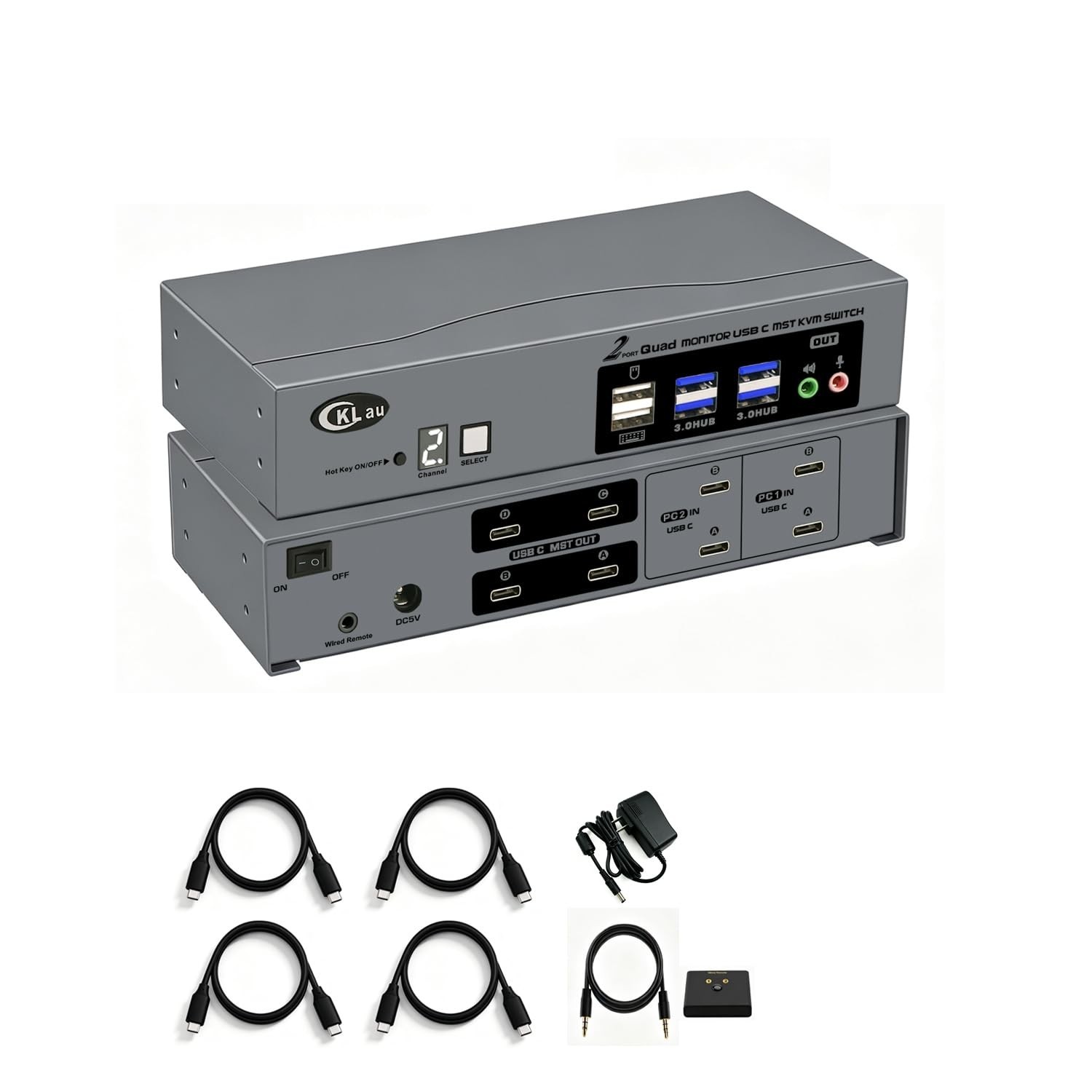

The CKLau CKLau-624T-MST is a USB-C MST KVM switch box that controls 2 computers across 4 monitors. Each computer connects using two full-featured USB-C cables. It requires host USB-C, Thunderbolt 3/4, or USB4 ports that support DisplayPort Alt Mode and MST; USB-C data-only ports are not supported.
The switch uses fixed display group mapping: Input A drives Monitor A and Monitor B, while Input B drives Monitor C and Monitor D. It supports up to four 4K@60Hz displays simultaneously in Windows extended mode. On macOS, which does not support MST extended displays, monitors within the same output group display identical content (mirror mode).
The unit includes 3 USB 3.0 ports with transfer speeds up to 5Gbps, 3.5mm audio and microphone jacks, front-panel push-button switching, and a wired remote control. It is powered by a dedicated DC power adapter. The housing is metal, silver in color, and mounts on a tabletop. Included components are the KVM, USB-C cables, and a wired remote.
Specifications:
Brand: CKLau
Manufacturer: CKLAU TECHNOLOGIES INC.
Part Number: CKLau-624T-MST
Type: KVM Switch Box
Color: Silver
Material: Metal
Number of Positions: 2
Circuit Type: 2-way
Computers Supported: 2
Monitors Supported: 4
Display Support: Up to four 4K@60Hz
USB-C Connections: Two per computer
Compatible Devices: USB-C, Thunderbolt 3/4, USB4 computers
USB Hub: 3 USB 3.0 ports up to 5Gbps
Audio: 3.5mm audio and microphone jacks
Switching: Front-panel push button, wired remote control
Operating Voltage: 5 volts
Current Rating: 2 A
Connector Type: Plug In
Contact Type: Normally Open
Contact Material: Alloy Steel
Terminal: Solder
Switch Type: Push Button
Operation Mode: ON-OFF
Mounting Type: Tabletop
International Protection Rating: IP44
Lower Temperature Rating: 30 F
Upper Temperature Rating: 100 F
Item Dimensions: 8 x 3 x 1 inches
Certifications: CE, FCC
Included Components: KVM, USB-C cables, Wired Remote
