The Mobo tested with a fresh win98se setup.
All the components works together without issues.

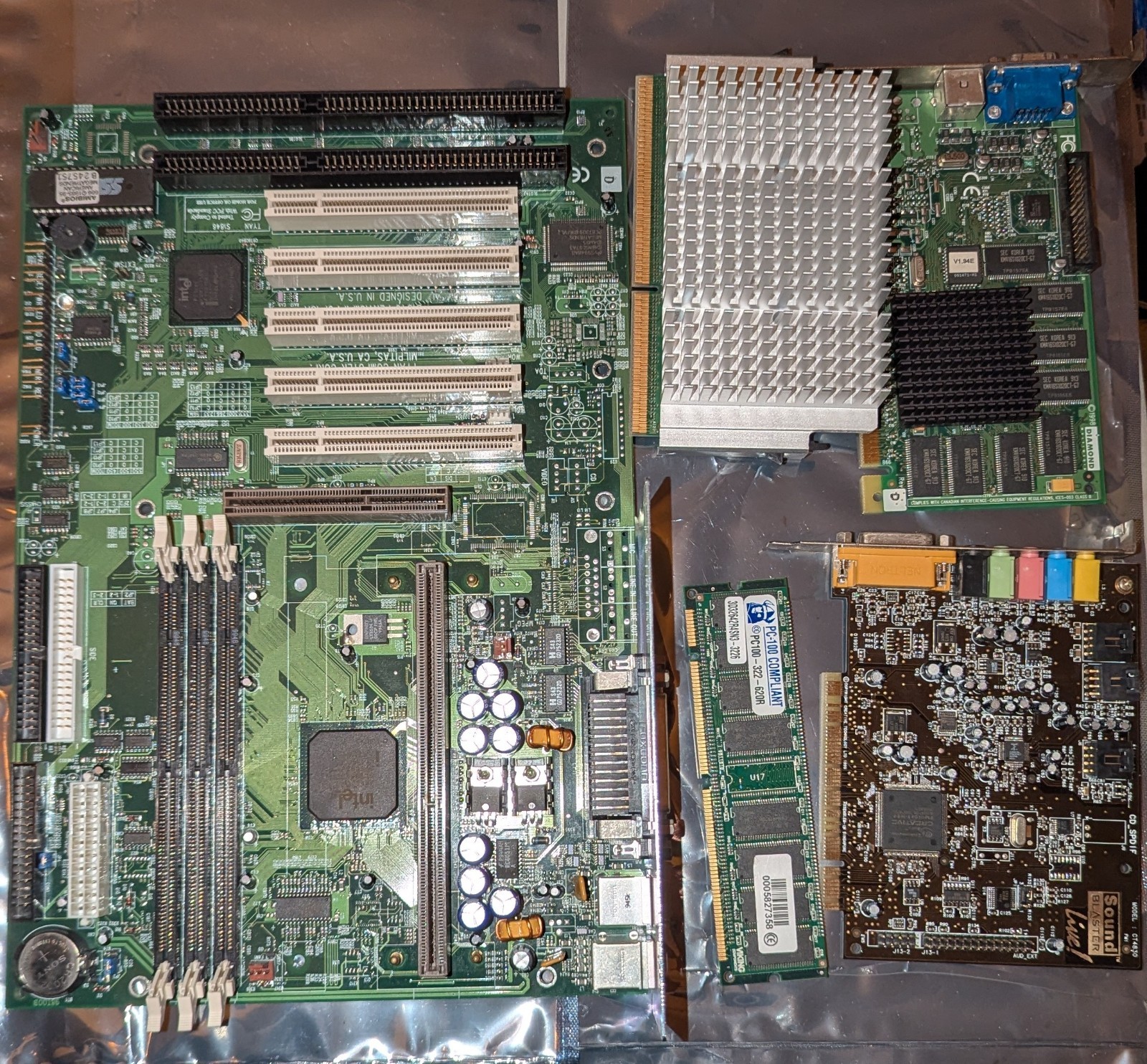

FULL PC SET-UP!
The package will include:
-- Motherboard with silver back -shield
-- SdRam UDIMM vicking 256MB
-- CPU PIII FANLESS (FSB 100)
-- Diamond Viper V550 (TNT) 16MB AGP
-- SB live CT 4830
Spec's
Tyan S1846, also known as the Tsunami ATX, is a classic Slot 1 motherboard based on the Intel 440BX chipset. Released in the late 1990s, it was recognized for its stability and performance in the Pentium II and III era.
Key Technical Specifications
- Processor Support: Supports a single Intel Pentium II, Pentium III, or Celeron processor via a Slot 1 (Slot-242) interface.
- Front Side Bus (FSB): Officially supports 66MHz and 100MHz. While BIOS settings may show speeds up to 133MHz, 133MHz CPUs are not officially supported.
- Memory: Features three 168-pin DIMM sockets supporting up to 768MB of SDRAM (PC100). It supports ECC (Error-Correcting Code) memory.
- 2 x 16-bit ISA slots (one shared with a PCI slot).
Storage & I/O:
- Two UltraDMA/33 EIDE ports and one floppy controller.
Dual USB 1.1 ports, two serial ports, and one parallel port.
- Chipset: The Intel 440BX is widely considered one of the most reliable and highest-performing chipsets for the Slot 1 platform.
Retro Compatibility: Due to its combination of AGP, PCI, and ISA slots, it is a popular choice for retro gaming builds requiring support for both older ISA sound cards and newer AGP graphics
If you're inside EU I will reduce the shipping cost by 5$
