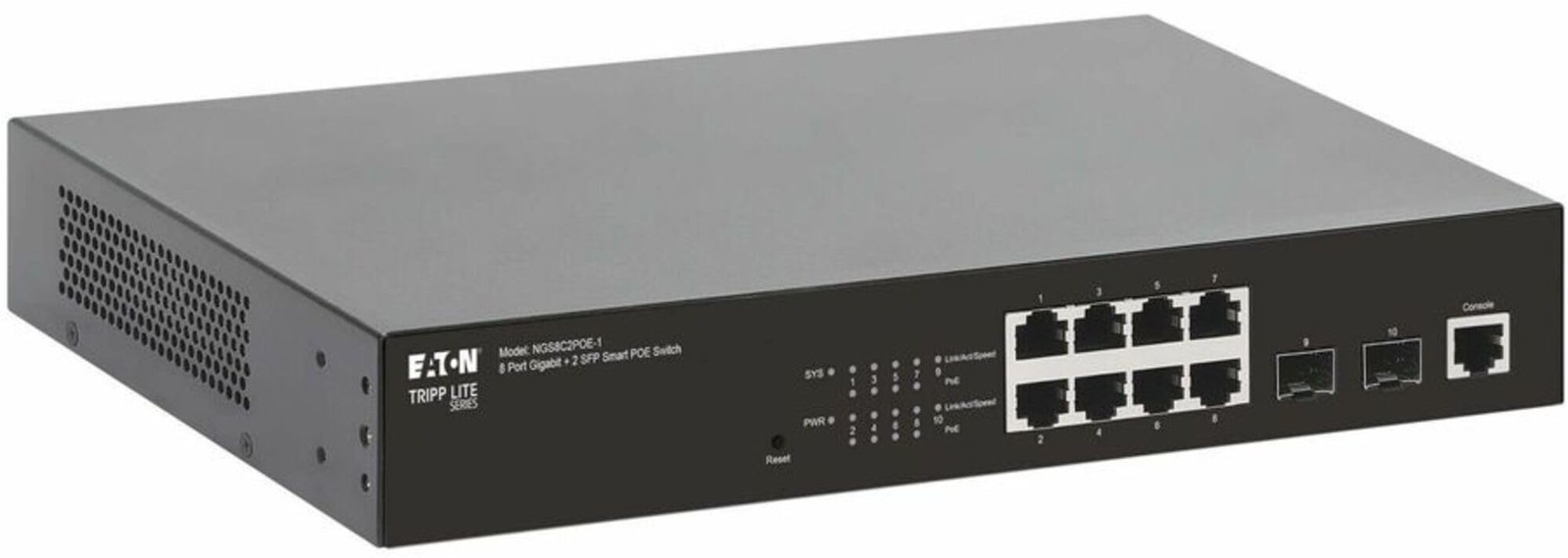

Tripplite NGS8C2POE1 Managed 8-Port Gigabit PoE+ Switch Tripplite NGS8C2POE1 Managed 8-Port Gigabit PoE+ Switch
International Customers: All electronic products are packaged for sale in the US with US voltage.
Package Contents: NGS8C2POE-1 Ethernet Switch Rack-mounting Hardware 4 x Rubber Feet C14 to C13 power cord, 5 ft. (1.5 m) Owner's Manual
Certifications & Standards: CAN/CSA-C22.2 No. 62368-1 (Canada) IEC 62368-1 UL 62368-1 CE (Europe) FCC Part 15 Class B (USA) UKCA
Application/Usage:
Network
Data Compliance: Restriction of Hazardous Substances (RoHS)
Product Description
This item is brand-new, factory sealed.
Enterprise Managed Gigabit Ethernet Switch Connects Your Network Devices to a LAN
This space-saving desktop switch transmits data over a Gigabit Ethernet (GbE) network. Eight auto-negotiating 10/100/1000 Mbps ports send data via Cat5e/6/6a/8 cable only to the computers, routers, hubs and other devices designated to receive it, which improves the efficiency and potential throughput of the network. LEDs indicate when the switch is powered on and which Ethernet ports are connected and showing activity.
Recommended for IT Managers in Server Message Block (SMB) and Enterprise Network Installs
The NGS8C2POE-1 is ideal for IT pros needing a high-performance managed network switch for white space installations. It is also recommended for data centers using Layer 2 and Layer 3 management of connected servers, as well as small installations that manage multiple products within their network closets.
Supports Power over Ethernet to Save You Money and Give You More Installation Choices
Because this network switch supports Type 2 PoE+, it can supply the power to operate compatible PoE devices, such as wireless LAN access points and bridges, VoIP phones and/or IP video cameras. This saves you the expense and effort of purchasing, connecting and installing individual power supplies for each device. It also helps you install PoE devices in areas far away from AC outlets, such as poles or ceilings. RJ45 ports support up to 30W per port with a total PoE budget of 140W.
Built-In Web Smart Management Software
The Web Smart software provides rich Layer 2 functionality for monitoring and controlling connected equipment via a simple web interface. VLAN, trunking, VPN, port monitoring and other features improve network efficiency and performance.
Dual Dedicated SFP Ports
Two GbE SFP ports connect to user-supplied SFP modules (sold separately) for uplinking data to other switches via optical fiber or copper. LEDs indicate interface traffic.
Compliant with Energy Efficient Ethernet Standards
The NGS8C2POE-1 automatically shifts unused ports to a low power state without interrupting its network connection. The switch meets IEEE 802.3ab, 802.3i, 802.3u, 802.3x, 802.3z, 802.1q, 802.1p, 802.3at, 802.3af and 802.3ad standards.
Works with the Most Popular Web Browsers
The NGS8C2POE-1 is browser-based and works independently from the connected computer's operating system. Because switch compatibility is based on common hardware standards, rather than system software dependencies, the NGS8C2POE-1 accommodates most platforms. Preferred web browsers include Google Chrome (on both Windows and macOS) and Microsoft Edge (Windows only).
Versatile Installation Options
The heavy-duty metal housing can be positioned on a level surface using the included rubber feet to minimize external vibration or mounted into 1U of an EIA-standard 19-inch rack using the included brackets and screws. The detachable C14 to C13 power cord connects to a protected UPS, generator or mains input AC source.
Package Contents:
- NGS8C2POE-1 Ethernet Switch
- Rack-mounting Hardware
- 4 x Rubber Feet
- C14 to C13 power cord, 5 ft. (1.5 m)
- Owner's Manual
SpecificationManagement & ProtocolsManageableYesPower DescriptionPlug/Connector TypeC14Power SourcePower SupplyPoE Budget140 WInput Voltage
PoE (RJ-45) PortYesPower Consumption171 WPhysical CharacteristicsProduct MaterialMetalForm Factor
- 8 x Gigabit Ethernet PoE+
- 2 x Gigabit Ethernet Expansion Slot
Total Number of Network Ports8I/O ExpansionsTotal Number of Expansion Slots2Number of SFP Slots2Expansion Slot TypeSFPGeneral InformationBrand NameTripp Lite seriesMarketing Information Enterprise Managed Gigabit Ethernet Switch Connects Your Network Devices to a LAN This space-saving desktop switch transmits data over a Gigabit Ethernet (GbE) network. Eight auto-negotiating 10/100/1000 Mbps ports send data via Cat5e/6/6a/8 cable only to the computers, routers, hubs and other devices designated to receive it, which improves the efficiency and potential throughput of the network. LEDs indicate when the switch is powered on and which Ethernet ports are connected and showing activity. Recommended for IT Managers in Server Message Block (SMB) and Enterprise Network Installs The NGS8C2POE-1 is ideal for IT pros needing a high-performance managed network switch for white space installations. It is also recommended for data centers using Layer 2 and Layer 3 management of connected servers, as well as small installations that manage multiple products within their network closets. Supports Power over Ethernet to Save You Money and Give You More Installation Choices Because this network switch supports Type 2 PoE+, it can supply the power to operate compatible PoE devices, such as wireless LAN access points and bridges, VoIP phones and/or IP video cameras. This saves you the expense and effort of purchasing, connecting and installing individual power supplies for each device. It also helps you install PoE devices in areas far away from AC outlets, such as poles or ceilings. RJ45 ports support up to 30W per port with a total PoE budget of 140W. Built-In Web Smart Management Software The Web Smart software provides rich Layer 2 functionality for monitoring and controlling connected equipment via a simple web interface. VLAN, trunking, VPN, port monitoring and other features improve network efficiency and performance. Dual Dedicated SFP Ports Two GbE SFP ports connect to user-supplied SFP modules (sold separately) for uplinking data to other switches via optical fiber or copper. LEDs indicate interface traffic. Compliant with Energy Efficient Ethernet Standards The NGS8C2POE-1 automatically shifts unused ports to a low power state without interrupting its network connection. The switch meets IEEE 802.3ab, 802.3i, 802.3u, 802.3x, 802.3z, 802.1q, 802.1p, 802.3at, 802.3af and 802.3ad standards. Works with the Most Popular Web Browsers The NGS8C2POE-1 is browser-based and works independently from the connected computer's operating system. Because switch compatibility is based on common hardware standards, rather than system software dependencies, the NGS8C2POE-1 accommodates most platforms. Preferred web browsers include Google Chrome (on both Windows and macOS) and Microsoft Edge (Windows only). Versatile Installation Options The heavy-duty metal housing can be positioned on a level surface using the included rubber feet to minimize external vibration or mounted into 1U of an EIA-standard 19-inch rack using the included brackets and screws. The detachable C14 to C13 power cord connects to a protected UPS, generator or mains input AC source. Product TypeEthernet SwitchProduct NameNGS8C2POE-1 Ethernet SwitchManufacturerEaton CorporationManufacturer Part NumberNGS8C2POE-1Product ModelNGS8C2POE-1Media & PerformanceEthernet TechnologyGigabit EthernetMaximum Data Transfer Rate128 MB/sMedia Type Supported
- Twisted Pair
- Optical Fiber
Network Technology
- IEEE 802.1p
- IEEE 802.1Q
- IEEE 802.3ab
- IEEE 802.3i
- IEEE 802.3u
- IEEE 802.3x
- IEEE 802.3z
- IEEE 802.3
- IEEE 802.3at
- IEEE 802.3af
Technical InformationFeatures
- Built-in Fan
- VLAN Segmentation
- Remote Monitoring (RMON)
- Broadcast Storm Control
- DHCP Snooping
- Energy Efficient
