Tripp Lite HDMI Over Cat5/6 Active Video Extender Kit Transmitter Receiver 1080p 200' (B126-1A1) Tripp Lite HDMI Over Cat5/6 Active Video Extender Kit Transmitter Receiver 1080p 200' (B126-1A1)
International Customers: All electronic products are packaged for sale in the US with US voltage.
Package Contents: B126-1A1 Video Extender/Console Screwdriver for Adjustment of Equalization 2 x Mounting Hardware 2 x External Power Supply Owner's manual
Certifications & Standards: HDCP TAA
TAA Compliant: Yes
Environmentally Friendly: Yes
Country of Origin: Taiwan
Product Description
This item is brand-new, factory sealed.

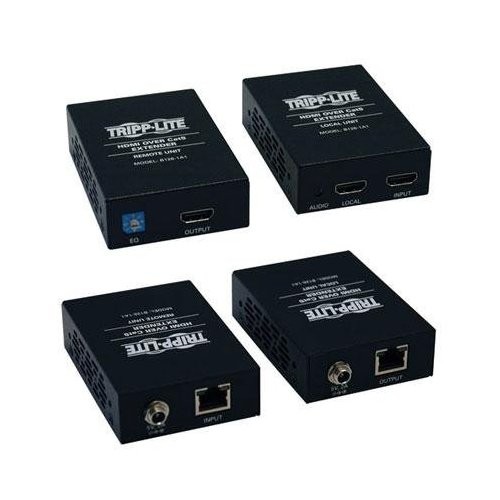

The tripp lite b126-1a1 active extender kit is the perfect solution for those who need to extend a hdmi signal over a long distance with a single cat5e/6 patch cable. In addition to connecting a remote display the local unit also provides a hdmi output for connecting to a local monitor. When using 24awg solid wire cat5e/6 cable (tripp lite n202-series) the b126-1a1 can extend a 1080i (60hz) signal up to 200 ft.; or a 1080p (60hz) signal up to 150 ft.. The remote unit comes with a built-in equalization setting which allows for adjustment of the video image. No need to make separate purchases; the b126-1a1 kit comes with both local and remote units. Both stereo audio and 7.1 channel surround sound are supported as well as hdcp protected content. Mounting hardware is included for both the local and remote units allowing them to be rackmounted wallmounted or pole mounted. Compliant with the federal trade agreements act (taa) for gsa schedule purchases. 1 year limited warranty. Key features two piece kit includes both local and remote units extends a 1080i (60hz) signal up to 200 ft.; or a 1080p (60hz) signal up to 150 ft. When using 24awg solid wire cat5e/6 cable (tripp lite n202-series) remote unit features a built-in equalization setting allowing for adjustment of the video image hdcp compatible compatible with both stereo audio and 7.1 channel surround sound audio mounting hardware included for both the local and remote units allowing them to be rackmounted wallmounted or pole mounted local unit includes a hdmi output for connecting a local monitor no software or drivers required compatible with all operating systems compliant with the federal trade agreements act (taa) for gsa schedule purchases 1 year limited warranty package includes b126-1a1 local unit b126-1a1 remote unit screwdriver for adjustment of equalization (x2) mounting hardware (x2) external power supply (input: 100-240v 50/60hz 0.5a output: 5v 2a) owner's manualPackage Contents:
- B126-1A1 Video Extender/Console
- Screwdriver for Adjustment of Equalization
- 2 x Mounting Hardware
- 2 x External Power Supply
- Owner's manual
SpecificationPhysical CharacteristicsForm Factor
Product ColorBlackColor FamilyBlackWarrantyLimited Warranty1 YearInterfaces/PortsNetwork (RJ-45)YesHDMI OutYesNumber of HDMI Inputs1HDMI InYesNumber of HDMI Outputs2Number of Network (RJ-45) Ports2General InformationBrand NameTripp Lite seriesMarketing Information The B126-1A1 transmits a 1080p (60Hz) signal to a monitor up to 150 ft. away using Cat5e/6 cable. To achieve maximum distance and resolution, use 24Awg Solid Wire Cat5e/6 cable. (Tripp Lite's N202-Series) The transmitter unit features an HDMI port for the connection of a local monitor. The receiver unit features a built-in Equalization control for adjustment of the video image. Supports 24-bit True Color (8-bits per channel), HDCP, 3D, and both stereo audio and 7.1 channel surround sound audio (7.1 channel surround sound signal will be Multi-Channel or PCM). Installation is simple. Connect the transmitter unit to an HDMI source using a Tripp Lite P568-Series HDMI cable (not included). Connect the receiver unit to a display using a Tripp Lite P568-Series HDMI cable (not included). Finally, connected the receiver to the RJ45 port on the transmitter using a single Cat5e/6 cable. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases. More from the Manufacturer Product TypeVideo Extender Transmitter/ReceiverProduct NameB126-1A1 Video Extender/ConsoleManufacturerEaton CorporationManufacturer Part NumberB126-1A1Product ModelB126-1A1Media & PerformanceTwisted Pair Cable StandardCategory 6Media Type SupportedTwisted PairTitleProduct TitleTripp Lite by Eaton HDMI over Cat5/6 Extender Kit Box-Style Transmitter/Receiver for Video/Audio Up to 150 ft. [45 m] TAA (B1261A1)Technical InformationMaximum Operating Distance150 ftNumber of Input Devices Supported2Connectivity TechnologyWiredNumber of Output Devices Supported2 Shipping
