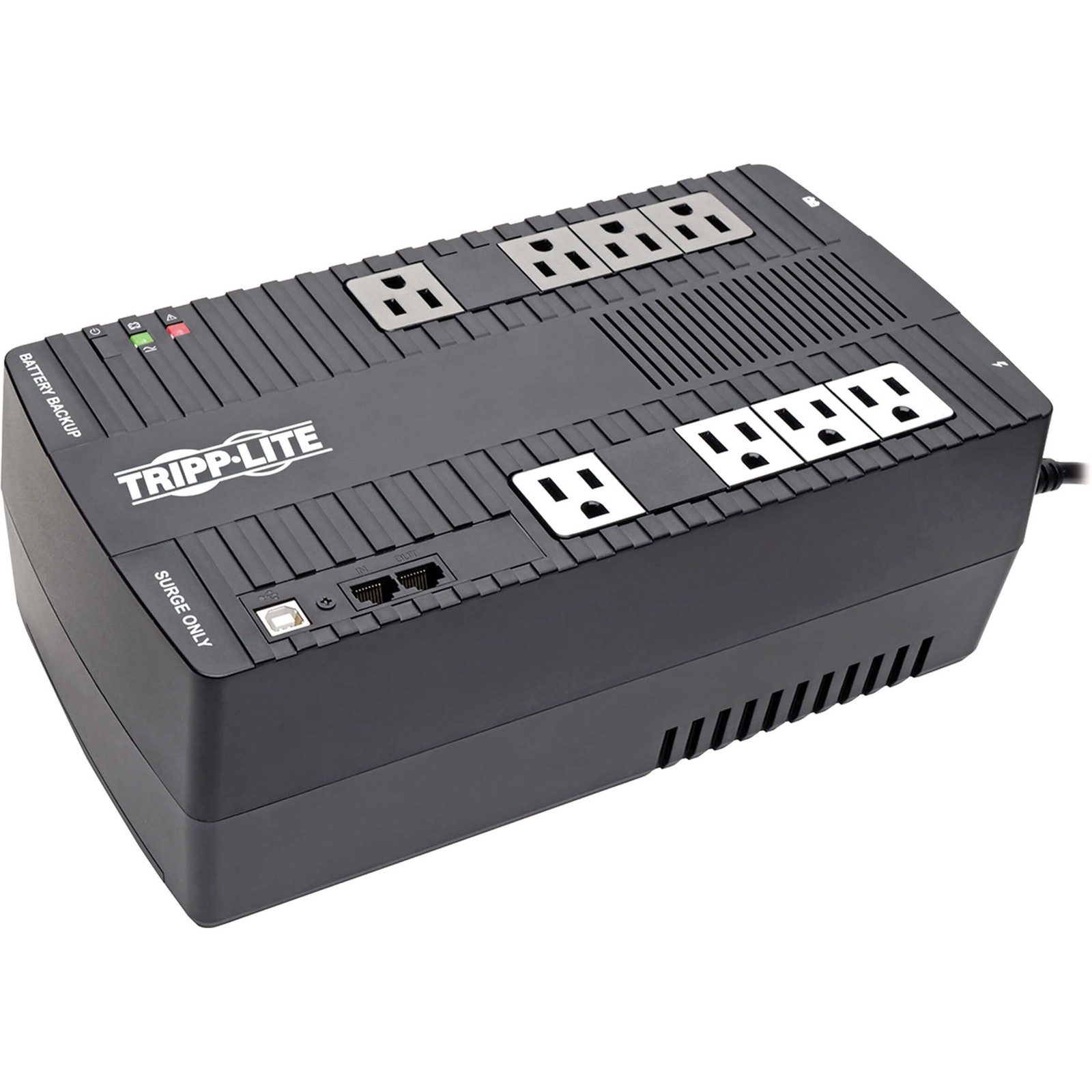

Tripp Lite UPS 550VA 300W Desktop Battery Back Up AVR Compact 120V USB RJ11 50/60Hz (AVR550U_3) Tripp Lite UPS 550VA 300W Desktop Battery Back Up AVR Compact 120V USB RJ11 50/60Hz (AVR550U_3)
International Customers: All electronic products are packaged for sale in the US with US voltage.
Package Contents: Desktop/Wall Mount Battery Backup Outlets USB cable Owner's manual
Certifications & Standards: Tested to UL1778 (USA) cUL1778 (Canada) NOM (Mexico) FCC Class B (Emissions) FCC Part 68 Industry Canada (Telecommunications)
Additional Information: Low voltage transfer to battery power: Switches to battery power as line voltage drops to 83V or lower / Resets to AC mode as line voltage increases to 87V or higher High voltage transfer to battery power: Switches to battery power as line voltage increases to 147V or higher / Resets to line power as line voltage drops to 143V or less Cold Start: Yes, inverter can be "cold started" to enable temporary AC output during a power failure Switches: Combination power off / on / self-test push button switch Typical Application: Basic PCs for home / home-office use, network workstations, audio/video equipment, home entertainment systems and other sensitive electronic devices. WatchDog compatibility: Yes, compatible with Tripp Lite's Watchdog system service to restore operation to locked equipment through soft reboot of application / OS or hard power off/on reboot of connected equipment - ideal for unattended kiosk applications Supports entry-level PC systems up to 17 minutes during blackout conditions Form factors supported: Ultra-compact desk/floor mount , mounting flanges enable wall-mount installation 8 output receptacles, 2 of which are widely spaced to accommodate large transformer plugs without blocking outlets 4 outlets feature full battery support and surge suppression, protecting computers, monitors and other vital system components from loss of power 4 additional outlets with surge suppression only are ideal for printers and other peripherals not requiring battery support HID-compliant USB interface enables full integration with built-in power management and auto shutdown features of Windows, Mac OS X and Linux
Software Included: PowerAlert UPS monitoring software
Assembly Required: No
Recycled: No
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Country of Origin: China
Product Description
This item is brand-new, factory sealed.
Protect home and office computer systems and electronics with this Line-Interactive UPS System. Some outlets have both battery backup and surge/noise protection, and some have surge/noise protection without battery backup. The surge-only outlets allow you to connect additional equipment without overloading the UPS or reducing the backup runtime available during an outage. Select outlets have extra-wide spacing to accommodate bulky AC adapters without blocking adjacent outlets. All Tripp Lite UPS systems also include built-in surge protection and noise filtering to shield your equipment from destructive transient voltages and electromagnetic (EMI/RFI) line noise. Use the HID-compliant USB port and your computers built-in power management features or the USB port with Tripp Lites free PowerAlert software to manage this UPS. Protection Type: DSL; Fax; Modem; Phone; Power; System VA: 550 VA; Backup Time at Half Load: 9 min @ 150 W; Lines: 1.
Power protection and battery backup for home and office computers and electronics.Protects your valuable equipment from damage, downtime and data loss.Battery backup supports equipment during outages.AVR corrects power sags (brownouts) and overvoltages.Surge protection blocks harmful transient voltages on AC and phone lines.The USB port connects to a computer for power management and automatic file saves.Global Product Type:Backup Systems
Global Product Type:Backup Systems Global Product Type:Backup Systems
Global Product Type:Backup Systems Global Product Type:Backup Systems
Global Product Type:Backup Systems Global Product Type:Backup Systems
Global Product Type:Backup Systems Protection Type:DSL
Protection Type:DSL Protection Type:Fax
Protection Type:Fax Protection Type:Modem
Protection Type:Modem Protection Type:Phone
Protection Type:Phone Protection Type:Power
Protection Type:Power System VA:550 VA
System VA:550 VA Backup Time at Half Load:9 min @ 150 W
Backup Time at Half Load:9 min @ 150 W Lines:1
Lines:1 Automatic Voltage Regulation (AVR):Yes
Automatic Voltage Regulation (AVR):Yes Multimedia Protection:DSL/Telephone
Multimedia Protection:DSL/Telephone Battery Recharge Time:4 h
Battery Recharge Time:4 h Connected Equipment Guarantee/Warranty:$100,000 Ultimate Lifetime Insurance
Connected Equipment Guarantee/Warranty:$100,000 Ultimate Lifetime Insurance Backup Time at Full Load:3 min @ 150 W
Backup Time at Full Load:3 min @ 150 W Jacks/Ports:RJ11
Jacks/Ports:RJ11 Connector/Port/Interface:USB
Connector/Port/Interface:USB Joules Of Surge Protection:420 J
Joules Of Surge Protection:420 J Noise Protection:EMI/RFI Noise Suppression
Noise Protection:EMI/RFI Noise Suppression Number of Outlets:8
Number of Outlets:8 Cord Length:6 ft
Cord Length:6 ft Telephone/Internet Protection:DSL
Telephone/Internet Protection:DSL Telephone/Internet Protection:Fax
Telephone/Internet Protection:Fax Telephone/Internet Protection:Modem
Telephone/Internet Protection:Modem Telephone/Internet Protection:Phone
Telephone/Internet Protection:Phone Color(s):Black
Color(s):Black Width:11.25"
Width:11.25" Height:3.5"
Height:3.5" Depth:6"
Depth:6" Backup Systems Alarm(s):Audible
Backup Systems Alarm(s):Audible Emergency Power Off (EPO):No
Emergency Power Off (EPO):No Input Frequency:60 Hz
Input Frequency:60 Hz Model Name/Number:AVR550U
Model Name/Number:AVR550U Number of Outlets/Type:4 UPS/Surge
Number of Outlets/Type:4 UPS/Surge Number of Outlets/Type:4 Surge Only
Number of Outlets/Type:4 Surge Only Backup Run Time:20 min
Backup Run Time:20 min Product Biodegradability in Days:0
Product Biodegradability in Days:0 Compliance Standards:CSA Certified
Compliance Standards:CSA Certified Compliance Standards:FCC Class B Certified
Compliance Standards:FCC Class B Certified Compliance Standards:NOM
Compliance Standards:NOM Compliance Standards:RoHS Compliant
Compliance Standards:RoHS Compliant Compliance Standards:UL Listed
Compliance Standards:UL Listed Compliance Standards:CSA Certified
Compliance Standards:CSA Certified Compliance Standards:FCC Class B Certified
Compliance Standards:FCC Class B Certified Compliance Standards:NOM
Compliance Standards:NOM Compliance Standards:RoHS Compliant
Compliance Standards:RoHS Compliant Compliance Standards:UL Listed
Compliance Standards:UL Listed Compliance Standards:CSA Certified
Compliance Standards:CSA Certified Compliance Standards:FCC Class B Certified
Compliance Standards:FCC Class B Certified Compliance Standards:NOM
Compliance Standards:NOM Compliance Standards:RoHS Compliant
Compliance Standards:RoHS Compliant Compliance Standards:UL Listed
Compliance Standards:UL Listed Compliance Standards:CSA Certified
Compliance Standards:CSA Certified Compliance Standards:FCC Class B Certified
Compliance Standards:FCC Class B Certified Compliance Standards:NOM
Compliance Standards:NOM Compliance Standards:RoHS Compliant
Compliance Standards:RoHS Compliant Compliance Standards:UL Listed
Compliance Standards:UL Listed Pre-Consumer Recycled Content Percent:0%
Pre-Consumer Recycled Content Percent:0% Post-Consumer Recycled Content Percent:0%
Post-Consumer Recycled Content Percent:0% Total Recycled Content Percent:0%
Total Recycled Content Percent:0% Disclaimer Statement:Run Time based on single PC load with 15" flat panel monitor.
Disclaimer Statement:Run Time based on single PC load with 15" flat panel monitor. Disclaimer Statement:Run Time based on single PC load with 15" flat panel monitor.
Disclaimer Statement:Run Time based on single PC load with 15" flat panel monitor. Disclaimer Statement:Run Time based on single PC load with 15" flat panel monitor.
Disclaimer Statement:Run Time based on single PC load with 15" flat panel monitor. Disclaimer Statement:Run Time based on single PC load with 15" flat panel monitor.
Disclaimer Statement:Run Time based on single PC load with 15" flat panel monitor. SpecificationPower DescriptionLoad Capacity (Watt)300 WInput Frequency60 HzSurge Energy Rating316 JInput Voltage120 V ACOutput Voltage
Load Capacity (VA)550 VAInput Current12 AWaveform TypePulse-width Modulated Sine WaveOutput Frequency60 HzPhysical CharacteristicsForm FactorUltra-compact Desktop/Tower/Wall MountWeight (Approximate)13.69 lbProduct ColorBlackHeight4.33"Color Warranty Information 2-year warranty. $100,000 Ultimate Lifetime Insurance (USA, Puerto Rico and Canada only). Limited Warranty3 Year LifetimeControls/IndicatorsStatus Indicators 2 Status LEDs; GREEN indicates power status and operating mode / RED indicates battery-low, overload, replace-battery and fault conditions Interfaces/PortsUSBYesUSB (HID Compliant) PortYesBattery InformationBackup/Run Time (Full Load)2 MinuteBattery Life6 YearDC System Voltage12 V DCReplaceable BatteryYesBackup/Run Time (Half Load)9 MinuteTypical Battery Recharge Time8 HourGeneral InformationBrand NameTripp Lite seriesMarketing InformationAVR Series Line-Interactive UPS System offers 550VA ultra-compact line-interactive protection for PCs and workstations. System maintains 120 volt nominal output over an input range of 83 to 147 volts. Workstation-optimized features include USB port (HID-PDC compliant), single-line telephone/DSL surge suppression, space-saving right-angle input plug, four battery/surge-protected outlets and four additional surge-only outlets (8 total). USB port (included cable) works with free unattended shutdown software. Housing is mountable. More from the Manufacturer Product TypeLine-interactive UPSProduct NameDesktop/Wall Mount Battery Backup OutletsManufacturerEaton CorporationManufacturer Part NumberAVR550UProduct ModelAVR550UProduct SeriesAVRPackaged Quantity1 EachTitleProduct TitleTripp Lite by Eaton UPS 550VA 300W Line-Interactive UPS - 8 NEMA 5-15R Outlets AVR 120V 50/60 Hz USB Desktop/Wall Mount (AVR550U)Technical InformationReceptacle TypeNEMA 5-15RReceptacle Detail8 x NEMA 5-15RPhaseSingle PhaseEMI/RFI Noise FilterYesAVR RangeBoost +18% / Buck -15%Number of Surge-only Outlets4Number of Battery & Surge Outlets4Transfer Time6 msEnergy SavingGreater than 95% efficiency - GREEN UPSPlug/Connector TypeNEMA 5-15PCord Length6 ftDataline ProtectionRJ-11Application/Usage
- Gaming Console
- ATM
- Security System
- Digital Signage
- Media Center
- Home/Office
- Home class="link_list">
- Battery Backup
- Low ConditionsMaximum Operating Temperature104°F (40°C)Storage Temperature5°F (-15°C) - 113°F (45°C)Maximum Operating Elevation10000 ft Shipping
