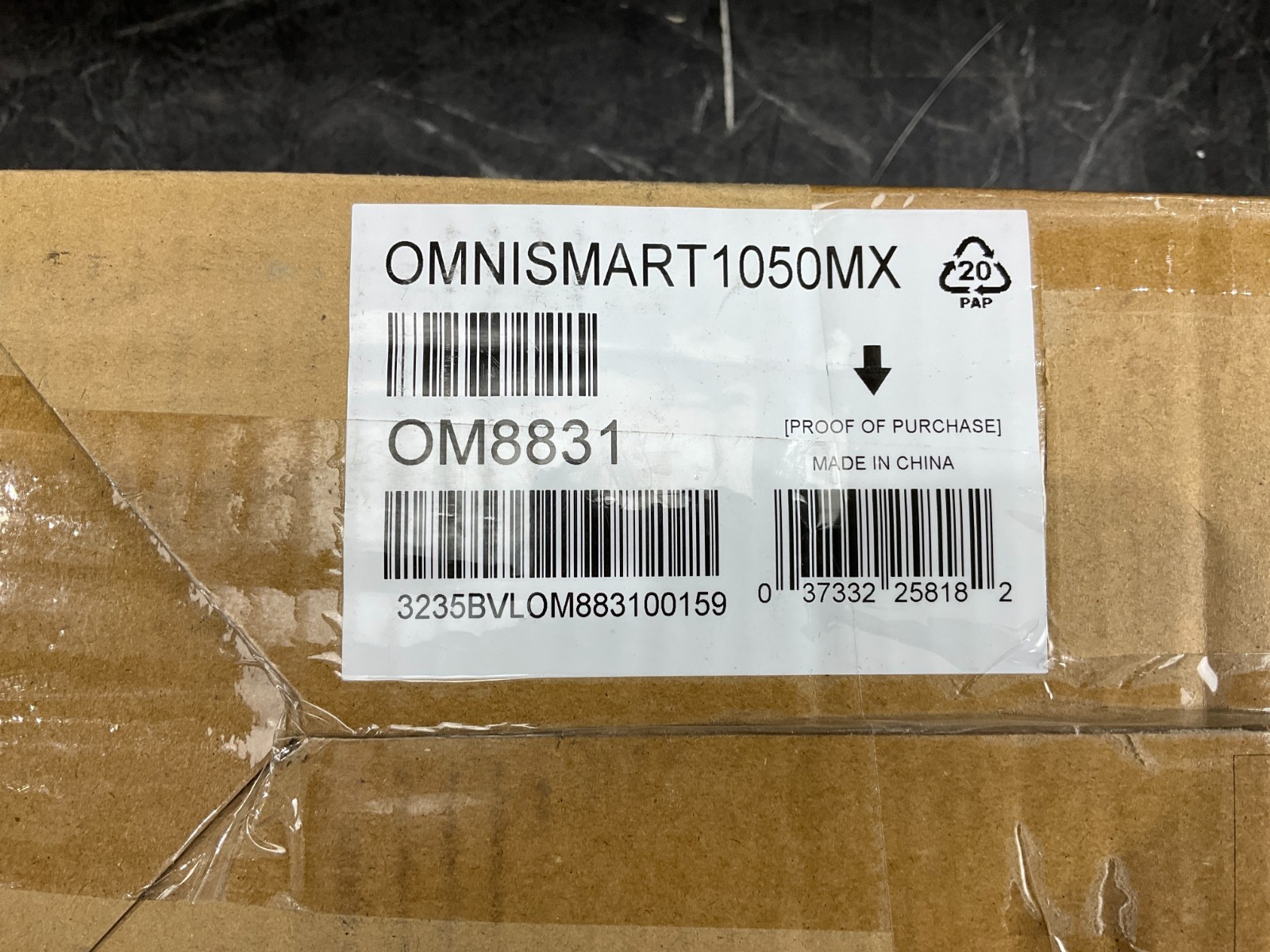

Tripp Lite 1050VA 540W 120V Desktop Battery OMNISMART1050MX
NEW OPEN BOX
OVERVIEWUPC Code037332258182UPS TypeLine-InteractiveINPUTInput PhaseSingle-PhaseRated input current (Maximum Load)12ANominal Input Voltage(s) Supported120V ACNominal Input Voltage DescriptionSupports input voltages from 78 to 152VUPS Input Connection Type5-15P; Right-AngledInput Circuit Breakers15A @ 120VUPS Input Cord Length (ft.)7Input Frequency60 Hz (±3%)OUTPUTOutput Capacity (VA)1050Output Capacity (kVA)1.05Output Capacity (Watts)540Output Capacity (kW)0.54Output Capacity DetailsSupports 125% load for 10 minutes, 20 seconds (load PF=1.0); Supports 110% for up to 27 secondsPower Factor0.6Nominal Voltage Details120v nominal output in AC and battery modesFrequency Compatibility60 HzFrequency Compatibility Details60 Hz (±3%) toleranceOutput Voltage Regulation (Line Mode)120V~ (+8% / -15%)Output Voltage Regulation (Battery Mode)120V (±5%)UPS Output Receptacles (Surge Suppression Only)6 UPS outlets, 6 surge-only outletsOutput AC Waveform (AC Mode)Pure sine waveOutput AC Waveform (Battery Mode)PWM sine waveNominal Output Voltage(s) Supported120VOutput Receptacles(12) 5-15ROutput Amp Capacity8.8A @ 120V~BATTERYBattery TypeValve Regulated Lead Acid (VRLA)Runtime Full Load (min.)3.6 min. (540W)Runtime Half Load (min.)9 min. (270W)DC System Voltage (VDC)12Battery Recharge Rate (Included Batteries)5 hours to 90%Battery AccessBattery access doorBattery Replacement DescriptionReplaceable internal batteries (see manual)VOLTAGE REGULATIONVoltage Regulation DescriptionAutomatic voltage regulation (AVR) maintains line power operation with an input voltage range of 78 to 152Overvoltage CorrectionInput voltages between 128 and 152 are cut by 16%Undervoltage CorrectionInput voltages between 93 and 108 are boosted by 13%Severe Undervoltage CorrectionInput voltages between 78 and 93 are boosted by 35%USER INTERFACE, ALERTS & CONTROLSSwitchesSwitch supports On/Off power control (release after 3 seconds), UPS battery-test (line mode only, release after 5 seconds), Alarm-mute (battery mode only, release after 0.5 seconds)Alarm Cancel OperationManual alarm-cancel supportedAudible AlarmAlarm sounds to report Battery-mode operation, Low-battery status, Overload status and UPS Battery test modelow-battery, fault, overload and replace-battery conditionsLED Indicators2 Status LEDs; GREEN indicates power status and operating mode / RED indicates battery-low, overload, replace-battery and fault conditions (see manual)SURGE / NOISE SUPPRESSIONUPS AC Suppression Joule Rating600UPS AC Suppression Response TimeInstantaneousUPS Dataline Suppression1 line TEL/DSL or EthernetEMI / RFI AC Noise SuppressionYesPHYSICALPrimary Form FactorDesktopRack Height0UInstallation Form Factors Supported with Included AccessoriesTower; Ultra-compact desktop; WallmountPrimary UPS Depth (mm)305Primary UPS Height (mm)105Primary UPS Width (mm)190Shipping Dimensions (hwd / in.)10.71 x 6.30 x 15.00UPS Power Module Dimensions (hwd, in.)4.14 x 7.48 x 12UPS Power Module Weight (kg)6.60UPS Power Module Weight (lbs.)14.55Unit Dimensions (hwd / in.)4.140 x 7.480 x 12.000Unit Weight (lbs.)14.550ENVIRONMENTALOperating Temperature Range32° to 104°F (0° to 40°C)Storage Temperature Range5° to 113°F (-15° to 45°C )Relative Humidity0 to 90%, non-condensingAC Mode BTU / Hr. (Full Load)36.86AC Mode Efficiency Rating (100% Load)>98.4%Operating Elevation0-10000 ft. (0-3000 m)COMMUNICATIONSPowerAlert SoftwareFor local monitoring via the UPS’s built-in communication ports, download PowerAlert software at CableUSB interface cable includedWatchDog CompatibilitySupports Watchdog application, OS and hard-reboot restart options for remote applicationsNetwork Management Card DescriptionNetwork management not supportedCommunications InterfaceUSB (HID enabled)LINE / BATTERY TRANSFERTransfer Time2-6 milliseconds (typical), 10 milliseconds (max)Low Voltage Transfer to Battery Power (Setpoint)78High Voltage Transfer to Battery Power (Setpoint)152FEATURES & SPECIFICATIONSCold Start (Startup in Battery Mode During a Power Failure)Cold-start operation supportedHigh Availability UPS FeaturesAutomatic Voltage Regulation (AVR); Surge/noise protectionGreen Energy-Saving FeaturesGreater than 95% efficiency - GREEN UPSGrounding DetailsIncludes side-panel grounding lugAPPLICATIONSUPS ApplicationsHome/Office DesktopSTANDARDS & COMPLIANCEProduct CertificationsRETIE (Colombia); CSA (Canada); NOM (Mexico); UL 1778Product ComplianceRoHS; EAC (Belarus, Kazakhstan, Russia); ENERGY STAR Qualified; FCC Part 15 Class A (USA)WARRANTY & SUPPORTProduct Warranty Period (U.S. & Canada)2-year limited warranty
