Trendnet 12-port Hardened Industrial Gigabit Poe+ Layer 2+ Managed Din-rail Switch - 8 Ports - Manageable - 4 X Expansion Slots - 1000base-t, 1000base-x - Modular - 8 X Network, 4 X (ti-pg1284i) Trendnet 12-port Hardened Industrial Gigabit Poe+ Layer 2+ Managed Din-rail Switch - 8 Ports - Manageable - 4 X Expansion Slots - 1000base-t, 1000base-x - Modular - 8 X Network, 4 X (ti-pg1284i)
International Customers: All electronic products are packaged for sale in the US with US voltage.
NDAA Compliant: Yes
TAA Compliant: Yes
Country of Origin: Taiwan
Product Description
This item is brand-new, factory sealed.

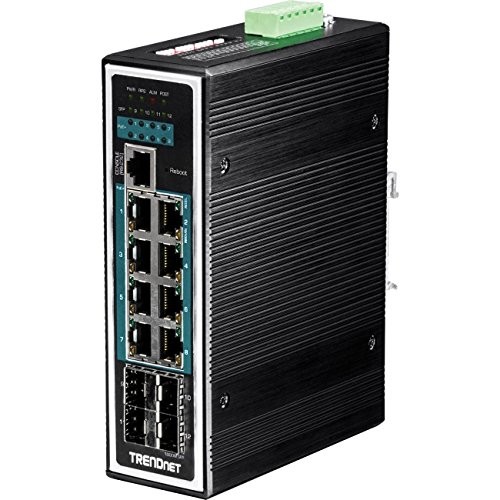

TRENDnet's 12-Port Hardened Industrial Gigabit PoE+ Layer 2+ Managed DIN-Rail Switch, model TI-PG1284i, has eight Gigabit PoE+ ports, four Gigabit SFP slots, and a 240 Watts PoE budget. The switch is equipped with an IP30 rated metal enclosure and designed to withstand a high degree of vibration, shock, protection against ESD/EMI/surge, and operate within a wide temperature range (- 40 - 75 °C (- 40 - 167°F)) for harsh environments. L2+ management include features such as PoE port control, 802.1Q/Q-in-Q VLAN, multicast, spanning tree, link aggregation, QoS, IPv4/IPv6 static routing, ACLs, and 802.1X which allow for network integration flexibility.
Industrial Hardened Design
Equipped with a rugged IP30 rated enclosure and designed to withstand a high degree of vibration, shock, protection against ESD/EMI/surge, and operate with a wide temperature range (- 40 - 75 °C (- 40 - 167 °F)) for harsh environments.
Integration Flexibility
Managed features include PoE control, IP static routing, access control lists, VLAN, IGMP snooping, QoS, RMON, SNMP trap, and syslog for monitoring and flexible network integration.
Fault Tolerance
Features dual redundant power inputs (Primary and RPS) from external power sources and an output alarm relay to indicate the event of input power failure. SpecificationManagement & ProtocolsManageableYesPower DescriptionRedundant Power Supply SupportedYesPhysical CharacteristicsForm FactorRail-mountableWeight (Approximate)7.43 WarrantyLifetimeInterfaces/PortsUplink PortNoStack PortNoPort/Expansion Slot Details
- 8 x Gigabit Ethernet Network
- 4 x Gigabit Ethernet Expansion Slot
Total Number of Network Ports12ModularYesI/O ExpansionsTotal Number of Expansion Slots4Shared SFP SlotNoNumber of SFP Slots4Expansion Slot TypeSFPGeneral InformationBrand NameTRENDnetMarketing InformationTRENDnet's 12-Port Hardened Industrial Gigabit PoE+ Layer 2+ Managed DIN-Rail Switch, model TI-PG1284i, has eight Gigabit PoE+ ports, four Gigabit SFP slots, and a 240 Watts PoE budget. The switch is equipped with an IP30 rated metal enclosure and designed to withstand a high degree of vibration, shock, protection against ESD / EMI / surge, and operate within a wide temperature range (- 40 - 75 °C (- 40 - 167°F)) for harsh environments. L2+ management include features such as PoE port control, 802.1Q / Q-in-Q VLAN, multicast, spanning tree, link aggregation, QoS, IPv4 / IPv6 static routing, ACLs, and 802.1X which allow for network integration flexibility. ETHERNET PORT INTERFACE: 8 x Gigabit PoE+ (802.3at) ports, 4 x Gigabit SFP slots, and 1 x console port LIFETIME PROTECTION -We stand by the quality of our products. The TI-PG1284i 12-Port Hardened Industrial Gigabit PoE+ Layer 2+ Managed DIN-Rail Switch with Lifetime Manufacturer Protection from TRENDnet. (U.S. and Canada Only) NDAA + TAA COMPLIANT: With our NDAA and TAA compliant Industrial Switches , you can plan and install networking solutions that Government customers demand today (U.S. and Canada Only) FULL POE+ POWER BUDGET & CONTROL PER PORT: The managed PoE+ switch supplies up to 30 Watts of PoE / PoE+ power per port (ports 1-4 802.3at / 802.3af) with a 240 Watt PoE power budget and allows for a 24 Gbps switching capacity. PoE control features for the DIN-Rail switch include enabling / disabling PoE and class, power priority, PD alive check, scheduling, and power delay per port using CLI or web management. DIN-RAIL & WALL MOUNT KIT: This 12-Port gigabit PoE+ managed switch comes with an integrated DIN-Rail mount and mounting hardware. EXTREME TEMPERATURE SWITCH: The metal hardened IP30 rated gigabit PoE+ switch is equipped with a rugged IP30 rated enclosure and designed to withstand a high degree of vibration, shock, protection against ESD/EMI/surge, and operate with a wide temperature range (- 40 - 75 °C (- 40 - 167 °F)) for harsh environments. TRAFFIC MANAGEMENT: The Layer 2+ Managed switch features include 802.1Q / Q-in-Q / GVRP / MAC & Protocol-Based VLAN, IGMP v1 / 2 / 3, IGMP Snooping, MLD, MVR, per port bandwidth control / 802.1p / DSCP / Queue Scheduling (SPQ / WRR), STP / RSTP / MSTP spanning tree, static and dynamic link aggregation, and Xpress Ring + ERPS protection for flexible network integration. FAULT TOLERANCE: The DIN-Rail Switch features dual redundant power inputs (Primary and RPS) from external power sources and an output alarm relay to indicate the event of input power failure. REDUNDANT POWER: The 12 Port Switch has dual redundant power inputs with overload current protection (power supply sold separately: model: (TI-S24048) More from the Manufacturer Product TypeEthernet SwitchProduct Name12-port Hardened Industrial Gigabit PoE+ Layer 2+ Managed DIN-Rail SwitchManufacturerTRENDnetManufacturer Part NumberTI-PG1284iProduct ModelTI-PG1284iMedia & PerformanceEthernet TechnologyGigabit EthernetMedia Type Supported
- Optical Fiber
- Twisted Pair
Network Technology
