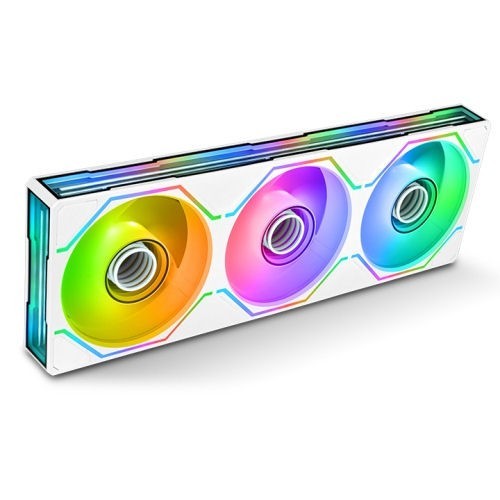

SWAFAN 360 UNIFY Snow is a single-frame fan designed for effortless installation. It features a Swappable Fan Blade Design that keeps the lighting fully visible in different airflow directions. The Dual Infinity Mirror Lighting on the fan hub and fan frame creates a layered effect with two rings for breathtaking visual effects. Taking the fan’s aesthetic to the next level, the Hidden Screw Design conceals the corner screws, providing a smooth surface that makes the lighting stand out.

Fan Dimension 364 x 124 x 28 mm

Interface 2510-4 Pin / 5V ARGB header-3 Pin

Fan Started Voltage 6 V

Fan Rated Voltage 12 V & 5V

Rated Current 12V: 0.9A / 5V: 2.4A (one fan)

Power Input 12V: 10.8 W / 5V: 12 W (one fan)

Fan Speed PWM 500 ~ 2000 R.P.M

Static Pressure Standard Fan Blade:2.67 mm-H2O (per fan)

Reverse Fan Blade:2.23 mm-H2O (per fan)

Air Flow Standard Fan Blade:58.13 CFM (per fan)

Reverse Fan Blade:56.15CFM (per fan)

Noise Standard Fan Blade:30 dB-A (per fan)

Reverse Fan Blade:32 dB-A (per fan)

Bearing Type Hydraulic Bearing
