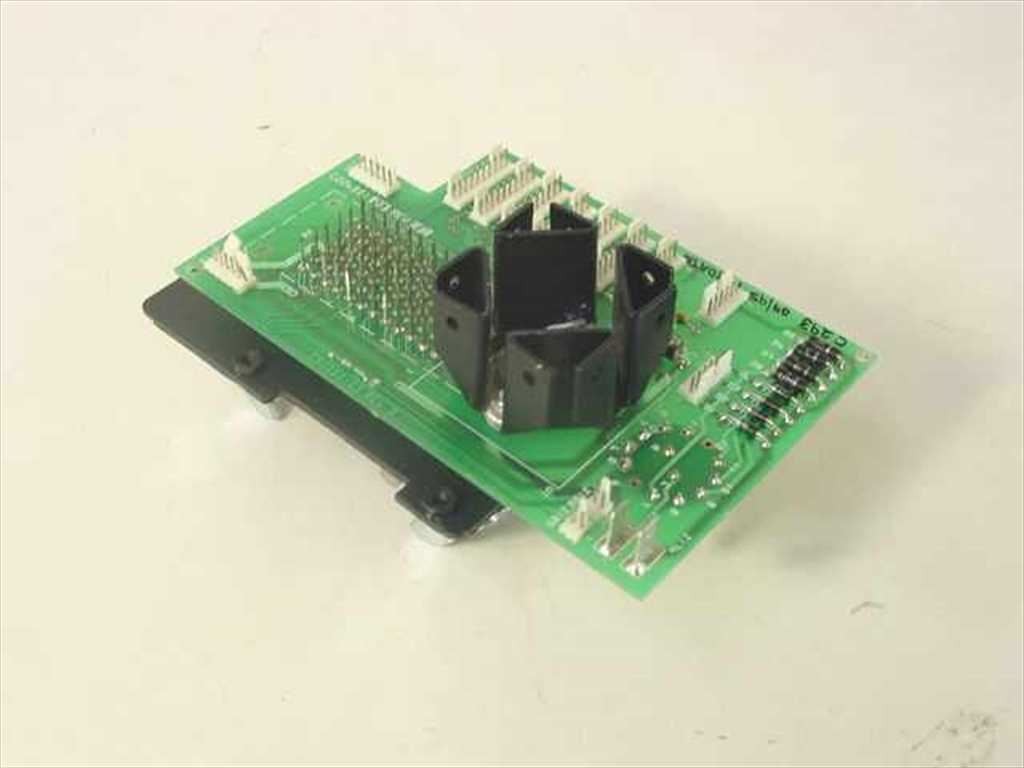

This is a Tekdata C224001-03 Rev F printed circuit board assembly featuring a panel-mounted Han-DD 72M high-density male connector. The board carries the secondary reference CS2000103 Rev D on its silkscreen and is date-coded to September 1995. It is a compact interface PCB designed to route multi-pin signals through a heavy-duty industrial connector, typical of the type used in machine control, automation, and industrial equipment interconnect applications.

Specifications & What's Included

• Manufacturer: Tekdata
• Part Number: C224001-03
• Revision: Rev F
• Secondary Board Reference: CS2000103 Rev D
• Date Code: 09/1995 (handwritten: C293 09/95 TEKDATA)
• Main Connector: Han-DD 72M — 72-pin high-density male, panel-mount
• Connector Rating: 10A, 250V
• Connector Style: Han-DD (Harting DD series compatible form factor)
• Board Interface: Multiple JST-style white header connectors on PCB (signal routing)
• PCB Color: Green, standard FR4-type construction
• Form Factor: Card / Module with mounting series connectors are a Harting-standard high-density rectangular connector widely used in industrial automation, CNC machinery, robotics, and modular machine control systems. The Han-DD 72-pin format allows a large number of signal lines to pass through a single panel-mount interface point, making it well suited for machine tool interconnects, servo drive signal harnesses, and I/O panel assemblies. Tekdata, a UK-based electronics manufacturer, has produced custom PCB assemblies and interface boards for industrial control and data communications equipment. Boards of this type typically serve as interface or breakout PCBs within a larger system enclosure, bridging backplane or cable harness signals to individual board-level circuits. This particular assembly dates from 1995 and is representative of mid-1990s industrial PCB design.
  Condition: Open Box
  This Tekdata C224001-03 Rev F PCB interface board is new and unused. It may be out of its original packaging, but it shows no signs of use or wear. The board and Han-DD 72M connector appear clean and undamaged. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function. Visit Our Store
