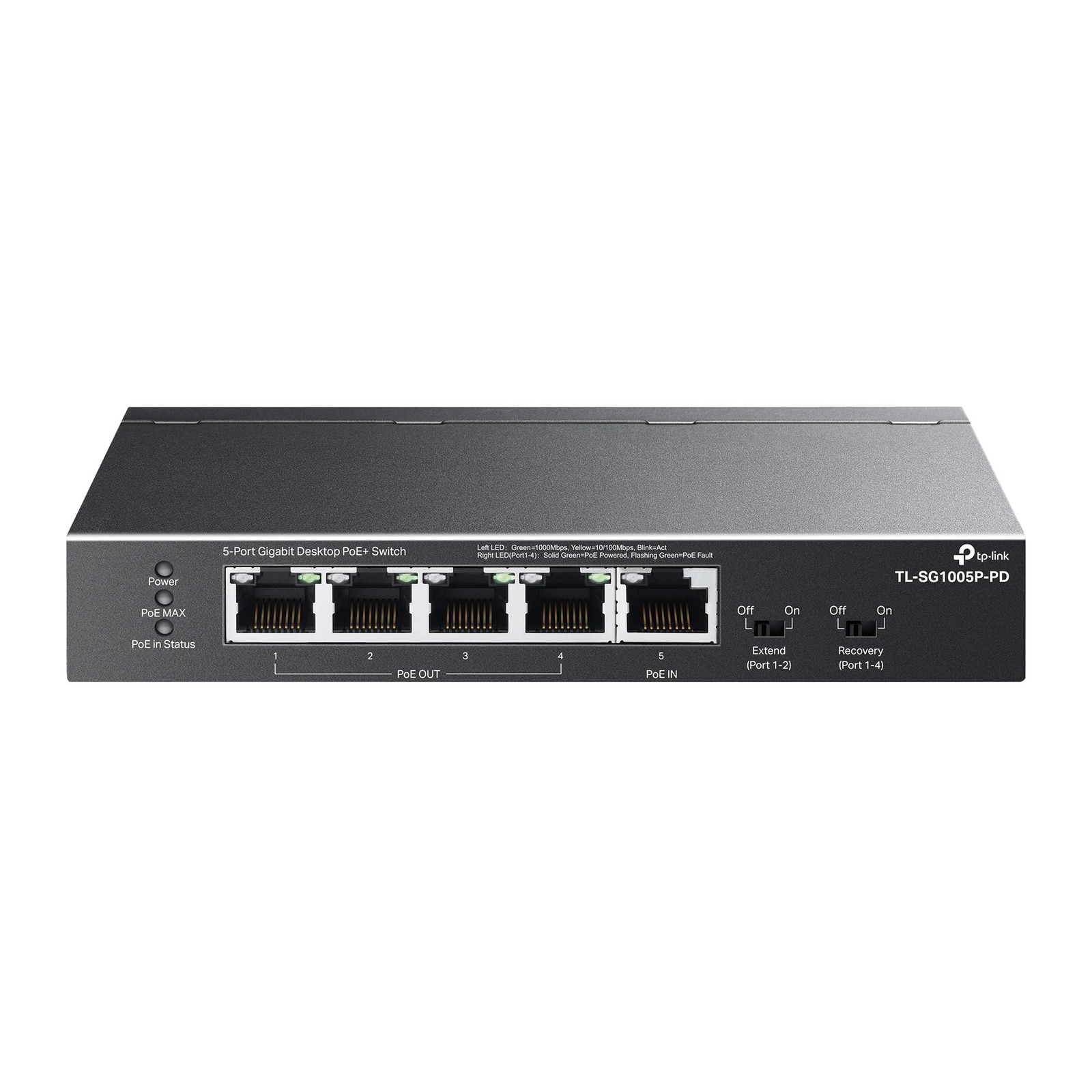

TP-Link TLSG1005PPD 5-Port Gigabit Passthrough PoE+ Ethernet Switch TP-Link TLSG1005PPD 5-Port Gigabit Passthrough PoE+ Ethernet Switch
International Customers: All electronic products are packaged for sale in the US with US voltage.
Certifications & Standards: CE FCC
Application/Usage:
Wireless Access Point
IP Phone
Network Video Compliance: Restriction of Hazardous Substances (RoHS)
Product Description
This item is brand-new, factory sealed.
TL-SG1005P-PD is an unmanaged switch with 5 Gigabit ports that requires no AC or DC power supply. It provides 1 PoE (Power over Ethernet) IN port and 4 PoE OUT ports. It can automatically detect and get power from all IEEE 802.3af/at/bt compliant Power Sourcing Equipment (PSE) at port 5 and provide power for IEEE 802.3af/at compliant Powered Devices (PDs) at port 1-4. In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.
Power Over Ethernet
5 RJ45 ports (port 1 to port 5) of the switch support Power over Ethernet (PoE) function. They can automatically detect and get power from all IEEE 802.3af/at/bt compliant Power Sourcing Equipment (PSE) at port 5 and provide power for IEEE 802.3af/at compliant Powered Devices (PDs) at port 1-4.
Overload Arrangement
TL-SG1005P-PD has the priority function which will help protect the system when the system power is overloaded. If all PoE PDs power consumption exceeds the PoE power budget, a priority will be arranged among the PoE ports, then the system will cut off the power of the lowest-priority port.
Intelligent Power Management
Priority (port 1 > port 2 > port 3 > port 4): This function will help protect the system when the system power is overloaded. For example. if the switch is powered by 802.3bt (type 4) with port 1, 2 and 4 consuming 15.4 W respectively, and an additional PoE device with 20 W is connected to port 3, the system will cut off the power of port 4 to compensate for the overload.
Highlight Performance
- Up to 250 m PoE power supply and data transmission under Extend Mode for port 1-2.
- With PoE Auto Recovery, the switch will constantly detect the data transmission with PoE-powered devices (PD) for port 1-4. When the switch finds that a PD stops sending data packets to the switch for a long period, the switch will reboot it automatically.
Easy to Use
TL-SG1005P-PD is easy to install and use. It requires no configuration and installation. With desktop and wall mountable design, outstanding performance and quality, the TP-Link 5-Port Gigabit Desktop PoE+ Switch with 1-Port PoE++ In and 4-Port PoE+ Out TL-SG1005P-PD is a great selection for expanding your network.
SpecificationManagement & ProtocolsManageableNoPower DescriptionPower SourcePower SupplyPoE Budget66 WPoE (RJ-45) PortYesPower Consumption2.68 WPhysical CharacteristicsProduct MaterialMetalForm Factor
- 1 x Gigabit Ethernet PoE++
- 4 x Gigabit Ethernet PoE+
Total Number of Network Ports5General InformationBrand NameOmadaMarketing Information TL-SG1005P-PD is an unmanaged switch with 5 Gigabit ports that requires no AC or DC power supply. It provides 1 PoE (Power over Ethernet) IN port and 4 PoE OUT ports. It can automatically detect and get power from all IEEE 802.3af/at/bt compliant Power Sourcing Equipment (PSE) at port 5 and provide power for IEEE 802.3af/at compliant Powered Devices (PDs) at port 1-4. In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc. Power Over Ethernet 5 RJ45 ports (port 1 to port 5) of the switch support Power over Ethernet (PoE) function. They can automatically detect and get power from all IEEE 802.3af/at/bt compliant Power Sourcing Equipment (PSE) at port 5 and provide power for IEEE 802.3af/at compliant Powered Devices (PDs) at port 1-4. Overload Arrangement TL-SG1005P-PD has the priority function which will help protect the system when the system power is overloaded. If all PoE PDs power consumption exceeds the PoE power budget, a priority will be arranged among the PoE ports, then the system will cut off the power of the lowest-priority port. Intelligent Power Management Priority (port 1 > port 2 > port 3 > port 4): This function will help protect the system when the system power is overloaded. For example. if the switch is powered by 802.3bt (type 4) with port 1, 2 and 4 consuming 15.4 W respectively, and an additional PoE device with 20 W is connected to port 3, the system will cut off the power of port 4 to compensate for the overload. Highlight Performance Up to 250 m PoE power supply and data transmission under Extend Mode for port 1-2. With PoE Auto Recovery, the switch will constantly detect the data transmission with PoE-powered devices (PD) for port 1-4. When the switch finds that a PD stops sending data packets to the switch for a long period, the switch will reboot it automatically. Easy to Use TL-SG1005P-PD is easy to install and use. It requires no configuration and installation. With desktop and wall mountable design, outstanding performance and quality, the TP-Link 5-Port Gigabit Desktop PoE+ Switch with 1-Port PoE++ In and 4-Port PoE+ Out TL-SG1005P-PD is a great selection for expanding your network. Product TypeEthernet SwitchProduct NameTL-SG1005P-PD Ethernet SwitchManufacturerTP-LINK Technologies Co., LtdManufacturer Part NumberTL-SG1005P-PDProduct ModelTL-SG1005P-PDMedia & PerformanceEthernet TechnologyGigabit EthernetMaximum Data Transfer Rate128 MB/sMedia Type SupportedTwisted PairNetwork Technology10/100/1000Base-TTitleProduct TitleOmada TL-SG1005P-PD Ethernet Switch (TLSG1005PPD)Network & CommunicationLayer Supported2Networking Standards
- IEEE 802.3af
- IEEE 802.3at
- IEEE 802.3x
- IEEE 802.1p
- IEEE 802.3bt
- IEEE 802.3i
- IEEE 802.3ab
Technical InformationFeatures
