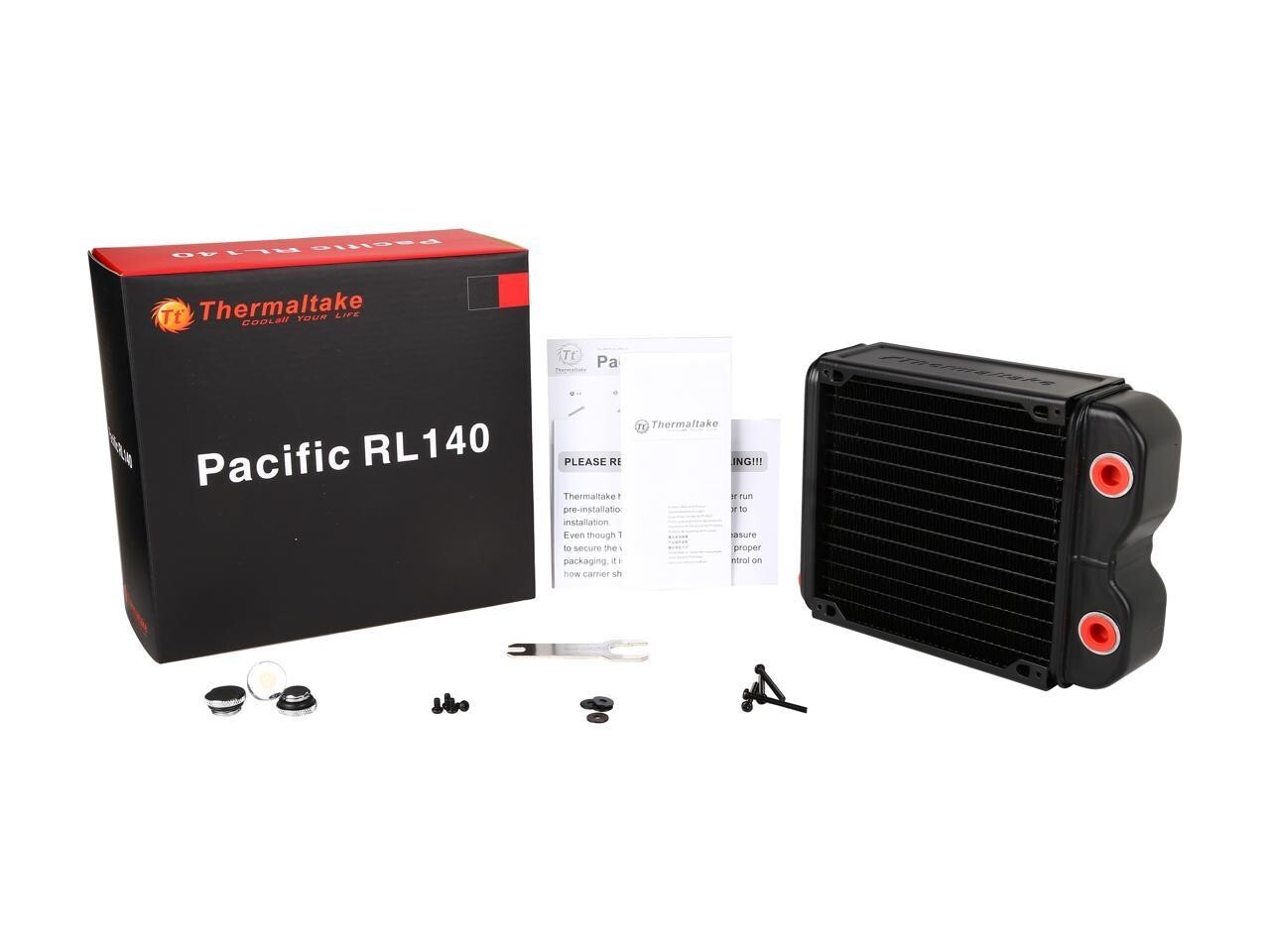

The Thermaltake Pacific RL Series introduces high-quality radiators to deliver outstanding water cooling performance for the enthusiast’s PC. Manufactured from high-quality German zinc alloy aluminum and aerospace-grade materials, configurations of 140mm, 280mm, 420mm, and 560mm are available to provide exceptional performance. Integrated G1/4" threads make it easy to install, while rigid connections ensure leak-resistant measures are in place. With an ideal mounting, fitting and flow set-up, the Thermaltake Pacific RL Series meets your cooling needs in every way.

P/N

Dimension

182.5 (L) x 140 (W) x 56 (H)

Weight

446g

Material

Anti-Corrosion
Aluminum Alloy

FPI (Fin per inch)

13

Flat Tube

13 set

Screw Thread

G 1/4 * 5

Parts

Stopper *3 (G 1/4)

• OPTIMIZED HEAT DISPATCHINGDesigned for the most demanding hardcore enthusiasts, the Thermaltake RL Series Radiators are optimized for maximum heat dispatching. They deliver an average heating load of 32°C-35°C on each radiator. After brazing, the fin and tube connect to form a joint, thereby creating uniform heat transfer. By efficiently pulling heat away from the power-dissipating components, the radiators ensure component reliability.
• DUAL-ROW TUBESThe Pacific RL Series is an extremely thick radiator with a double-row 13-set flat tube designed to increase heat transfer. Water flows down on one side, then passes across the bottom chamber before circulating back to the other side of the radiator.
• HIGH-DENSITY FIN DESIGNFin density is optimally designed to accommodate high air pressure. The cooling performance improves significantly with increased fan speed, offering exceptional cooling performance during operation. It has 13 fins per inch.
• GERMAN-MADE ANTI-CORROSION MATERIALSWithout compromise, the Pacific RL Radiator Series is designed with high-quality German aerospace-grade materials and constructed with zinc, the most common anti-corrosion agent. Although this protection will gradually degrade as the zinc corrodes away over time, it provides the best means to reduce electronic conductivity and can withstand scratches to the zinc layer. Corrosion potentials of aluminum alloy with zinc can be reduced by 55.6% after brazing.
• HIGH-QUALITY MANUFACTURING PROCESS: BRAZINGAn exceptional manufacturing process using high temperature brazing at 1022°F/550°C sets Pacific RL Radiators in a class of their own. This technique allows for impurities to be kept out of the brazing process, ensuring that full strength on all the connected areas is achieved. The radiators are baked through a controlled atmosphere brazing line. The materials melt into each other to accomplish optimal thermal transfer from the tubes to the actual fins in order to attain better heat evacuation.
