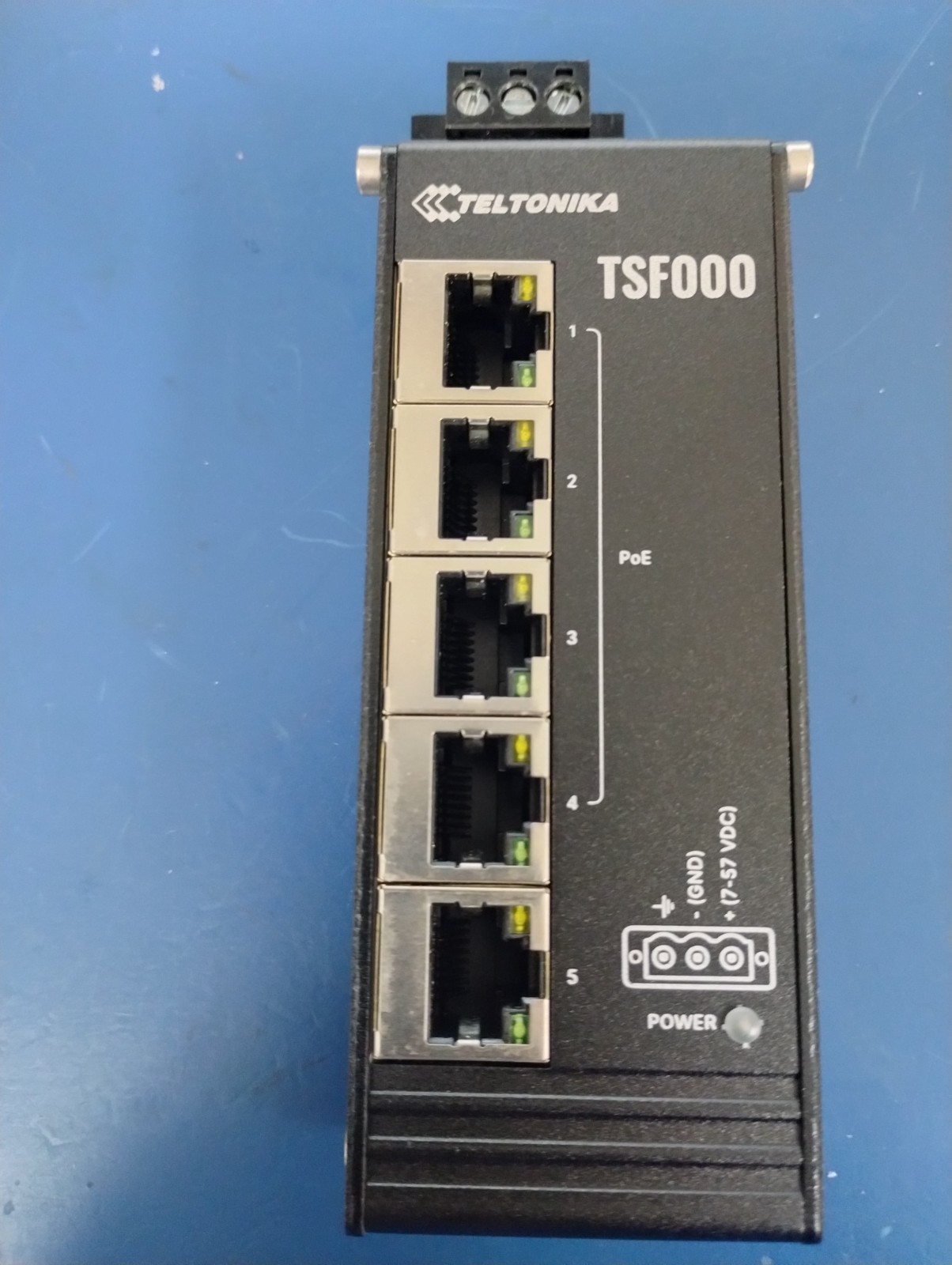

[ TELTONIKA TSF000000000 Low‑Profile PoE+ Industrial Switch without PSU]
ABOUT THIS ITEM
**[ C9 - New Open Box - F4 -Hardware Functional]**
UI:[ V004080]
**[ New -Open box]**
INCLUDES: [NETWORK SWITCH]
FEATURED DESCRIPTION:
The Teltonika TSF000000000 is the standard TSF000 Low‑Profile PoE+ Industrial Switch without PSU, and its specs match the TSF000 base model.
📦 TSF000000000 — Full Technical Specifications
⚙️ Core Hardware
5× Ethernet ports (10/100 Mbps) — auto MDI/MDIX crossover
4× PoE/PoE+ ports (Ports 1–4)
IEEE 802.3af (Type 1) & 802.3at (Type 2), Alternative A
30 W max per port
120 W total PoE budget
Unmanaged switch — plug‑and‑play
⚡ Power
Input voltage: 7–57 VDC
Overvoltage protection: 60 V max
Reverse polarity protection: 80 V max
Surge breakdown: 64.4–71.2 V
Reverse surge: 93.6 V @ 4.3 A
PoE-out voltage requirement: 44–57 VDC
Power consumption:
Idle: 1 W
Max: 1.5 W
PoE max: 121 W
Connector: 3‑pin industrial DC power socket
📈 Performance
Non-blocking bandwidth: 10 Gbps
Packet buffer: 128 KB
MAC table: 2K entries
Jumbo frames: 9216 bytes
🏗️ Physical & Environmental
Dimensions: 113 × 28 × 50 mm
Weight: 142 g
Housing: Anodized aluminum
Mounting: Integrated DIN‑rail bracket
Operating temperature: –40°C to +75°C
Humidity: 5–95% non‑condensing
Ingress rating: IP30
🔌 Indicators
1× Power LED
10× Ethernet status LEDs
📡 Industrial Protocols
IEEE 802.3i / 802.3u / 802.3x / 802.3az / 802.3p / 802.3Q
🧭 Quick Summary (Decision‑Ready)
Feature Value
Model TSF000000000
Ports 5× 10/100 Mbps
PoE 4× PoE/PoE+ (30 W/port, 120 W total)
Power Input 7–57 VDC
PoE Input Requirement 44–57 VDC
Temp Range –40°C to +75°C
Mounting DIN rail
Ingress IP30
Dimensions 113×28×50 mm
Weight 142 g
