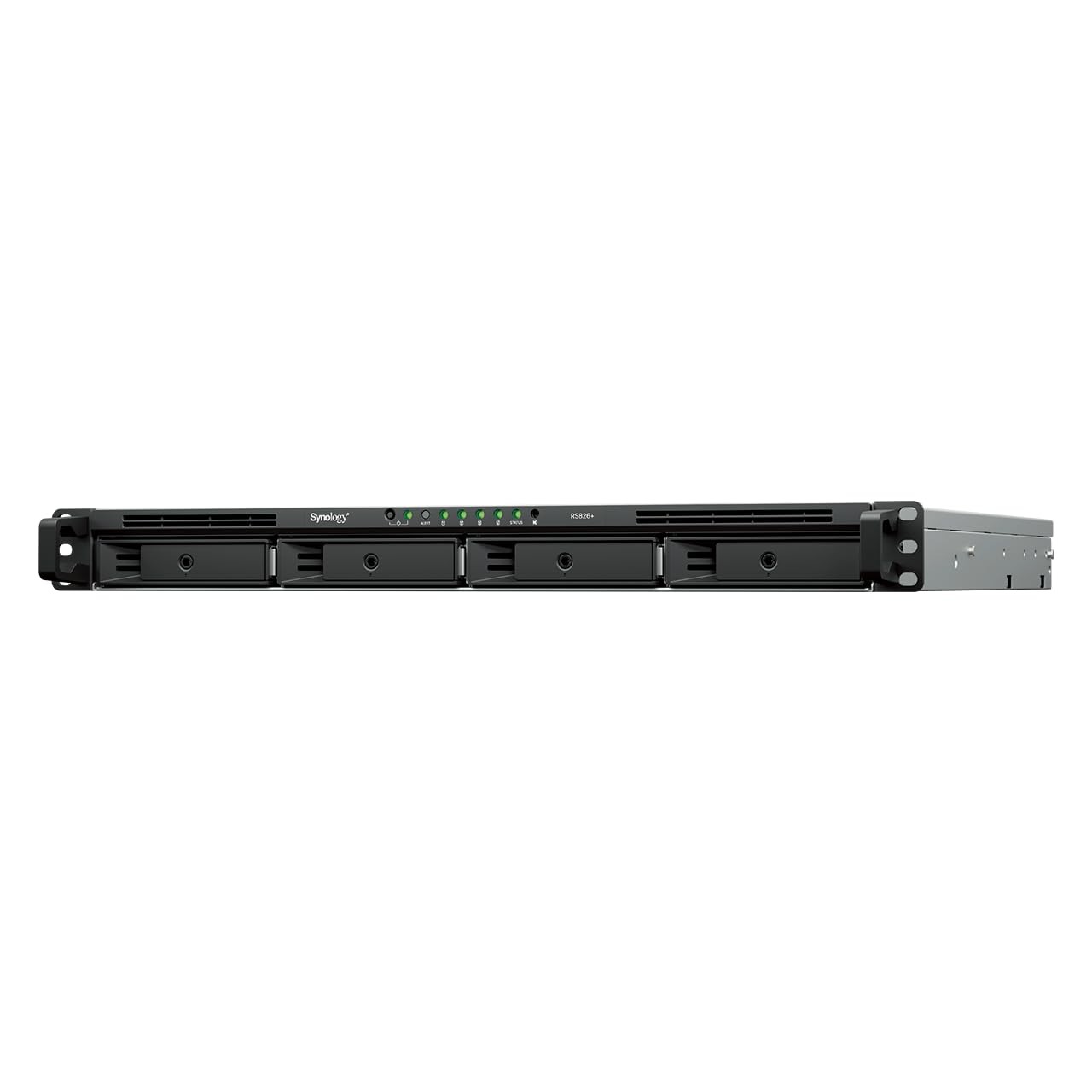

Synology RS826+ RackStation 1U 4-Bay NAS Synology RS826+ RackStation 1U 4-Bay NAS
International Customers: All electronic products are packaged for sale in the US with US voltage.
This item is brand-new, factory sealed.
RackStation RS826RP+/RS826+
Compact storage for edge and remote workloads
Scalable 4-bay edge storage solution
Fast and reliable
Over 2,000/1,300 MB/s seq. read/write2, built-in 4 x 1GbE, and up to 192 TB raw storage after expansion3,4
Flexible configuration
Add 4 extra drive bays, 10/25GbE ports, and SSD cache5 volumes whenever needed
Versatile business application platform
Back up endpoints, manage up to 40 IP cameras6, or safely sync and share files across sites
Designed for reliability
RS826RP+/RS826+ come with four Gigabit RJ-45 ports which can be bonded with Link Aggregation to enable automatic network failover and load balancing.
Two RS826RP+/RS826+ units can be paired using Synology High Availability to form a reliable active/passive server cluster, maximizing service uptime.
Furthermore, the RS826RP+ features a redundant power supply for an extra edge in service continuity.
Accommodates future expansion
The RS826RP+/RS826+ can be flexibly configured to meet evolving needs through increased storage, local SSD cache, or faster networking.
Storage expansion
Expand up to 192 TB of raw storage using 8 drive bays with the RX426 expansion unit.
SSD cache
Reduce latency and increase IOPS in HDD arrays with the performance boost of SSD caching.
Flexible networking options
Improve I/O performance or add redundancy with 10GbE or 25GbE SFP+/SFP28 networking or 10GbE RJ-45 Ethernet adapters.Hardware Specifications
CPU
CPU Model
AMD Ryzen V1500B
CPU Quantity
1
CPU Cores
4
CPU Threads
8
CPU Architecture
64-bit
CPU Frequency
2.2 GHz
Hardware Encryption Engine
YesMemory
System Memory
4 GB DDR4 ECC SODIMM
Memory Module Pre-installed
4 GB (4 GB x 1)
Total Memory Slots
2
Maximum Memory Capacity
32 GB (16 GB x 2)
Notes
Synology may revise pre-installed memory module specifications in response to component lifecycle and supply conditions. All revised components undergo the same rigorous validation to ensure equivalent compatibility, stability, and performance.
Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion.
For multi-module memory configurations, all modules must be identical and share the same model number. Check the Product Manual of your Synology product for recommended memory configurations.Storage
Drive Bays
4 x 3.5" SATA HDD or 2.5" SATA SSD
Maximum Drive Bays with Expansion Unit
8 (RX426 x 1)
Hot Swappable Drive
Yes
Notes
Compatible drives are mandatory. Please consult our compatibility list before purchasing hard drives. For more details, please refer to this article.
SSD cache can be enabled with select compatible SSD. See the compatibility list for model-specific support and details. SSDs are sold separately.External Ports
RJ-45 1GbE LAN Port
4
USB 3.2 Gen 1 Port
2
Expansion Port
1
Expansion Port Type
USB Type-CPCIe
PCIe Expansion
1 x Gen3 x8 slot (x4 link)Appearance
Form Factor (RU)
1U
Rack Installation Support
4-post 19" rack (Synology Rail Kit - RKM114/RKS-02)
Notes
The rail kit is sold separatelyOthers
System Fan
40 mm 40 mm x 3 pcs
Fan Speed Mode
Full-Speed Mode
Cool Mode
Quiet Mode
Power Recovery
Yes
Noise Level
26.5 dB(A)
Scheduled Power On / Off
Yes
Wake on LAN / WAN
Yes
Power Supply Unit / Adapter
150 watts
Redundant Power Supply
Yes
AC Input Power Voltage
100 V to 240 V AC
Power Frequency
50/60 Hz, Single Phase
Power Consumption
37.73 watts (Access)
15.57 watts (HDD Hibernation)
British Thermal Unit
128.66 BTU/hr (Access)
53.09 BTU/hr (HDD Hibernation)
Notes
For more information on how power consumption is measured, refer to this article.
Noise testing was conducted with the Synology system fully installed with Synology SATA HDDs and in an idle state. Two G.R.A.S. Type 40AE microphones are placed at a 1 m distance from the front and rear of the device. Background noise: 16.49-17.51 dB(A) Temperature: 24.25-25.75oC Humidity: 58.2-61.8%Temperature
Operating Temperature
0oC to 35oC (32oF to 95oF)
Storage Temperature
-20oC to 60oC (-5oF to 140oF)
Operating Humidity
8% to 80% RH
Storage Humidity
5% to 95% RHCertification
FCC
CE
BSMI
VCCI
RCM
UKCA
EAC
CCC
KC
BIS
ULEnvironment
RoHS CompliantPackaging Content
Main Unit x 1
Accessory Pack x 1
AC Power Cord x 1Optional Accessories
DDR4 ECC SODIMM: D4ES04-4G/D4ES03-8G/D4ES03-16G
Expansion Units: RX426
Enterprise Series 3.5" SATA HDD: HAT5300 Series
Plus Series 3.5" SATA HDD: HAT3300 Series
Enterprise Series 2.5" SATA SSD: SAT5200 Series
M.2 SSD and 10GbE Combo Adapter Card: E10M20-T1
M.2 SSD Adapter Card: M2D20
25GbE Network Interface Card: E25G30-F2
10GbE Network Interface Card: E10G30-F2/E10G30-T2/E10G30-T1
Rail Kit Sliding: RKS-02
Rail Kit Mounted: RKM114
Notes
For multi-module memory configurations, all modules must be identical and share the same model number. Check the Product Manual of your Synology product for recommended memory configurations.Item Dimension (L"xW"xH")
25 x 23 x 9
Weight
38 lbs
