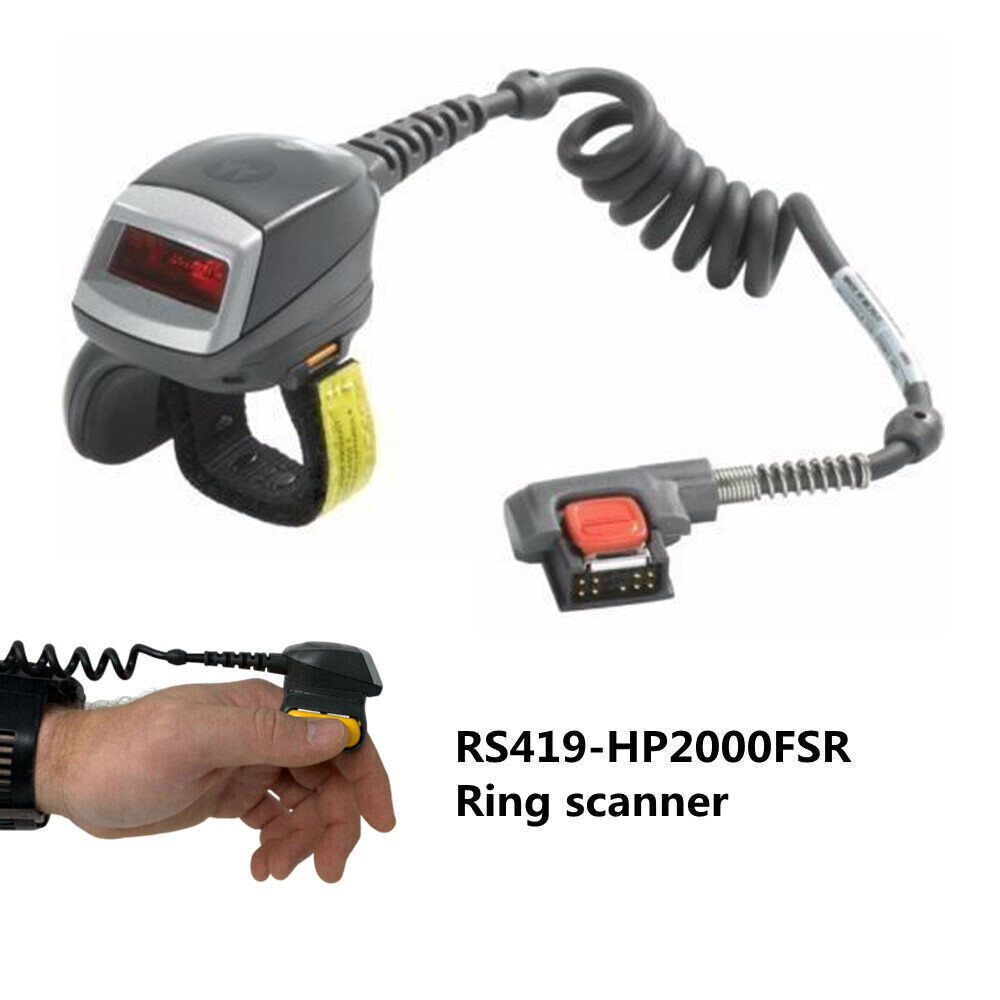

Symbol Motorola RS419-HP2000FSR Wearable 1D Ring Scanner For WT4090 WT41N0
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
Symbol Motorola RS419-HP2000FSR Wearable 1D Ring Scanner For WT4090 WT41N0
Price: CN $56.22

Specifications

  • Model Number: RS419-HP2000FSR
  • Alt Part Number(s): RS419-HP2000FSR
  • Type: Barcode Scanner
  • Dimensions:1.9 in. H x 1.4 in. W x 1.9 in. D (4.8 cm H x 3.6 cm W x 4.8 cm D)
  • Weight:2.0 oz./56.7 gm
  • Current:92 mA typical/121 mA max (one LED on)
  • Standby Current:12 A typical/60 A max
  • Voltage:3.1 VDC to 3.6 VDC
PERFORMANCE CHARACTERISTICS
  • Light Source 650nm LASER 1.7mW peak power
  • Scan Rate:92 min., 104 typical, 116 max. scans/sec (offerirectional)
USER ENVIRONMENT
  • Operating Temp. -22deg to 140deg F/-30deg to 60deg C
  • Storage Temp. -25deg to 160deg F/-40deg to 70deg C
  • Humidity:5% to 95% non-condensing
  • Ambient Light Immunity:Tolerant to typical artificial indoor and natural outdoor (direct sunlight ) lighting conditions. Fluorescent, Incandescent, Mercury Vapor, Sodium Vapor, LED: 450 Ft Candles (4,844 Lux) Sunlight: 10000 Ft Candles (107,640 Lux)
  • Note: LED lighting with high AC ripple content can impact scanning performance
  • Drop Spec:Multiple 4 ft./1.2 m drops to concrete from -4deg to 122deg F/-20deg to 50deg C; multiple 3 ft./0.9 m drops to concrete at -22deg F/-30deg C
Technical Description
  • Brand: Zebra Motorola
  • Model: RS419-HP2000FSR
  • Type: RS419 Ring Scanner
  • Form Factor: Wearable
  • Connection: WT4090 Interface Cable
  • Connectivity: Corded
  • Scanner Capability: 1D
  • Scan Pattern: Single Line
  • Scanner Type: Laser
  • Color: Dark Gray
  • Included Cables: WT4090 Interface Cable
  • Ruggedness: General Purpose
