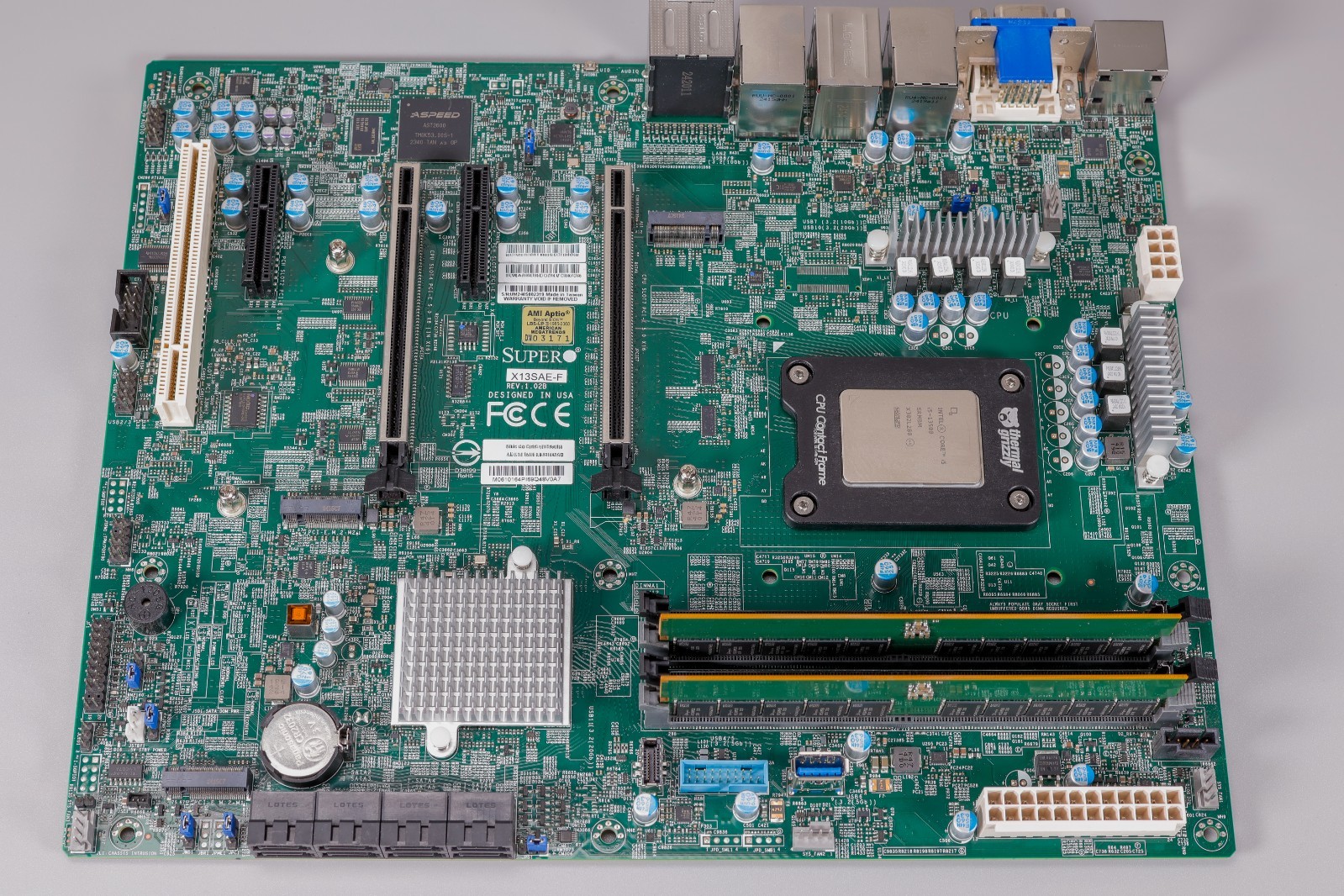

Supermicro X13SAE-F workstation/server motherboard combo, fully tested and ready for installation.
INCLUDED
• Supermicro X13SAE-F Rev. 1.02 ATX motherboard
• Intel Core i5-13500 processor
• 64GB DDR5 ECC UDIMM memory — 2x32GB
• Thermal Grizzly LGA1700 CPU contact frame, installed
• Original rear I/O shield
MEMORY DETAILS
• 64GB total capacity
• Two matching 32GB modules
• DDR5-4800 / PC5-38400E
• ECC unbuffered UDIMM
• 2Rx8 organization
• Part number: MEM-DR532L-CL01-EU48-MB
• SK hynix memory ICs
TESTING
• Motherboard boots and operates normally
• Intel Core i5-13500 correctly detected
• Full 64GB memory capacity correctly detected
• MemTest86 completed one full pass with zero errors
• IPMI/BMC remote management verified
• BMC configuration restored to factory defaults
• Test-result and BMC screenshots are included in the listing photos
PROCESSOR
The Intel Core i5-13500 features 14 cores and 20 threads, up to 4.8GHz turbo frequency, Intel UHD 770 integrated graphics, Quick Sync Video, and ECC memory support when paired with a compatible platform.
MOTHERBOARD FEATURES
• Intel W680 chipset
• LGA1700 socket
• Four DDR5 ECC/non-ECC UDIMM slots
• Three PCIe 4.0 x4 M.2 slots
• Eight SATA 6Gb/s ports
• Two PCIe 5.0 x16 slots supporting x16 or x8/x8 operation
• Integrated 2.5GbE and 1GbE networking
• Dedicated IPMI management network port
• ASPEED AST2600 BMC
• DisplayPort, HDMI, DVI-D, and VGA video outputs
• Support for compatible 12th, 13th, and 14th-generation Intel Core processors
The installed memory modules are rated for DDR5-4800. Actual operating speed depends on the installed CPU, BIOS configuration, and motherboard support.
NOT INCLUDED
No CPU cooler, storage drives, power supply, chassis, SATA cables, operating system, or additional accessories are included. Only the motherboard, installed CPU, installed memory, contact frame, and I/O shield shown in the photographs are included.
Please review all photographs and verify compatibility with your intended chassis, cooling solution, power supply, and other components before purchase.
