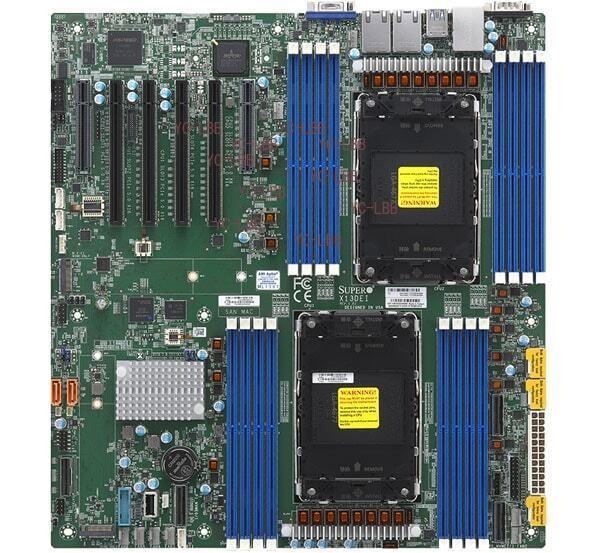

Product SKUs MBD-X13DEI
Physical Stats Form Factor

• EATX

Dimension

• 12.1" x 13.05" (30.74cm x 33.15cm)

Processor CPU

• 4th Gen Intel® Xeon® Scalable processors
• Dual Socket LGA-4677 (Socket E) supported, CPU TDP supports Up to 350W TDP

Core

• Up to 60 cores

System Memory Memory Capacity

• 16 DIMM slots
• Up to 4TB 3DS ECC RDIMM, DDR5-4800MHz

Memory Type

• 4800/4400/4000 MT/s ECC DDR5 RDIMM (3DS) Up to 256GB of memory with speeds of up to 4800MT/s (1DPC)

DIMM Sizes

• 16GB, 32GB, 64GB, 128GB, 256GB
• RDIMM: 16GB, 32GB, 64GB, 128GB, 256GB

Memory Voltage

• 1.1V

Error Detection

• Corrects single-bit errors
• Detects double-bit errors (using ECC memory)

On-Board Devices Chipset

• Intel® C741

SATA

• Intel® C741 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
• Intel® C741 controller for 2 SATA3 (6 Gbps) ports; RAID 0,1

IPMI

• ASPEED AST2600 BMC

Network Controllers

• Dual LAN with Broadcom BCM5720 1GBase-T

Input / Output SATA

• 8 SATA3 (6Gbps) port(s)
• 2 SATA3 (6Gbps) port(s)

LAN

• 1 RJ45 Dedicated IPMI LAN port
• 2 RJ45 Gigabit Ethernet LAN ports

USB

• 6 USB 3 port(s) (4 rear; 2 via header)
• 3 USB 2 port(s) (1 Type A; 2 via header)

Video Output

• 1 VGA D-Sub Connector port(s)

Serial Port

• 2 COM Port(s) (1 header; 1 rear)

TPM

• 1 TPM header

Others

• 3 MCIO PCIe 5.0 x8

Expansion Slots PCIe

• 2 PCIe 5.0 x8,
• 4 PCIe 5.0 x16

M.2

• M.2 Interface: 2 PCIe 4.0 x2
• Form Factor: 2280/22110
• Key: M-Key

System BIOS BIOS Type

• AMI 32MB AMI UEFI

BIOS Features

• ACPI 6.4
• SMBIOS 2.8/3.5
• UEFI 2.8A
• Plug and Play (PnP)
• PCI FW 3.2

Management Software

• Redfish API, Supermicro Server Manager (SSM), Supermicro Power Manager (SPM), Supermicro Update Manager (SUM), SuperDoctor® 5, Super Diagnostics Offline , KVM with dedicated LAN , IPMI 2.0

Security Hardware

• Trusted Platform Module (TPM) 2.0
• Silicon Root of Trust (RoT) – NIST 800-193 Compliant

Features

• Cryptographically Signed Firmware
• Secure Boot
• Secure Firmware Updates
• Automatic Firmware Recovery
• Supply Chain Security: Remote Attestation
• Runtime BMC Protections
• System Lockdown

PC Health Monitoring Voltage

• System temperature, PCH temperature, Memory temperature, CPU temperature, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support, +3.3V standby, Veore, Vmem, Peripheral temperature, Platform Environment Control Interface (PECI)/(TSI)

LED

• UID/Remote UID
• CPU / System Overheat LED

Temperature

• Monitoring for CPU and chassis environment
• CPU thermal trip support
• Thermal Monitor 2 (TM2) support
• PECI

FAN

• 8x 4-pin fan headers (up to 8 fans)
• Fan speed control
• Overheat LED indication
• 8x fans with tachometer monitoring

Other Features

• UID, Node Manager Support, M.2 NGFF connector, Control of power-on for recovery from AC power loss, Chassis intrusion detection, ACPI power management

Operating Environment Operating Temperature Range

• 10°C - 35°C (50°F - 95°F)

Non-Operating Temperature Range

• -40°C - 70°C (-40°F - 158°F)

Operating Relative Humidity Range

• 8% - 90% (non-condensing)

Non Operating Relative Humidity Range

• 5% - 95% (non-condensing)
