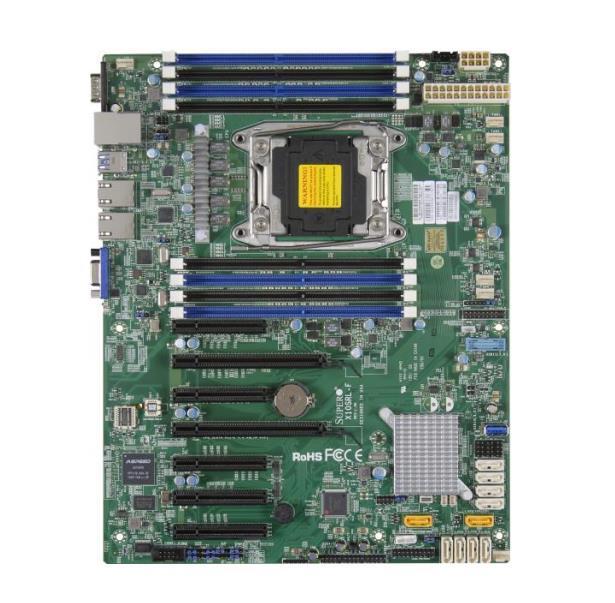

MBD-X10SRL-F

• ATX

Dimensions

• 12" x 9.6" (cm x class="desc" style="box-sizing: border-box; margin: 0px; padding: 0px; font-weight: bold; color: rgb(93, 139, 96) !important;">
• Intel® Xeon® Processor E5-1600 v3, Intel® Xeon® Processor E5-1600 v4, Intel® Xeon® processor E5-2600 v3, Intel® Xeon® processor E5-2600 v4
• Single Socket LGA-2011-3 (Socket R3) supported, CPU TDP supports Up to 145W TDP

Cores / Cache

• Up to 22 cores † / Up to 55MB† cache

Note

• † BIOS version 2.0 or above is required

Note

• ** Motherboard supports this maximum TDP. Please verify your system can thermally support.

System Memory
Memory Capacity

• Up to 256GB Registered ECC RDIMM, DDR4-2400MHz; Up to 512GB LRDIMM LRDIMM, DDR4-2400MHz, in 8 DIMM slotsUp to 1TB ECC 3DS LRDIMM

Memory Type

• 2400†/ 2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (RDIMM / LRDIMM) / 284-pin gold-plated DIMMs

DIMM Sizes

• RDIMM: 4GB, 8GB, 16GB, 32GB
• LRDIMM: 32GB, 64GB
• 3DS LRDIMM: 128GB

Memory Voltage

• 1.2V

Error Detection

• Corrects single-bit errors
• Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset

• Intel® C612

SATA

• Intel® C612 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10

IPMI

• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
• ASPEED AST2400 BMC

Network Controllers

• Dual LAN with Intel® Ethernet Controller I210Supports 10Base-T, 100BASE-TX, and 1000BASE-T, RJ45 output

Graphics

• ASPEED AST2400 BMC

Input / Output
SATA

• 10 SATA3 (6Gbps) port

LAN

• 2 RJ45 Gigabit Ethernet LAN ports
• 1 RJ45 Dedicated IPMI LAN port

USB

• 8 USB 2.0 ports (2 rear + 6 via headers)
• 4 USB 3.2 Gen1 ports (2 rear + 1 via header + 1 Type A)

Video Output

• 1 VGA port

Serial Port / Header

• 2 COM Ports (1 rear, 1 header)
  2 fast UART 16550 serial

TPM

• TPM Header

Expansion Slots
PCI-E

• 2 PCI-E 3.0 x4 (in x8 slot) Auto-switch to 1 x8 and 1 x0,
• 2 PCI-E 3.0 x8,
• 2 PCI-E 3.0 x8 (in x16 slot)
• 1 PCI-E 2.0 x4 (in x8 slot)

System BIOS
BIOS Type

• 128Mb SPI Flash EEPROM with AMI BIOS

BIOS Features

• Plug and Play (PnP)
• APM 1.2
• DMI 2.3
• PCI 2.3
• ACPI 1.0 / 2.0 / 3.0 / 4.0
• USB Keyboard support
• SMBIOS 2.7.1
• UEFI 2.3.1
• RTC (Real Time Clock) class="desc" style="box-sizing: border-box; margin: 0px; padding: 0px; font-weight: bold; color: rgb(93, 139, 96) !important;">
• Intel® Node Manager, IPMI2.0, KVM with dedicated LAN, NMI, SPM, SUM, SuperDoctor® 5, Watchdog

Power Configurations

• ACPI Power Management
• Keyboard Wakeup from Soft-Off
• CPU Fan auto-off in sleep mode
• Power-on mode for AC power recovery

PC Health Monitoring
Voltage

• +12V, +3.3V, +5V, +5V standby, HT, VBAT

Temperature

• Monitoring for CPU and chassis environment, CPU thermal trip support, I2C temperature sensing logic, Thermal Monitor 2 (TM2) support, PECI

LED

• CPU / System Overheat LED, Suspend static indicator LED, UID/Remote UID

Other Features

• Chassis intrusion detection, Chassis intrusion header, Chipkill support, RoHS, Halogen Free

Operating Environment
Operating Temperature Range

• 0°C ~ 55°C (32°F ~ 131°F)

Non-Operating Temperature Range

• -20°C ~ 60°C (-4°F ~ 140°F)

Operating Relative Humidity Range

• 10% ~ 85% (non-condensing)

Non-Operating Relative Humidity Range
