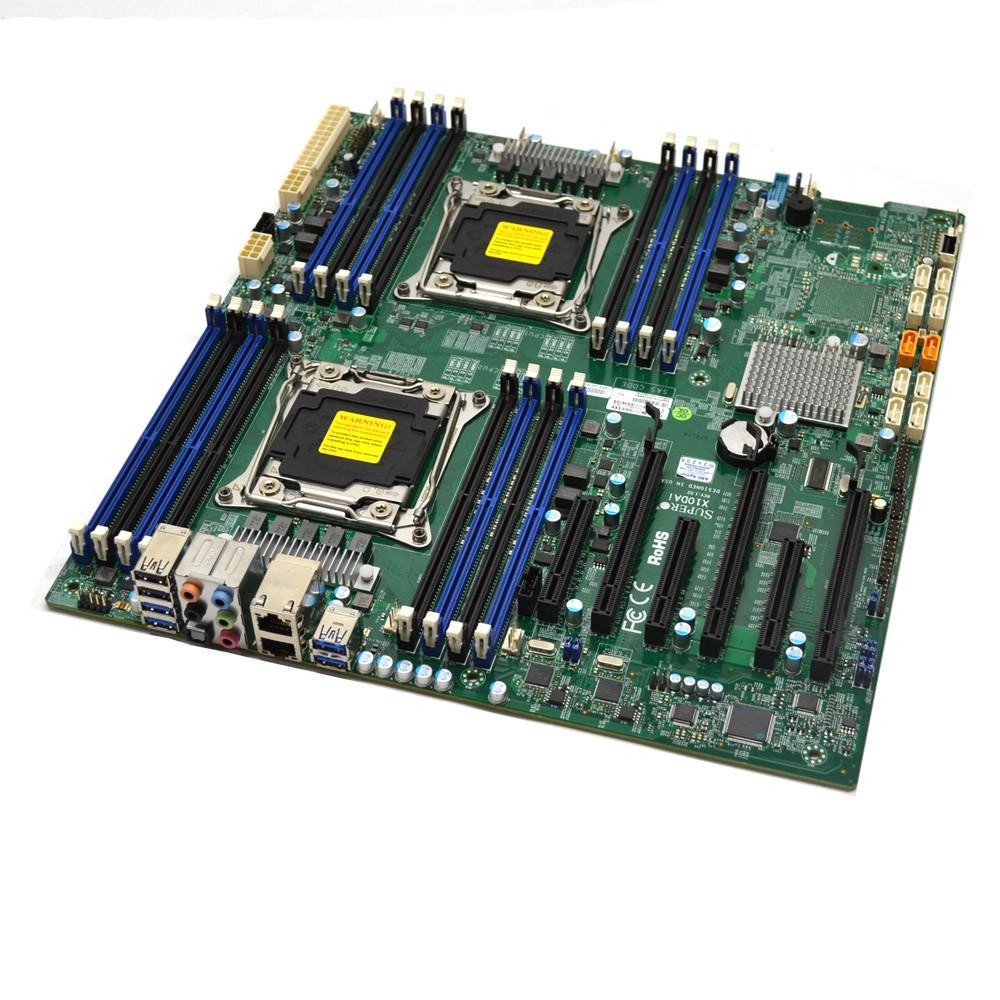

Supermicro X10DAi Dual Socket LGA2011-3 E-ATX Server Workstation Motherboard
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
Supermicro X10DAi Dual Socket LGA2011-3 E-ATX Server Workstation Motherboard
Price: CN $243.00
Supermicro X10DAi Dual Socket Server Workstation Motherboard

The Supermicro X10DAi is a professional dual-socket E-ATX motherboard designed for server, workstation, GPU computing and high-performance multi-core applications.

It features the Intel C612 chipset and supports two Intel Xeon E5-2600 v3/v4 processors using the LGA2011-3 socket. The board provides 16 DDR4 ECC DIMM slots and multiple PCIe expansion slots for graphics cards, networking adapters, storage controllers and other expansion devices.

Key Specifications

  • Brand: Supermicro

  • Model: X10DAi

  • Chipset: Intel C612

  • CPU Socket: Dual LGA2011-3 / Socket R3

  • CPU Support: Intel Xeon E5-2600 v3/v4

  • CPU Configuration: Dual Socket

  • Maximum CPU TDP: Up to 160W

  • Memory: DDR4 ECC

  • Memory Slots: 16 × DIMM

  • Maximum Memory: Up to 2TB 3DS LRDIMM

  • Memory Speed: Up to DDR4-2400

  • Expansion Slots: 3 × PCIe 3.0 x16

  • Additional Slots: 2 × PCIe 3.0 x8, 1 × PCIe 2.0 x4

  • Storage: 10 × SATA 6Gb/s

  • RAID: RAID 0/1/5/10

  • LAN: 2 × Intel i210 Gigabit Ethernet

  • USB: USB 3.0 / USB 2.0

  • Audio: Realtek ALC1150 HD Audio

  • Form Factor: E-ATX

  • Dimensions: 30.5 × 33.0 cm / 12 × 13 inches

  • Product Type: Dual-Socket Server / Workstation Motherboard

Product Highlights

Dual Xeon Processing
Supports two Intel Xeon E5-2600 v3/v4 processors for high core-count and multi-threaded computing.

16 DDR4 ECC DIMM Slots
Supports server-grade ECC DDR4 memory and high-capacity memory configurations.

Multiple PCIe Expansion Slots
Provides three PCIe 3.0 x16 slots and additional PCIe x8/x4 slots for GPUs, storage controllers, networking cards and other expansion devices.

10 SATA 6Gb/s Ports
Provides extensive storage connectivity with support for RAID 0, 1, 5 and 10.

Dual Gigabit Ethernet
Integrated Intel i210 Gigabit Ethernet controllers provide dual LAN connectivity.

E-ATX Form Factor
The 30.5 × 33.0 cm E-ATX design is suitable for compatible workstation and server chassis.

Compatibility Note:
Xeon E5-2600 v4 processors may require an appropriate BIOS version. Please verify the motherboard BIOS, CPU compatibility, chassis form factor and power supply requirements before installation.
