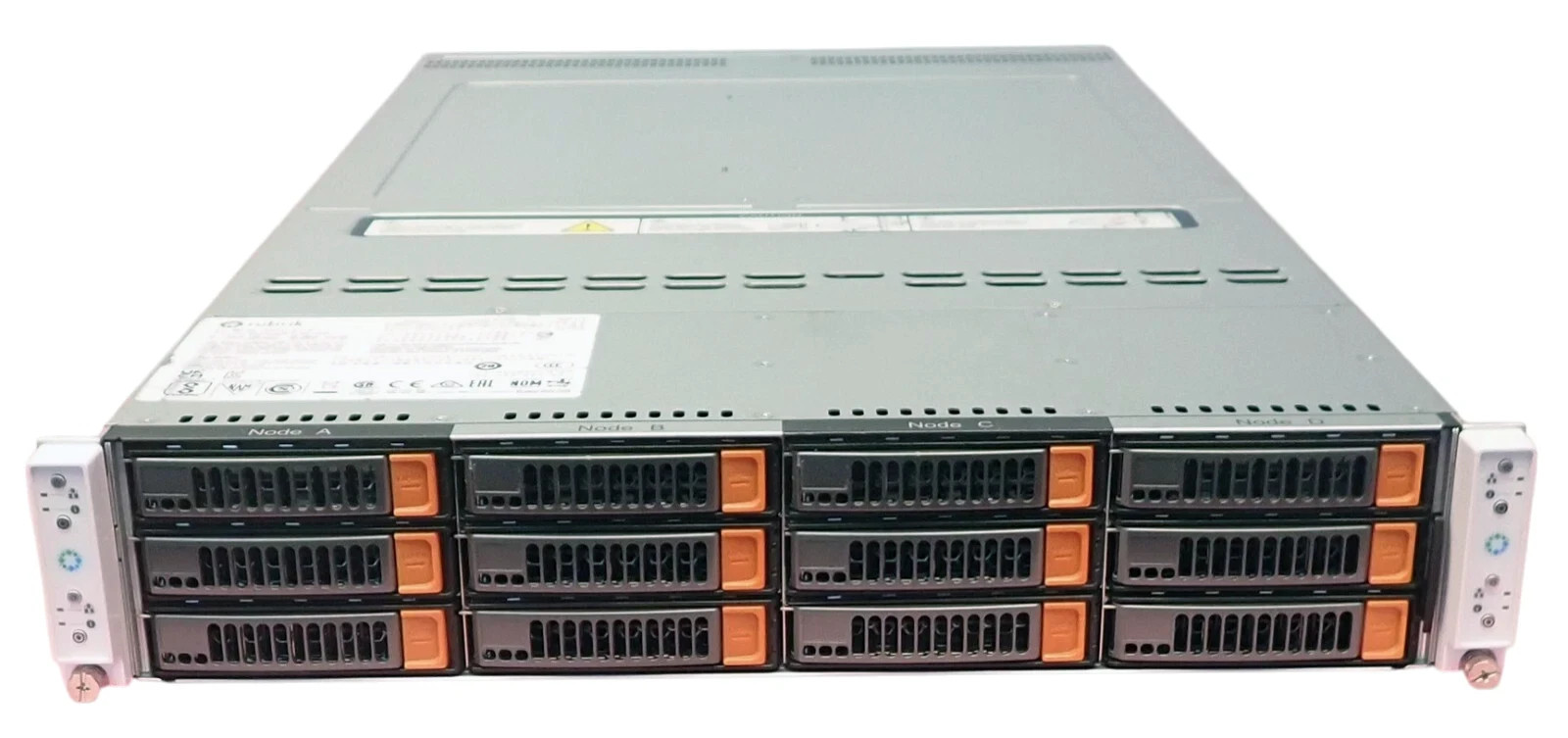

Supermicro SuperServer 6029BT-HNC0R 4x X11DPT-B Server Nodes CTO 0CPU 0MEMModel: 6029BT-HNC0RChassis P/N: CSE-827Node P/N: X11DPT-B
In Good Condition, Full Working OrderTested, 2 Years Warranty12x Empty Caddies IncludedIncluded:

• 1 x Supermicro SuperServer 6029BT-HNC0R CSE-827 4-Node Server Chassis with:
• 12 x 3.5" SAS/SATA Bays with caddies and screws
• Backplane: 12x SAS/SATA SSD/HDD Bays (3-Per Node) -BPN-SAS3-827BHQ-N3
• 2 x 2200WPower Supplies PSU - PWS-2K22A-1R
• 4 x X11DPT-B Server Nodeseach with:
• 2 x Heatsink -SNK-P0067PS
• 24 x DDR4 Memory Slots
• 1 x Internal 2.5" SATA Non-Hot Plug Bay
• Motherboard -X11DPT-B rev 1.02
• Backplane Adapter -BPN-ADP-4TNS6-1UB rev 1.00
• 1 x Riser Card (1x PCIe x16with Dual Sata Power Headers) -RSC-TR-6E-RI13 rev 1.00 with:
• 1 x SupermicroAOC-S3008L-L8e-RI13 Eight-Port SAS 12Gb/s Internal Host Bus Adapter HBA -AOC-S3008L-L8e-RI13 rev 2.00
• 1 x Supermicro Dual M.2 SATA/NVMe Hybrid ‘Butterfly’ Carrier Add-on Card -AOC-SMG3-2H8M2-B rev 1.00
• 1 x Supermicro i350Dual Port1GbE RJ45 + 57414 Dual Port 25GbE SFP28 I/O Add-on Module - AOC-MH25G-b2S2GM rev 1.00
• 1 x Trusted Platform Module TPM 1.2 style="text-align: left;">Model: Supermicro SuperServer 6029BT-HNC0R
• Chassis: Supermicro CSE-827BHQ+-R2K22BP
• Form Factor: 2U Rackmount Server
Processor
• Dual Socket P (LGA3647)
• Supports 1st & 2nd Gen Intel Xeon Scalable Processors
• Dual UPI up to 10.4GT/s
• CPU TDP support: 70W – 205W
• Up to 28 CPU cores per processor
Motherboard
• Supermicro X11DPT-B
Memory
• 24 DIMM Slots
• Supports up to 6TB ECC DDR4 RDIMM / LRDIMM
• Memory speeds: 2933 / 2666 / 2400 / 2133 MHz
• Supports Intel Optane DC Persistent Memory (DCPMM)
Chipset
• Intel C621
Storage
• 3x Hot-Swap 3.5" NVMe / SAS3 Drive Bays (per node)
• SAS3 12Gbps via Broadcom 3008 controller (IT mode)
• 2x M.2 NVMe or SATA slots (2240 / 2260 / 2280) via optional AOC-SMG3-2H8M2-B
• 1x SuperDOM (Disk On Module) port
• SATA DOM support for boot drive
Networking
• 1x Dedicated RJ45 IPMI Management Port
• SIOM network card slot (network card required for data networking)
Graphics
• ASPEED AST2500 BMC Graphics
• 1x VGA Port
Rear I/O Ports (Per Node)
• 2x USB 3.0 Ports
• 1x VGA Port
• 1x Dedicated IPMI LAN Port
Expansion Slots (Per Node)
• 2x PCIe 3.0 x16 Low Profile Slots
• 1x SIOM Network Slot
Management
• IPMI 2.0 with KVM-over-LAN
• Virtual Media over LAN
• Intel Node Manager
• Supermicro SuperDoctor 5
• Watchdog Support
BIOS
• AMI 32Mb SPI Flash ROM
Cooling
• 4x Heavy Duty 80mm PWM Fans
• Air Shroud Cooling Design
Power Supply
• Dual Redundant 2200W Titanium Power Supplies
• PMBus Support
Front Panel
• Power Button
• UID Button
• Power Status LED
• HDD Activity LED
• Network Activity LEDs
• UID LED
Dimensions
• Width: 447 mm (17.6")
• Height: 88 mm (3.47")
• Depth: 765 mm (30.11")
Weight
• Net Weight: 25.4 kg (56 lbs)
• Gross Weight: 39.24 kg (86.5 lbs)
Operating Environment
• Operating Temperature: 10°C – 35°C
• Storage Temperature: -40°C – 60°C
• Operating Humidity: 8% – 90% (non-condensing)
• Storage Humidity: 5% – 95% style="text-align: left; ">RoHS Compliant
We can supply this server with a different specification to suit your requirements; more or less memory, different or additional hard drives, additional network cards etc. Please contact us for a quote.
