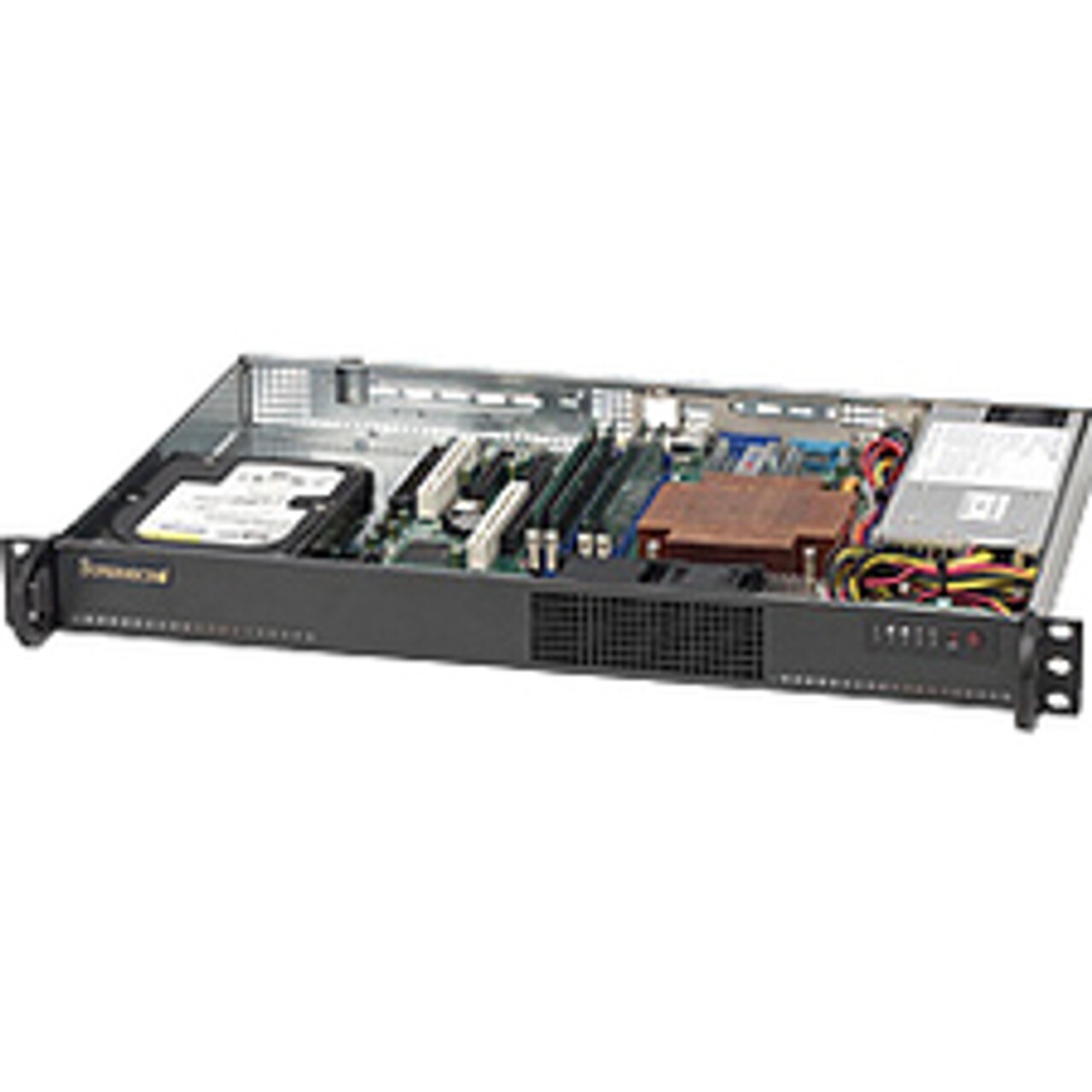

Supermicro SuperChassis CSE-510-200B 1U Rackmount Short-Depth 200W Chassis NEW
These come with a 5 Year Warranty from Vector Data.
SpecificationsProduct SKUsCSE-510-200B

• SuperChassis 510-200B

Form Factor

11.3" Mini 1U chassis - supports for maximum motherboard sizes: Micro-ATX 9.6" x 9.6"

Processor Support

Single processors Intel® Xeon® 3000 series (65W) and Xeon® 3400 series (45W)

DimensionsHeight

• 1.7" (43 mm)

Width

• 17.2" (437 mm)

Depth

• 11.3" (287 mm)

Gross Weight

• 11 lbs (4.99 kg)

Packaging (W x H x L)

• N/A

Available Color

• Black

Expansion Slots

• 1x full-height half-length PCI expansion slot (Optional) (Riser Card Required)

Drive Bays

• 1 x 3.5" Internal Drive Bay
• Optional 4 x 2.5" Internal Drive
• SAS or enterprise SATA HDD only recommended

Front PanelButtons

• Power On/Off button
• System Reset Button

LEDs

• 2 Network Activity LEDs
• Fan Fail/System Over Heat LED
• HDD activity LED
• Power Status LED

Systems CoolingFans

• 2 x 4cm counter-rotating PWM fan(s)
• Optional 1 x 4cm counter-rotating PWM fan(s)

Operating Environment (System)Operating Temperature Range

• 5°C - 35°C (41°F - 95°F)

Non-Operating Temperature Range

• -40°C - 60°C (-40°F - 140°F)

Operating Relative Humidity Range

• 8% - 90% (non-condensing)

Non-Operating Relative Humidity Range

• 5% - 95% (non-condensing)

Power Supply1U 200W Multi-output power supply with 80plus w/20pin outputPower Efficiency

• 86%

Total Output Power and Input

• 200W with Input 100 - 240Vac

AC Input Frequency

• 192 x 76 x 40.3 mm

Output Type

• 20pin ATX

-12V

• Max: 0.5A / Min: 0A

+12V

• Max: 16A / Min: 0.2A (100Vac - 240Vac)

+5V

• Max: 8AA / Min: 0.2A

+3.3V

• Max: 8A / Min: 0.2A

+5Vsb

• Max: 2A / Min: 0.2A

Certification

• Certified


Regulatory (Power Supply)Power Supply Safety / EMC

• CCC
• CE/EMC
• FCC class B
• TUV/CB
• UL/CUL
