Product Description

Please note: The buyer is responsible for customs clearance and payment of duties.

If you have other configuration needs, you can contact us and we will customize it for you.

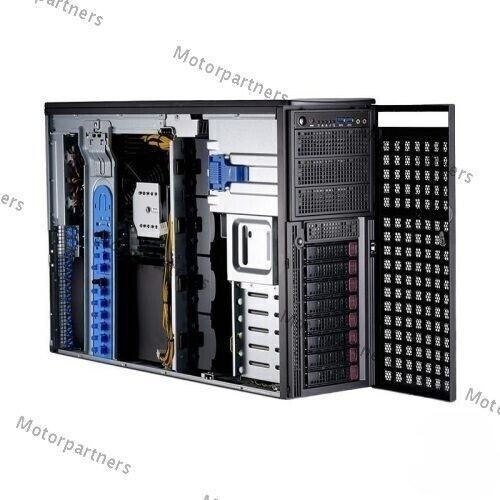

Supermicro SYS-7049GP-TRT Tower Workstation Server Support 4GPU /Support or CTO

Product Details

Brand:

Tower

model:

Product situation:

Hard disk backplane:

HDD:

Hard drive bays:

Cooling fan:

Memory

RAID Controller:

Network card:

Motherboard comes with its own network card

Rack rails

Note: The appearance of the chassis may have wear and scratches. The photos on the link are inventory photos, not actual photos. Please carefully browse the details for the actual configuration

Product SKUs
SYS-7049GP-TRT

• SuperServer 7049GP-TRT style="box-sizing: border-box; line-height: 0; margin: 0px; display: block; content: "";"/>Super class="desc" style="box-sizing: border-box; margin: 0px; padding: 0px; font-weight: bold; color: rgb(93, 139, 96) !important;">
• Dual Socket P (LGA 3647)
• 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors‡,
  3 UPI up to 10.4GT/s
• Support CPU TDP 70-205W

Cores

• Up to 28 Cores

Note‡BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R)GPU Support

• Please refer to:Compatible GPU list

System Memory
Memory Capacity

• 16 DIMM slots
• Up to 4TB 3DS ECC DDR4-2933MHz†RDIMM/LRDIMM
• Supports Intel® Optane™ DCPMM††

Memory Type

• 2933†/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM

Note†2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro
††Cascade Lake only. Contact your Supermicro sales rep for more info.

On-Board Devices
Chipset

• Intel® C621 chipset

SATA

• SATA3 (6Gbps); RAID 0, 1, 5, 10

Network Controllers

• Intel® X550 Dual Port 10GBase-T
• Virtual Machine Device Queues reduce I/O overhead
• Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output

IPMI

• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Graphics

• ASPEED AST2500 BMC

Input / Output
SATA

• 10 SATA3 (6Gbps) ports

LAN

• 2 RJ45 10GBase-T ports
• 1 RJ45 Dedicated IPMI LAN port

USB

• 5 USB 3.0 ports (2 rear, 2 via header, 1 Type A)
• 4 USB 2.0 ports (2 rear, 2 via headers)

Video

• 1 VGA port

Audio

• 7.1 HD Jacks

Serial Port/Header

• 2 COM ports (1 rear, 1 Header)

System BIOS
BIOS Type

• AMI 32Mb SPI Flash class="desc" style="box-sizing: border-box; margin: 0px; padding: 0px; font-weight: bold; color: rgb(93, 139, 96) !important;">
• Intel® Node Manager
• IPMI 2.0
• SSM,SPM,SUM
• SuperDoctor® 5

PC Health Monitoring
CPU

• Monitors for CPU Cores, Chipset Voltages, Memory.
• 4+1 Phase-switching voltage regulator

FAN

• Fans with tachometer monitoring
• Status monitor for speed control
• Pulse Width Modulated (PWM) fan connectors

Temperature

• Monitoring for CPU and chassis environment
• Thermal Control for fan Factor
  • 4U Rackmountable / Tower
  • Optional Rackmount Kit
  Model
  • 18.2" (462mm)
  Width
  • 7.0" (178mm)
  Depth
  • 26.5" (673mm)
  Package
  • 27" (H) x 13" (W) x 38" (D)
  Weight
  • Net Weight: 46 lbs (20.9 kg)
  • Gross Weight: 62 lbs (28.1 kg)
  Available Colors
  • Dark Gray


  Front Panel
  Buttons
  • Power On/Off button
  • System Reset button
  LEDs
  • Power status LED
  • Hard drive activity LED
  • Network activity LEDs
  • System Overheat & Power Fail LED
  Ports
  • 2 Front USB 3.0 Ports


  Expansion Slots
  PCI-Express
  • 4 PCI-E 3.0 x16 (double-width) slots
  • 2 PCI-E 3.0 x16 (single-width) slots
  • 1 PCI-E 3.0 x4 (in x8 slot)


  Drive Bays / Storage
  Hot-swap
  • 8 Hot-swap 3.5" drive bays
  • Optional 4x 2.5" NVMe supported
  M.2
  • 1 NVMe based M.2 SSD
  • Form Factors: 2280, 22110


  System Cooling
  Fans
  • 4 Heavy duty fans
  • 2 Rear exhaust fans
  • 2 Optional Rear fans (required for Passive GPUs)
  Heatsink
  • 2 Active heatsink with optimal fan speed control


  Power Supply2200W Redundant Power Supplies with PMBusTotal Output Power and Input
  • 1200W with Input 100-127Vac
  • 1800W with Input 200-220Vac
  • 1980W with Input 220-230Vac
  • 2090W with Input 230-240Vac
  • 2200W with Input 220-240Vac (for UL/cUL use only)
  • 2090W with Input 230-240Vdc (for CCC only)
  AC Input Frequency
  • (W x H x L)
    • 76 x 40 x 336 mm
    +12V
    • Max: 100A / Min: 0A (100-127Vac)
    • Max: 150A / Min: 0A (200-220Vac)
    • Max: 165A / Min: 0A (220-230Vac)
    • Max: 174.17A / Min: 0A (230-240Vac)
    • Max: 183.3A / Min: 0A (220-240Vac)
    5VSB
    • Max: 1A / Min: 0A
    Output Type
    • Backplanes (gold finger)
    Certification Titanium Level
    [Test Report]


    Operating Environment

    RoHS
    • RoHS Compliant

    Environmental Spec.
    • Operating Temperature:
      10°C ~ 35°C (50°F ~ 95°F)
    • Non-operating Temperature:
      -40°C to 60°C (-40°F to 140°F)
    • Operating Relative Humidity:
      8% to 90% (non-condensing)
    • Non-operating Relative Humidity:
      5% to 95%
