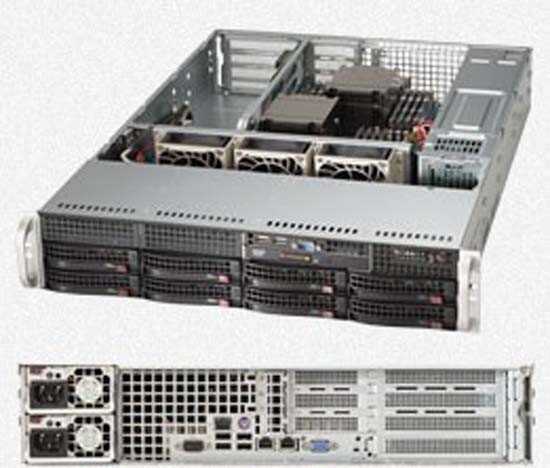

Supermicro SYS-6027R-WRF Barebones Server X9DRW-iF NEW IN STOCK, 5 Yr Wty
Product SKUsSYS-6027R-WRF

• SuperServer 6027R-WRF (Black)

Motherboard
Super X9DRW-iFProcessor/CacheCPU

• Dual Socket R (LGA 2011)
• Intel® Xeon® processor E5-2600
  andE5-2600 v2family†
  (up to 135W TDP)

Note† BIOS version 3.0 or above is requiredCache

• Up to 30MB

System Bus

• QPI up to 8 GT/s

System MemoryMemory Capacity

• 16x 240-pin DDR3 DIMM sockets
• Up to 1TB DDR3 ECC LRDIMM
• Up to 512GB DDR3 ECC Registered memory (RDIMM)
• Up to 128GB DDR3 ECC Un-Buffered memory (UDIMM)

Memory Type

• 1866/1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs

DIMM Sizes

• 32GB, 16GB, 8GB, 4GB, 2GB, 1GB

Memory Voltage

• 1.5 V, 1.35 V

Error Detection

• Corrects single-bit errors
• Detects double-bit errors (using ECC memory)

On-Board DevicesChipset

• Intel® C602 Chipset

SATA

• SATA 2.0 3Gbps with RAID 0, 1, 5, 10
• SATA 3.0 6Gbps with RAID 0, 1

IPMI

• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
• Renesas SH7757 BMC

Network Controllers

• Intel® i350 Dual Port Gigabit Ethernet Controller
• Virtual Machine Device Queues reduce I/O overhead
• Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
• 1x Realtek RTL8211E PHY (dedicated IPMI)

Graphics

• G200 (Renesas SH7757 BMC)

Input / OutputSAS/SATA

• Customizable storage

LAN

• 2x RJ45 Gigabit Ethernet LAN ports
• 1x RJ45 Dedicated IPMI LAN port

USB

• 6x USB 2.0 ports total
  (4x rear + 2x via header)

VGA

• 1x VGA port

Serial Port / Header

• 1x Fast UART 16550 port / 1 Header

ChassisForm Factor

• 2U Rackmount

Model

• 17.2" (437mm)

Height

• 3.5" (89mm)

Depth

• 25.5" (648mm)

Gross Weight

• 52 lbs (23.6kg)

Available Colors

• Black

Front PanelButtons

• Power On/Off button
• System Reset button
• UID button

LEDs

• Power status LED
• HDD activity LED
• 2x Network activity LEDs
• Universal Information (UID) LED

Expansion SlotsPCI-Express

• 4 PCI-E 3.0 x8 slots (2x Full-height Full-length, 2x Full-height Half-length)
• UIO AOC Compatibility Matrix
(Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram andAOC Supportfor details.)

Drive BaysHot-swap

• 8x 3.5" Hot-swap SAS / SATA HDD trays (ready for PCI-E storage controller card)

Backplane1x 2U SAS backplane w/ Enclosure Management
(SAS support requires optional SAS controller)Peripheral DrivesDVD-ROM

• Slim DVD-ROM drive (optional)

System CoolingFans

• 3x 80mm 7,000 RPM 4-pin PWM fans

Power Supply with Power Distributor740W (1+1) Redundant high-efficiency power supply with PMBusAC Input

• 100-240 V, 50-60 Hz, 9-3.5 Amp

DC Output

• 4 Amp @ +5V standby
• 61.7 Amp @ +12V

With Power Distributor

• +5V: 30 Amp
• +3.3V: 24 Amp
• -12V: 0.6 Amp

Certification
Platinum Certified
[Test Report]System BIOSBIOS Type

• 128Mb SPI Flash EEPROM with AMI BIOS

BIOS Features

• Plug and Play (PnP)
• APM 1.2
• PCI 2.2
• ACPI 1.0 / 2.0 / 3.0 / 4.0
• BIOS resuce hot keys
• USB Keyboard support
• SMBIOS 2.3
• UEFI

Operating Environment / ComplianceRoHS

• RoHS Compliant

Environmental Spec.

• Operating Temperature:
  5°C to 35°C (41°F to 95°F)
• Non-operating Temperature:
  -40°C to 60°C (-40°F to 140°F)
• Operating Relative Humidity:
  8% to 90% (non-condensing)
• Non-operating Relative Humidity:
  5% to 95% (non-condensing)

See Parts ListParts List - (Items Included)Part NumberQtyDescriptionMotherboard / X9DRW-iF Motherboard
2U ChassisBackplaneBPN-SAS-825TQ1Sup 3x SAS / SATA hdd; SATA conCable 1CBL-0343L-012IPASS TO 4 SATA 76/66/54/45CM, W/ 66CM SB, S. 30AWGRiser / RetentionSNK-P0048PS22U Passive CPU Heat Sink for X9, X10 Generation Systems Equipped w/ a Narrow ILM MBRail SetMCP-290-00053-0N1 setRail set, quick/quick, default for 2,3U 17.2"W
