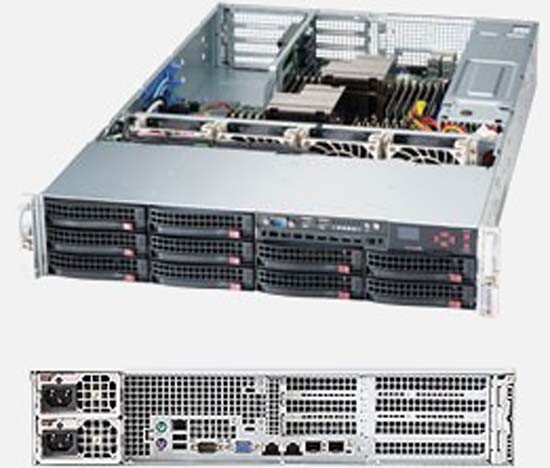

Supermicro SYS-6027R-72RFTP+ Barebones Server X9DRW-7TPF+ NEW IN STOCK 5 Yr Wty
Product SKUsSYS-6027R-72RFTP+

• SuperServer 6027R-72RFTP+ (Black)

Motherboard
Super X9DRW-7TPF+Processor/CacheCPU

• Dual Socket R (LGA 2011)
• Intel® Xeon® processor E5-2600
  andE5-2600 v2family†
  (up to 135W TDP)

Note† BIOS version 3.0 or above is requiredCache

• Up to 30MB

System Bus

• QPI up to 8 GT/s

System MemoryMemory Capacity

• 24x 240-pin DDR3 DIMM sockets
• Up to 1.5TB DDR3 ECC LRDIMM
• Up to 768GB DDR3 ECC Registered memory (RDIMM)
• Up to 128GB DDR3 ECC Un-Buffered memory (UDIMM)

Memory Type

• 1866/1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs

DIMM Sizes

• 32GB, 16GB, 8GB, 4GB, 2GB, 1GB

Memory Voltage

• 1.5 V, 1.35 V

Error Detection

• Corrects single-bit errors
• Detects double-bit errors (using ECC memory)

On-Board DevicesChipset

• Intel® C602J chipset

SAS

• SAS2 from LSI 2208 (1GB cache)
• HW RAID 0, 1, 5, 6, 10, 50, 60 support
• Supports up to 16 drives

SATA

• Via Cable for SATA controller
• SATA 2.0 3Gbps with RAID 0, 1, 5, 10
• SATA 3.0 6Gbps with RAID 0, 1

IPMI

• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
• Nuvoton WPCM450 BMC

Network Controllers

• Intel® 82599 Dual Port 10G SFP+
• Intel® i350 Dual Port Gigabit Ethernet
• Virtual Machine Device Queues reduce I/O overhead
• Supports 10G SFP+, 100BASE-TX, and 1000BASE-T, RJ45 output
• 1x Realtek RTL8201N PHY (dedicated IPMI)

Graphics

• Matrox G200eW

Input / OutputSerial ATA

• 2x SATA 3.0 ports (6Gbps)

SAS

• 8x SAS2 ports (6Gbps)

LAN

• 2x SFP+ 10GbE LAN ports
• 2x RJ45 Gigabit Ethernet LAN ports
• 1x RJ45 Dedicated IPMI LAN port

USB

• 5x USB 2.0 ports total
  (2x rear + 2x via header + 1x Type A)

VGA

• 1x VGA port

Serial Port / Header

• 1x Fast UART 16550 port / 1 Header

ChassisForm Factor

• 2U Rackmount

Model

• 17.2" (437mm)

Height

• 3.5" (89mm)

Depth

• 27.75" (705mm)

Gross Weight

• 52 lbs (23.6kg)

Available Colors

• Black

Front PanelButtons

• Power On/Off button
• System Reset button

LEDs

• Power status LED
• Hard drive activity LED
• 2x Network activity LEDs
• System Overheat LED
• Power fail LED

Expansion Slots (via riser card)PCI-Express

• Left: 1 PCI-E 3.0 (x16), 2 PCI-E 3.0 (x8) Full-height
• Right: 2 PCI-E 3.0 (x8) Low-profile
• Please referherefor AOC Support details
• UIO AOC Compatibility Matrix

(Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram andAOC Supportfor details.)

Drive BaysHot-swap

• 10x 3.5" Hot-swap SAS / SATA HDD trays (connected to onboard storage controller - 2x SATA3, 8x SAS)

Peripheral DrivesDVD-ROM

• Slim DVD-ROM drive (optional)

Backplane1x SAS2 / SATA backplaneSystem CoolingFans

• 4x 8cm heavy duty PWM fans

Power Supply with Power Distributor920W high-efficiency (94%+) AC-DC Redundant power supplies with PMBus and I2CAC Input

• 100-240 V, 50-60 Hz, 11-4.5 Amp

DC Output

• 4 Amp @ +5V standby
• 75 Amp @ +12V

Certification Platinum Certified
[Test Report]System BIOSBIOS Type

• 128Mb SPI Flash EEPROM with AMI BIOS

BIOS Features

• Plug and Play (PnP)
• APM 1.2
• PCI 2.2
• ACPI 1.0 / 2.0
• USB Keyboard support
• SMBIOS 2.3
• UEFI

Operating Environment / ComplianceRoHS

• RoHS Compliant

Environmental Spec.

• Operating Temperature:
  10°C to 35°C (50°F to 95°F)
• Non-operating Temperature:
  -40°C to 70°C (-40°F to 158°F)
• Operating Relative Humidity:
  8% to 90% (non-condensing)
• Non-operating Relative Humidity:
  5% to 95% (non-condensing)

See Parts ListParts List - (Items Included)Part NumberQtyDescriptionMotherboard / X9DRW-7TPF+ Motherboard
2U ChassisBackplaneBPN-SAS-829BTQ110 HDD BPN, SGPIO only support; added precharged resistor for hot-swapCable 1CBL-0157L-0118 pin to 8 pin ribbon SGPIO cable with tube, 60cm, PBFCable 2CBL-CDAT-052714 pin to 4 pin 15cm LAN3/4 LED extension cable for 829B with X9DRW-7TPF+. 26AWG.,RoHS/REACH,PBFCable 3CBL-0278L-011IPASS TO 4 SATA RA 64/54/44/34CM W/64CM SB, RA. 30AWGCable 4CBL-0287L-011IPASS TO 4 SATA 43/43/33/33CM, W/ 43cm SB, RA ,30AWGCable 5CBL-0230L265CM SATA ROUND S-RA PBF. 26AWGRiser / RetentionSNK-P0048PSC22U Passive CPU Heat Sink for X9, X10 2U WIO/WIO+ Series ServersRail SetMCP-290-00053-0N1 setRail set, quick/quick, default for 2,3U 17.2"W
