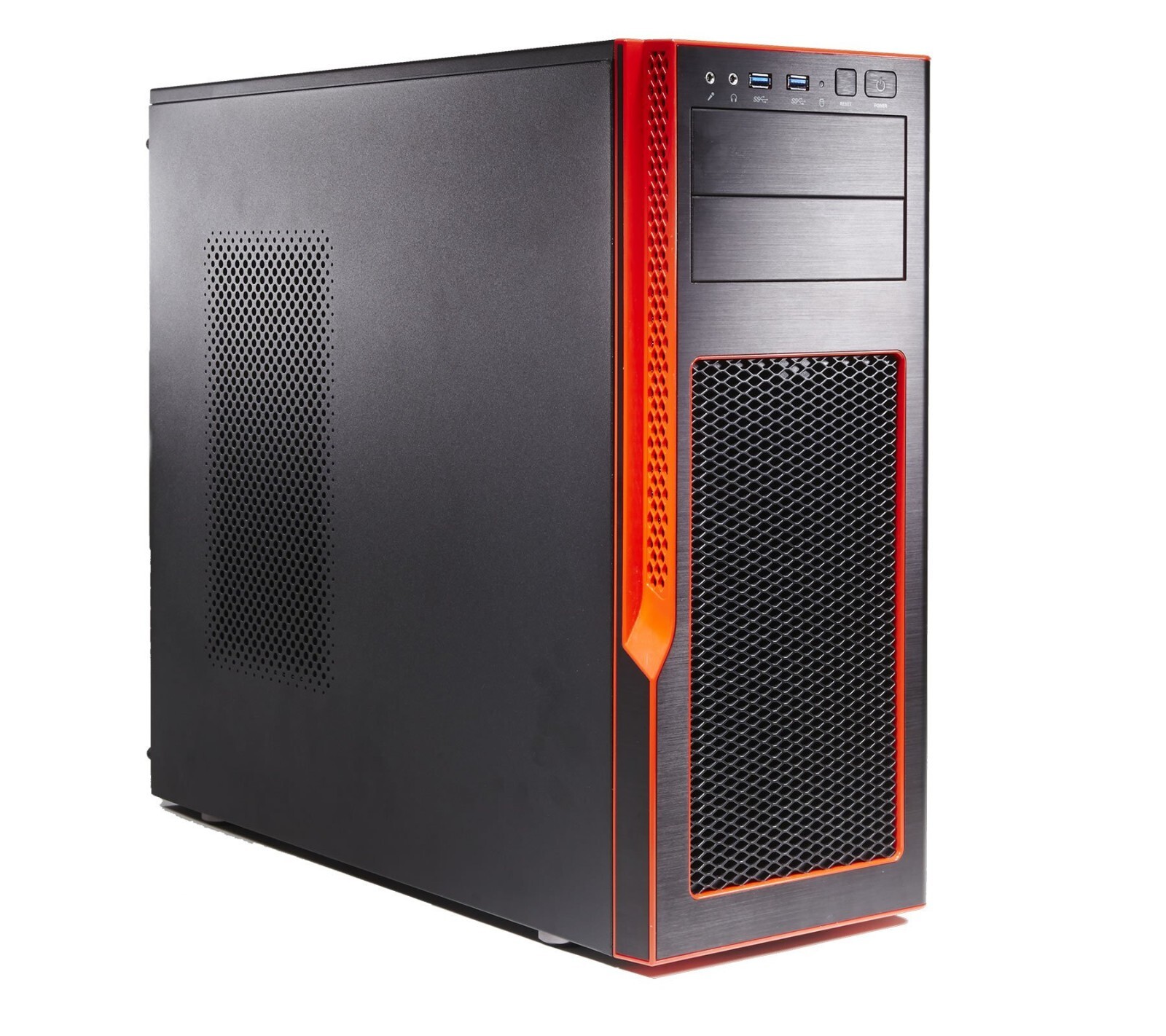

Supermicro SYS-5039AD-T Barebones Tower Server NEW IN STOCK 5 Year Warranty
SpecificationsProduct SKUsSuperServer

• SYS-5039AD-T (Black)

Motherboard
Super C7Z170-SQProcessor/CacheCPU

• Intel® 7th/6th Gen Core i7/i5/i3 series processors; CPU TDP support up to 115W TDP
• Single Socket H4 (LGA 1151)

NoteBIOS version 2.0 or above is required to support 7th Generation Intel® Core™ ProcessorsSystem MemoryMemory Capacity

• 4x 288-pin DDR4 DIMM slots
• Supports up to 64GB DDR4 Non-ECC Un-Buffered memory (UDIMM) in 4 DIMM slots

Memory Type

• Frequency up to 3200MHz (OC) non-ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMs
• Support overclocking up to 3200MHz*

  * Please check the operation manual for supported components

DIMM Sizes

• 16GB, 8GB, 4GB, 2GB, 1GB

Memory Voltage

• 1.2V

On-Board DevicesChipset

• Intel® Z170 Express Chipset

SATA

• SATA3 via PCH w/ RAID 0, 1, 5, 10

Network Controllers

• Intel® i219V Controller
• Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output

Audio

• ALC 1150 HD Audio

Input / OutputSATA

• 6x SATA3 (6Gbps) ports

LAN

• 1x RJ45 Gigabit Ethernet LAN port

USB

• 6x USB 3.0 ports (2 rear, 4 via headers)
• 6x USB 2.0 ports (2 rear, 4 via headers)
• 1x USB 3.1 (10Gbps) Type C port (rear)
• 1x Thunderbolt AIC header

Audio

• 7.1 HD Jacks

Display

• 1x DVI - D, 1x DP (Display Port), 1x HDMI

Serial Port / Header

• 1x COM port (header)

Expansion SlotsPCI-Express

• 2 PCI-E 3.0 x16 (1 x16 or dual x8) slots
• 1 PCI-E 3.0 x16 (x4) slot
• 1 PCI-E 3.0 x4 slot
• 2 PCI-E 3.0 x1 (in x4) slots
• 1 PCIe M.2 (PCIe x4 2260/2280/22110)

System BIOSBIOS Type

• 128Mb SPI Flash EEPROM with AMI® BIOS

BIOS Features

• DMI (SMBIOS) 2.7
• ACPI 5.0
• USB Keyboard support

ChassisForm Factor

• 18.1" (460mm)

Width

• 7.9" (201mm)

Depth

• 19.4" (493mm)

Package

• 24.9" (H) x 14.2" (W) x 24.0" (D)

Weight

• Net Weight: 22.27 lbs (10.1 kg)
• Gross Weight: 28.22 lbs (12.8 kg)

Available Colors

• Black

Front PanelButtons

• Power On/Off Button
• Reset Button

LEDs

• Power LED
• Hard drive activity LED

Ports

• 2x USB 3.0 ports
• 1x Earphone, 1x Microphone port

Drive BaysInternal HDD/SSD

• 4x 2.5" drive bays, and 6x combination bays that can house either 3.5" or 2.5" drives

Peripheral

• 2x 5.25" Peripheral Drive Bays

System CoolingFans

• 3x 12cm PWM fans

Power Supply750W Multi-output Power Supply for Desktop, semi-modular cable outputAC Input

• 100-240Vac, 50-60Hz

+5V

• Max: 20A & Min: 0A

+12V

• Max: 62A & Min: 0.1A (100Vac-240Vac)

+3.3V

• Max: 20A & Min: 0A

+5V SB

• Max: 2.5A & Min: 0A

-12V

• Max: 0.3A

CertificationGold CertifiedPC Health MonitoringVoltage

• Monitors for CPU Cores, +12V, +3.3V, +5V, +5V Standby, VBAT, HT, Memory, Chipset Voltages.
• 5-Phase-switching voltage regulator with auto-sense from 0.8375V-1.60V

FAN

• Total of five 4-pin fan headers supporting up to 5 fans
• 5x fans with tachometer status monitoring
• Status monitor for speed control
• Status monitor for on/off control
• Support 3-pin fans (w/o speed control)
• Low noise fan speed control
• Pulse Width Modulated (PWM) fan connectors

Temperature

• Monitoring for CPU and chassis environment
• CPU thermal trip support
• FC temperature sensing logic
• Thermal Monitor 2 (TM2) support
• PECI

Operating Environment / ComplianceRoHS

• RoHS Compliant

Environmental Spec.

• Operating Temperature:
  10°C to 35°C (50°F to 95°F)
• Non-operating Temperature:
  -40°C to 70°C (-40°F to 158°F)
• Operating Relative Humidity:
  8% to 90% (non-condensing)
• Non-operating Relative Humidity:
  5% to 95% (non-condensing)

Parts ListParts List - (Items Included)
Part Number
Qty
Description
Motherboard / ChassisMBD-C7Z170-SQ
CSE-GS5A-753R1
1Super C7Z170-SQ Motherboard
3U Mid-Tower ChassisManualMNL-1822-QRG1SYS-5039AD-T (C7Z170-SQ, CSE-GS5A-753R), QRGPower SupplyPWS-753-PQ1[DESKTOP ONLY], PS2/ATX 750W Multi-output Power supply with modular cable 80Plus Gold, RoHS/REACH
