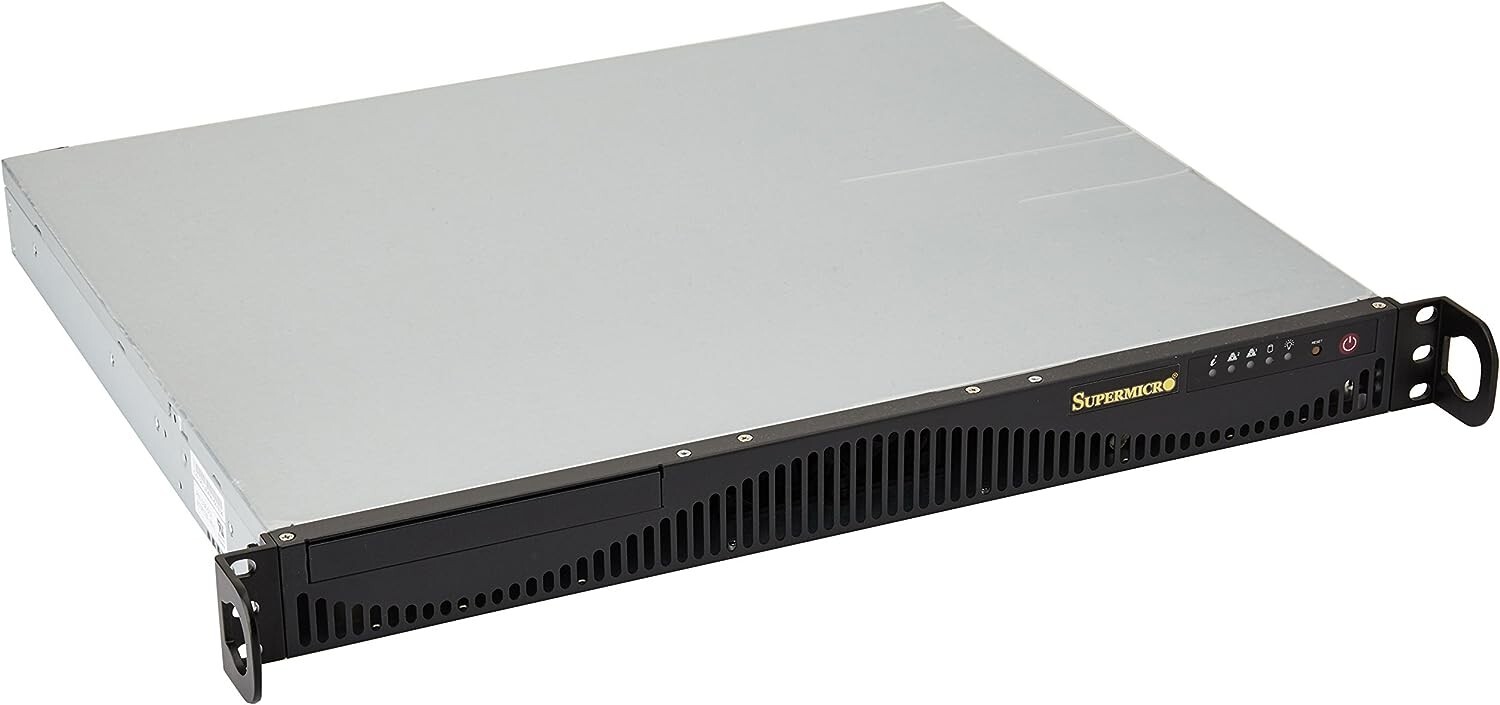

Supermicro SYS-5018D-MF 1U Short-Depth Barebones Server
These are leftover brand new from an OEM project. These come with a 5 Year Warranty from Vector Data.
SpecificationsProduct SKUsSYS-5018D-MF

• SuperServer 5018D-MF (Black)

Motherboard
Super X10SLL-FProcessor/CacheCPU

• Intel® Xeon® processor E3-1200 v3/v4 family, 4th Gen Core i3, Pentium, Celeron processors
• Socket H3 (LGA 1150)

System MemoryMemory Capacity

• 4x 240-pin DDR3 DIMM slots
• Supports up to 32 GB DDR3 ECC Un-Buffered memory (UDIMM)

Memory Type

• 1600MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs

DIMM Sizes

• 8GB, 4GB, 2GB, 1GB

Memory Voltage

• 1.5 V, 1.35V

Error Detection

• Corrects single-bit errors
• Detects double-bit errors (using ECC memory)

On-Board DevicesChipset

• Intel® C222 Express PCH

SATA

• SATA3 (6Gbps) w/ RAID 0, 1
• SATA2 (3Gbps) w/ RAID 0, 1, 5, 10

IPMI

• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
• ASPEED AST2400 with 10/100/1000Mbps

Network Controllers

• Intel® i217LM + Intel® i210AT Controllers
• Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
• 1x Realtek RTL8201N PHY (dedicated IPMI)

VGA

• ASPEED AST2400 BMC

Input / OutputSerial ATA

• 2x SATA3 (6Gbps) ports
• 4x SATA2 (3Gbps) ports
• SATA DOM Power Connector

LAN

• 2x RJ45 Gigabit Ethernet LAN ports
• 1x RJ45 Dedicated IPMI LAN port

USB

• 6x USB 2.0 ports (4 rear, 2 via header)
• 2x USB 3.0 ports (1 Type-A, 1 via header)

VGA

• 1x VGA port

Serial Port / Header

• 1x Fast UART 16550 serial port
• 1x internal header

PC Health MonitoringVoltage

• Monitors for CPU Cores, +12V, +3.3V, +5V, +5V Standby, VBAT, HT, Memory, Chipset Voltages.
• 5-Phase-switching voltage regulator with auto-sense from 0.8375V-1.60V

FAN

• Total of five 4-pin fan headers supporting up to 5 fans
• 5x fans with tachometer status monitoring
• Status monitor for speed control
• Status monitor for on/off control
• Support 3-pin fans (w/o speed control)
• Low noise fan speed control
• Pulse Width Modulated (PWM) fan connectors

Temperature

• Monitoring for CPU and chassis environment
• CPU thermal trip support
• FC temperature sensing logic
• Thermal Monitor 2 (TM2) support
• PECI

LED

• CPU / System Overheat LED
• +5V Standby alert LED

Other Features

• Chassis intrusion detection
• Chassis intrusion header

ChassisForm Factor

• 1U Rackmount

Model

• 1.7" (43mm)

Width

• 17.2" (437mm)

Depth

• 14.5" (369mm)

Weight

• Gross Weight: 16.2 lbs (7.4 kg)
• Net Weight: 12 lbs (5.3 kg)

Available Colors

• Black

Front PanelButtons

• Power On/Off button
• System Reset button

LEDs

• Power LED
• Hard drive activity LED
• 2x Network activity LEDs
• System Overheat LED

Expansion SlotsPCI-Express

• 1x PCI-E 3.0 x8 (in x16) Full-height slot

Drive BaysInternal HDDs

• 2x 3.5" internal SATA3/2 HDD bays w/ RAID (2.5" optional)


Peripheral DrivesDVD-ROM

• Slim DVD-ROM Drive (optional)

System CoolingFans

• 2x 4cm 4-pin PWM Fans

Power Supply350W AC power supply w/ PFCAC Voltage

• 100-240 V, 50-60 Hz, 4.2-1.8 Amp

+5V

• 18 Amp

+5V standby

• 3 Amp

+12V

• 29 Amp

+3.3V

• 15 Amp

Certification
Gold Certified
[Test Report]System BIOSBIOS Type

• 128Mb SPI Flash EEPROM with AMI BIOS

BIOS Features

• DMI 2.3
• ACPI 1.0 / 2.0
• USB Keyboard support
• SMBIOS 2.3

ManagementSoftware

• IPMI (Intelligent Platform Management Interface) v2.0 with KVM support
• SuperDoctor® III
• Watch Dog
• NMI

Power Configurations

• ACPI / ACPM Power Management
• Main Switch Override Mechanism
• Power-on mode for AC power recovery
• Internal/External modem ring-on

Operating Environment / ComplianceRoHS

• RoHS2 (2011/65/EU) Compliant

Environmental Spec.

• Operating Temperature:
  10°C to 35°C (50°F to 95°F)
• Non-operating Temperature:
  -40°C to 70°C (-40°F to 158°F)
• Operating Relative Humidity:
  8% to 90% (non-condensing)
• Non-operating Relative Humidity:
  5% to 95% (non-condensing)

Parts ListParts List - (Items Included)
Part Number
Qty
Description
Motherboard / ChassisMBD-X10SLL-F
CSE-512F-350B1
1Super X10SLL-F Motherboard
1U ChassisAir UP X9SRE/I, X9 Mylar Air Shroud, 12"x9.6" MBCable QRGRiser CardRSC-RR1U-E161RSC-RR1U-E16 with PIC-E x16 outputHeatsink / RetentionSNK-P0046P11U PASSIVE CPU HS FOR INTEL LGA1156Power SupplyPWS-351-1H11U 350W MULTI OUTPUT 80PLUS GOLD PWS
