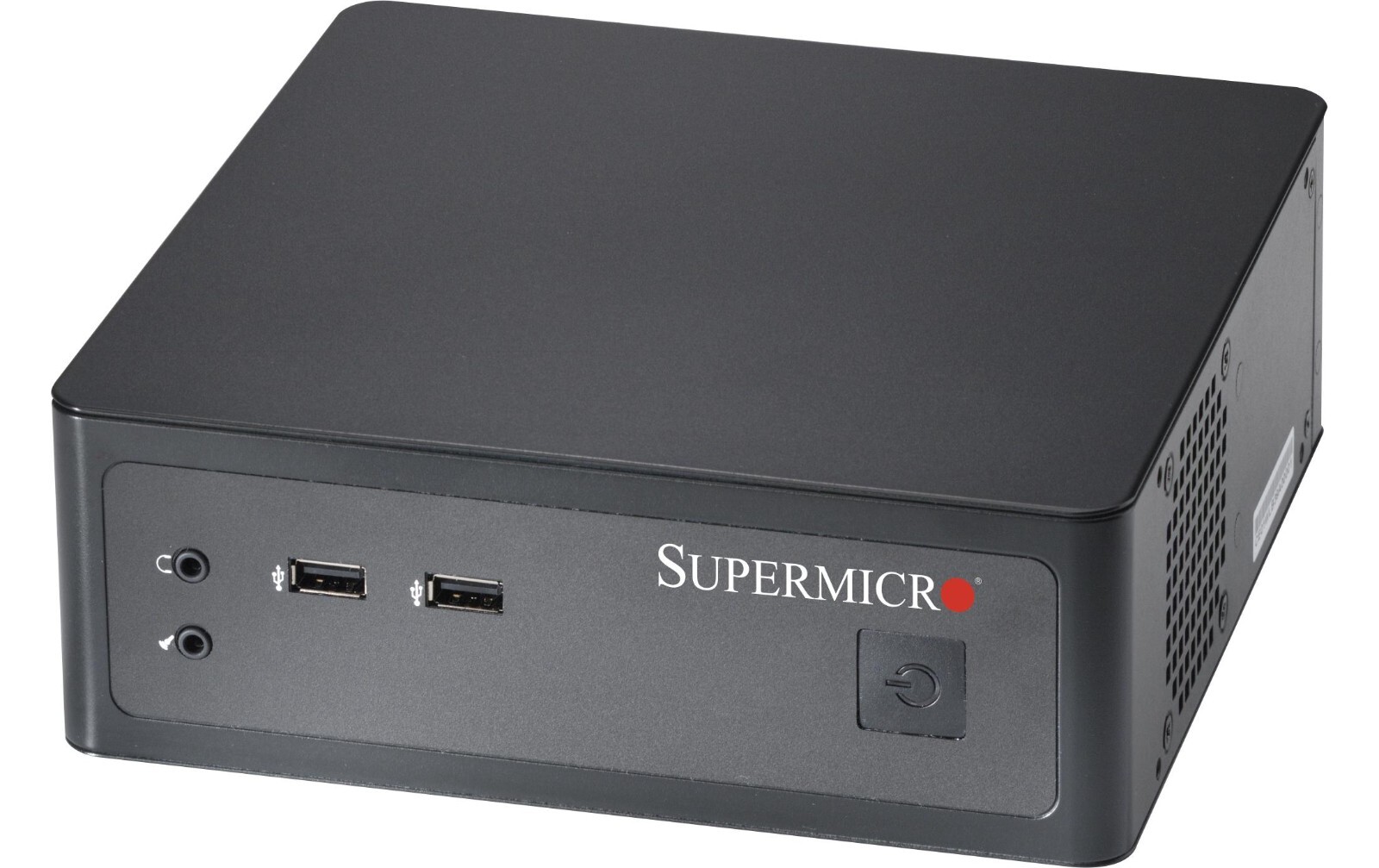

Supermicro SYS-1018L-MP Mini-ITX Barebones Server NEW IN STOCK 5 Yr Warranty
SpecificationsProduct SKUsSYS-1018L-MP

• SuperServer 1018L-MP (Black)

Motherboard
Super X10SLVProcessor/CacheCPU

• Intel® 4th Gen Core i7/i5/i3, Pentium, Celeron processors (Up to 45W TDP*)
  * Please contact your Supermicro Sales Representative for additional details
• Single Socket H3 (LGA 1150)

System MemoryMemory Capacity

• 2x DDR3 204-pin SO-DIMM slots
• Supports up to 16GB of non-ECC DDR3 1600MHz (Single Channel)

Memory Type

• 1600MHz DDR3 SO-DIMM, 204-pin gold-plated DIMMs

DIMM Sizes

• 8GB, 4GB, 2GB, 1GB

Memory Voltage

• 1.5 V

On-Board DevicesChipset

• Intel® H81 Express Chipset

SATA

• Intel® H81 Express Chipset

USB

• Intel® H81 Express Chipset

Network Controllers

• Intel® i217 + Intel® i210AT Controllers
• Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output

Audio

• RealTek ALC888S 7.1 High Definition Audio

Graphics

• Intel HD 4600 Graphics, Processor Graphic

Super I/O

• NCT6106D

Input / OutputSerial ATA

• 2 SATA 3.0 ports (6Gbps) including 1 mSATA
• 2 SATA 2.0 ports (3Gbps)

LAN

• 2 RJ45 Gigabit Ethernet LAN ports

USB

• 4 USB 2.0 ports, 2 USB 3.0 ports

Audio

• 7.1 HD Audio header and rear I/O

• 1 Display Port, 1 HDMI, 1 DVI-I, 2 Independent Displays

ChassisForm Factor

• Mini-ITX

Model

• 7.68" (195mm)

Height

• 2.68" (68mm)

Depth

• 7.68" (195mm)

Weight

• Gross Weight: 5.75 lbs (2.6 kg)
• Net Weight: 3.86 lbs (1.75 kg)

Available Colors

• Black

Front PanelButtons

• Power button

LEDs

• Power LED (Hard drive activity LED)

I/O Ports

• 2 USB 2.0
• 2 Audio Jacks

Expansion SlotsPCI-E

• 1 Mini-PCIe w/ mSATA support

Drive BaysInternal

• 1x 2.5" HDD tray
• Enterprise SATA HDD only recommended

System CoolingFans

• 1x 6cm 4-pin high performance cooling fan

Power Supply84W DC Power AdapterSystem BIOSBIOS Type

• 128Mb SPI Flash EEPROM with AMI UEFI BIOS

BIOS Features

• Plug and Play (PnP)
• DMI 2.3
• ACPI 1.0 / 2.0
• USB Keyboard support
• RTC (Real time Clock) Wakeup

Operating Environment / ComplianceRoHS

• RoHS Compliant

Environmental Spec.

• Operating Temperature:
  0°C to 40°C (32°F to 104°F)
• Non-operating Temperature:
  -20°C to 60°C (-4°F to 140°F)
• Operating Relative Humidity:
  10% to 85% (non-condensing)
• Non-operating Relative Humidity:
  10% to 95% (non-condensing)

Parts ListParts List - (Items Included)Part NumberQtyDescriptionMotherboard / ChassisMBD-X10SLV
CSE-101i1
1Super X10SLV Motherboard
Embedded Mini-ITX ChassisPower SupplyMCP-250-10137-0N184W, Lockable AC to DC adapter without power cord - EN62368Quick Reference GuideMNL-1604-QRG11018L-MP Quick Reference GuideI/O ShieldMCP-260-00070-0N1Standard I/O Shield for X10SLV with EMI GasketHeat SinkSNK-P0049A411U Active CPU Heat Sink for Intel Sokcet H, H2, and H3 Motherboards
