Key Applications
- Enterprise Server
- iSCSI SAN
- HPC, Data Center
- Database Processing & Storage
- Corporate Database
- Appliance Optimized Storage Building Blocks
Key Features
- Dual Socket E (LGA-4677) 5th/4th Gen Intel® Xeon® Scalable processors
- Up to 4TB 3DS ECC RDIMM, DDR5-5600MT/s(1DPC) in 16 DIMM slots
- 2x 10 GbE onboard via Broadcom BCM57416
- 1x GbE Dedicated LAN for server remote management: IPMI 2.0 / KVM over LAN / Media over LAN

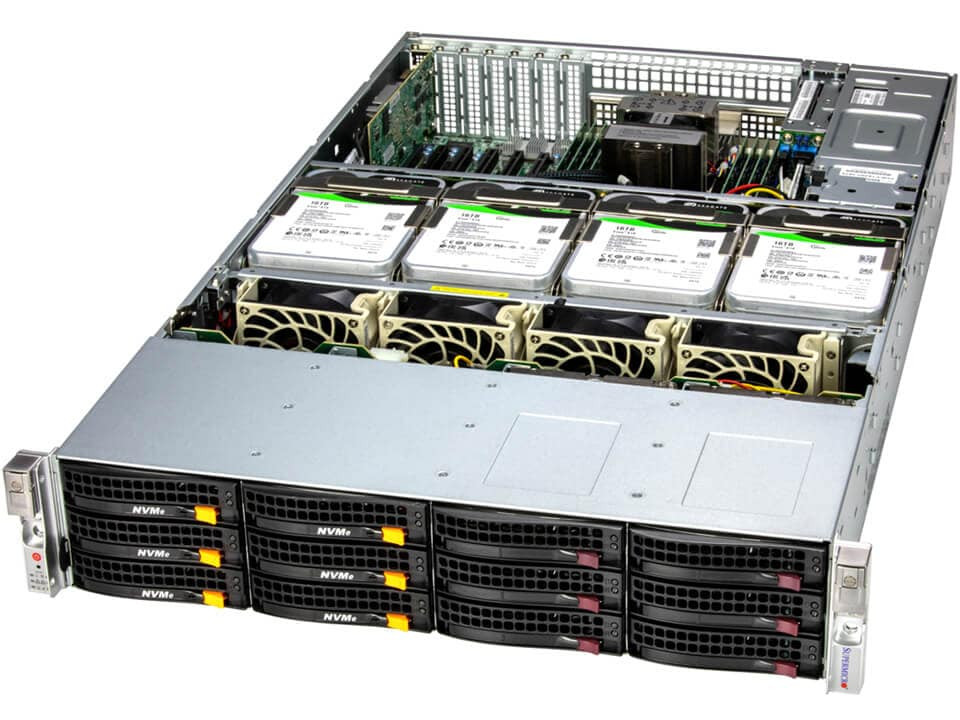

- 16x 3.5"/2.5" Hot-swap SAS3/SATA3 drives, 2x Rear 2.5" SATA Slots, 2x NVMe M.2 (form factor: 2280 and 22110)
- 4x 8cm hot-swap counter-rotate redundant PWM cooling fans
- 1600W Redundant Power Supplies Titanium Level (96%)
- HBA Controller support via Broadcom® 3816
Standard Parts (Parts Included)
Part Number Qty Description Motherboard / Chassis MBD-X13DEI-T CSE-829HTS-R1K62LPBP2 1 1 Super X13DEI-T Motherboard 2U Chassis Add-on Card / Module AOC-S3816L-L16IT-O 1 16 int 12Gb/s SAS3 ports,x8 Gen4, HBA - LP,122 HDD w/exp Backplane BPN-NVME5-LA26A-S12 1 2U 12-Slot 3.5 BPN-SAS3-829HA-A4 1 4-port internal SAS3 12Gbps backplane, support up to 4x 3.5-inch SAS3/SATA3 HDD/SSD Cable CBL-0277L 1 HDD POWER CABLE (BIG 4 PIN; 32CM), PBF CBL-CDAT-0728 1 4 Pin to 4 Pin I2C Cable, 65cm, 26AWG, 4 Wires, Pinout 1-1 CBL-SAST-1250A-100 1 SlimSAS (x8 ST to x4 STR and miniS)80/50CM,100OHM,RoHS CBL-SAST-1281-100 1 Slimline x8 (STR) to 2x Slimline x4 (STR),80CM,100 OHM, CBL-CDAT-0607 1 [NR] FRONT CNTL,20 TO 20 PIN, P0.5, FFC,FLAT, 23.5CM, STD,Ro CBL-CDAT-0921-85 1 [NR] I2C,(1x4F to 1x4F)/P2.5,85CM,26AWG,RoHS CBL-PWCD-0160-IS 2 PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH CBL-PWEX-1078 4 PWEX,FAN,1X4/P2.5 TO 1X4/P2.54,20CM,22AWG,5A/PIN,RoHS Parts MCP-260-00042-3N 1 STD I/O shield for X13 server MB with venting holes Air Shroud MCP-310-82619-0B 1 Sponge air Block sets for CSE-826B and LA26-AW Software SFT-OOB-LIC 1 License key for enabling OOB BIOS management Heatsink / Retention SNK-P0087V 1 1U Passive CPU VC HS for X13 Intel Eagle Stream Platform SNK-P0088AP4 1 2U Active CPU Heat Sink for X13 Gen. Building Block Solution *Power Supply PWS-1K62A-1R 2 AC-DC 1600W, Titanium Level, Redundancy, 1U, DC Output: +12V and +12Vs, 203 x 73.5 x 40 mm, AC Input: 90 - 264 VAC/47-63Hz, PMBus 1.2 with DSP controller,HF,RoHS/REACH *Power Distributor PDB-PT829H-2824 1 2U standard output with 24Pin PDB support up to *Fan FAN-0209L4 4 80x80x38 mm, 13.5K RPM, Middle Cooling Fan for 2U and above FAN-0166L4 OR 4 80x80x38 mm, 13.5K RPM, Optional Middle Cooling Fan for 2U Ultra Series Servers (Hot-swappable Version of FAN-0162L4) FAN-0206L4
80x80x38 mm, 13.5K RPM, Middle Cooling Fan for 2U and above Servers *Front Panel FPB-TB826-T 1 Chassis transfer board for SC826 *Drive Tray(s) MCP-220-00075-0B 12 Black gen 5.5 hot-swap 3.5" HDD tray MCP-220-82902-0N 1 Middle tray plate for SC829H MCP-220-82903-0N 4 Internal mid tray with handle for SC829H MCP-290-82607-0N 1 826B/216B rear dummy cover for 2 X 2.5" HDD cage,RoHS *Rail Set MCP-290-00053-0N-01 1 36"; Rail set for Auto-latch, quick/quick, 2, 3U 17.2";W
