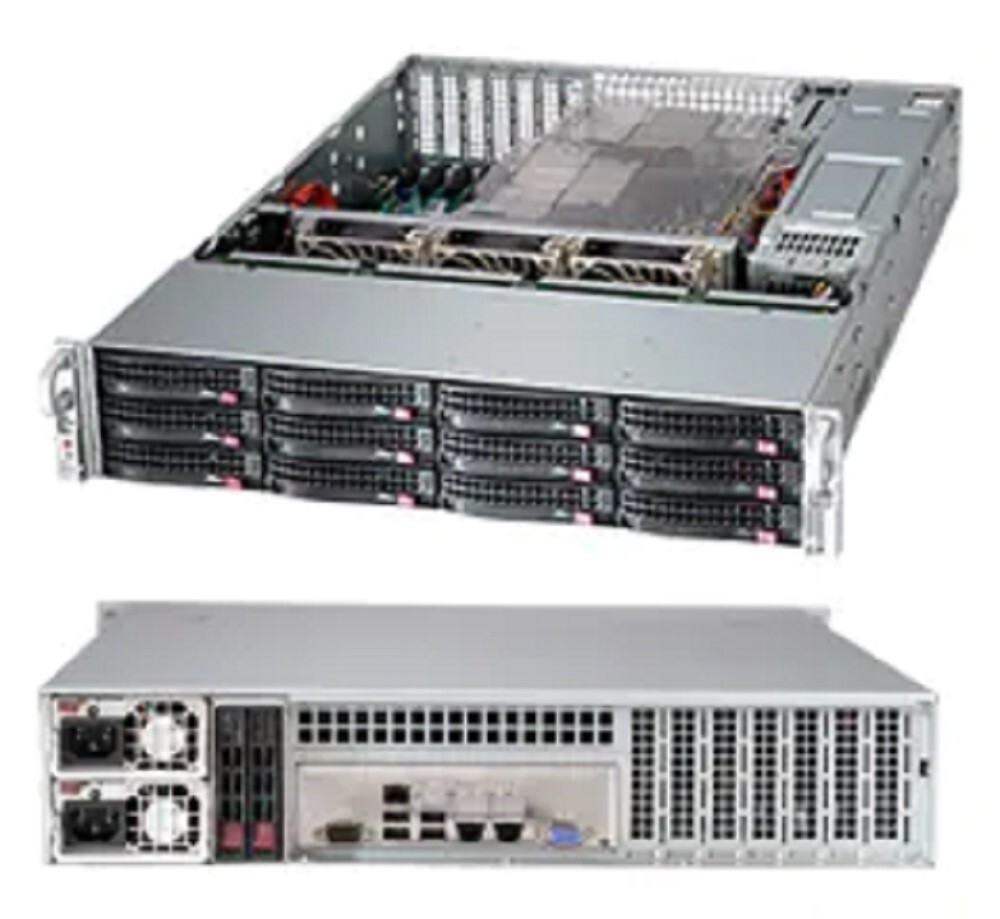

SupermicroSSG-6027R-E1CR12LThese are leftover brand new from an OEM project. These come with a 5 Year Warranty from Vector Data.
SpecificationsProduct SKUsSSG-6028R-E1CR12L

• SuperStorage 6028R-E1CR12L (Black)

Motherboard
Super X10DRH-iTProcessor/CacheCPU

• Intel® Xeon® processor E5-2600v4†/ v3 family (up to 145W TDP)*

• Dual Socket R3 (LGA 2011)

Cores / Cache

• Up to22 Cores†/ Up to55MB†Cache

System Bus

• QPI up to 9.6 GT/s

Note†BIOS version 2.0 or above is requiredNote* Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization.
System MemoryMemory Capacity

• 16x 288-pin DDR4 DIMM slots
• Up to 2TB†ECC 3DS LRDIMM, 512GB ECC RDIMM

Memory Type

• 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit

DIMM Sizes

• RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB
• LRDIMM: 64GB, 32GB
• 3DS LRDIMM: 128GB

Memory Voltage

• 1.2 V

Error Detection

• Corrects single-bit errors

On-Board DevicesChipset

• Intel® C612 chipset

SAS

• SAS3 (12Gbps) via Broadcom 3008
• IT mode firmware

SATA

• SATA3 (6Gbps) with RAID 0, 1, 5, 10

IPMI

• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
• ASPEED AST2400 BMC

Network Controllers

• Intel® X540 Dual Port 10GbE
• Virtual Machine Device Queues reduce I/O overhead
• Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
• 1 Realtek RTL8201N PHY (dedicated IPMI)

Graphics

• ASPEED AST2400 BMC

Input / OutputLAN

• 2 RJ45 10GBase-T LAN ports
• 1 RJ45 Dedicated IPMI LAN port

USB

• 2 USB 3.0 ports (rear)
• 2 USB 2.0 ports (rear)
• 1 Type A

VGA

• 1 VGA port

Serial Port / Header

• 1 Fast UART 16550 port / 1 Header

ChassisForm Factor

• 2U Rackmount

Model

• 17.2" (437mm)

Height

• 3.5" (89mm)

Depth

• 25.6" (648mm)

Weight

• Gross Weight: 58 lbs (26.3 kg)
• Net Weight: 34 lbs (15.4 kg)

Available Colors

• Black

Front PanelButtons

• Power On/Off button
• System Reset button

LEDs

• Power status LED
• Hard drive activity LED
• 2 Network activity LEDs
• System Information LED
• Power fail LED

Expansion SlotsPCI-Express

• 1 PCI-E 3.0 x16 slot
• 6 PCI-E 3.0 x8 slots
• Slot 1 & 2 occupied by controller and JBOD Expansion Port

Drive BaysHot-swap

• 12x 3.5" Hot-swap SAS3/SATA3 drive bays

Optional

• 2x 2.5" Hot-swap SATA drive bays (rear)

BackplaneSAS3/SATA3 single expander per backplaneSystem CoolingFans

• 3x 8cm hot-swap redundant PWM cooling fans

Power Supply with Power Distributor920W high-efficiency (94%+) AC-DC Redundant power supplies with PMBus and I2CAC Input

• 100-240 V, 50-60 Hz, 11-4.5 Amp

DC Output

• 4 Amp @ +5V standby
• 75 Amp @ +12V

Certification Platinum Certified
[Test Report]System BIOSBIOS Type

• 128Mb SPI Flash EEPROM with AMI BIOS

BIOS Features

• Plug and Play (PnP)
• APM 1.2
• PCI 2.2
• ACPI 1.0 / 2.0
• USB Keyboard support
• SMBIOS 2.3
• UEFI

Operating Environment / ComplianceRoHS

• RoHS Compliant

Environmental Spec.

• Operating Temperature:
  10°C to 35°C (50°F to 95°F)
• Non-operating Temperature:
  -40°C to 70°C (-40°F to 158°F)
• Operating Relative Humidity:
  8% to 90% (non-condensing)
• Non-operating Relative Humidity:
  5% to 95% (non-condensing)

Parts ListParts List - (Items Included)
Part Number
Qty
Description
Motherboard / ChassisMBD-X10DRH-iT
CSE-826BE1C-R920LPB1
1Super X10DRH-iT Motherboard
2U 2U SAS3 12Gbps single-expander backplane, support up to 8x 3.5-inch SAS3/SATA3 HDD/SSD and 4x NVMe/SAS3/SATA3 storage devicesCable 1CBL-SAST-05324MINI SAS LABEL FOR REDUNDANT PWR SYSTEMSPartsMCP-260-00042-0N1STD I/O shield for X9 socket R server MB with Gasket.Heatsink / RetentionSNK-P0048PS22U Passive CPU Heat Sink for X9, X10 Generation Systems Equipped w/ a Narrow ILM MBPower SupplyPWS-920P-SQ2920W 1U Redundant PWS W/ Quiet ModeFanFAN-0126L4380x80x38 mm 7K RPM Chassis Middle Fan w/ HousingDrive Tray(s)MCP-220-00075-0B12Black 3.5" HDD trayAdd On CardAOC-S3008L-L8E-O-P1LSI 3008 based SAS3 HBA, 12Gb, 8 internal ports, 122HDD, Gen3 x8 Standard Low ProfileAdd On ModuleAOM-SAS3-8I8E-LP18-port Mini SAS HD Int-to-Ext cable adapter w/ LP bracket
