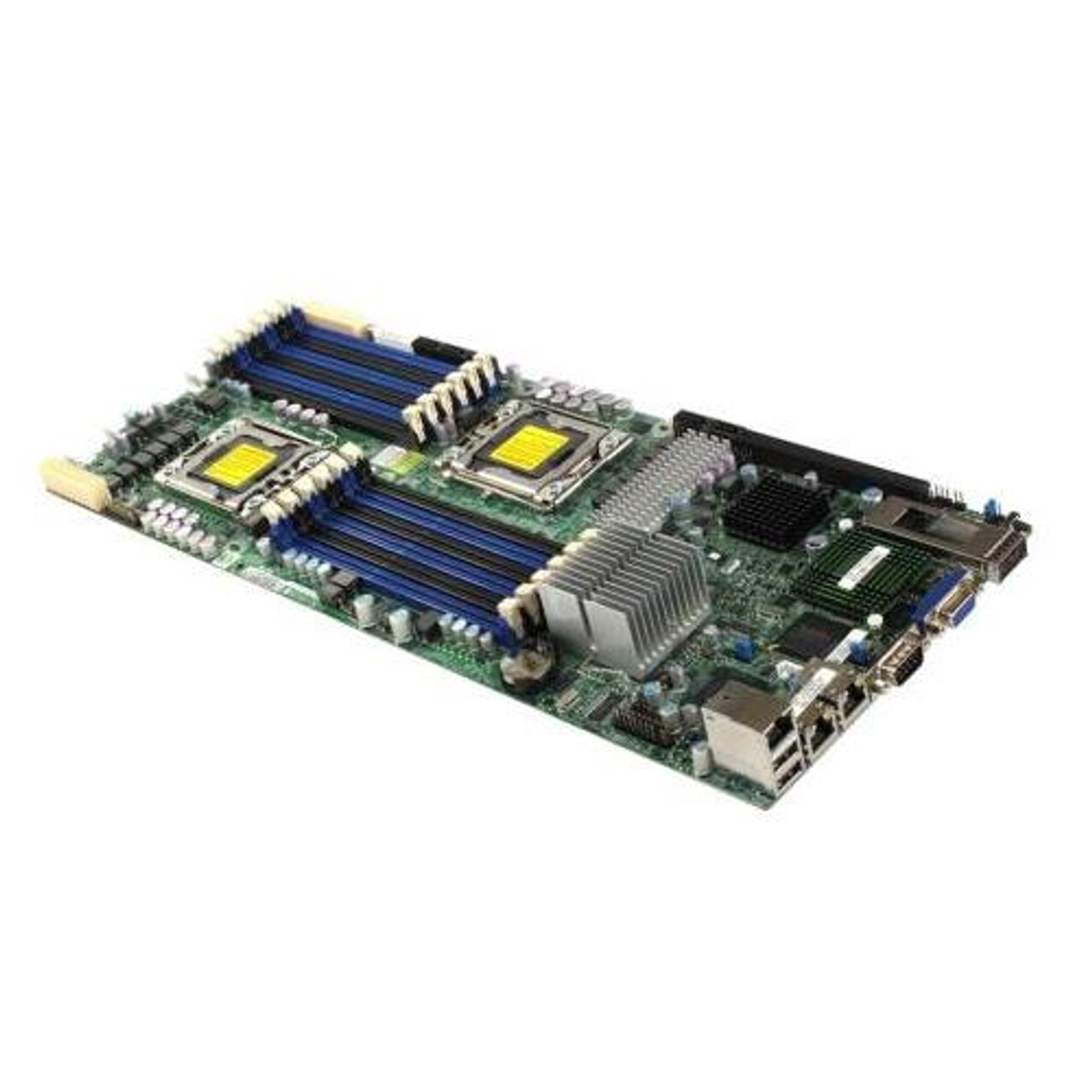

Supermicro MBD-X8DTT-IBQF-B Motherboard NEW, IN STOCK, 5 Year Warranty
Product SKUsMBD-X8DTT-IBQF-B

• X8DTT-IBQF(Bulk Pack)

Physical StatsForm Factor

• 16.64" x 6.5 " (42.26cm x 16.51cm)

Processor/CacheCPU

• Dual 1366-pin LGA Sockets
• Supports up to twoIntel® 64-bit Xeon®processor(s) of the same type below:
• Intel®
  Xeon®Processor 5600 Series (Westmere)
• Intel®
  Xeon®Processor 5500 Series (Nehalem-EP)

QPI

• up to 6.4 GT/s

System MemoryMemory Capacity

• 12x 240-pin DIMM slots
• Supports up to 192 GB** 1333 / 1066 / 800MHz DDR3 ECC Registered memory
• Supports up to 48 GB 1333 / 1066 / 800MHz DDR3 ECC / Non ECC Unbuffered memory
• Memory Mirroring supported

Memory Type

• 1333 / 1066 / 800MHz ECC Registered / ECC or Non ECC Unbuffered DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs

DIMM Sizes

• 1GB, 2GB, 4GB , 8GB** , 16GB**

Memory Voltage

• 1.5 V / 1.35 V

Error Detection

• Corrects single-bit errors
• Detects double-bit errors (using ECC memory)
• Supports Intel® x4 and x8 Single Device Data Correction (SDDC)

On-Board DevicesInfiniband

• Mellanox ConnectX-2 QDR Infiniband 40Gbps Controller

Chipset

• Intel® 5520 (Tylersburg) chipset
• ICH10R

SATA

• Intel ICH10R SATA 3.0Gbps Controller
• RAID 0, 1, 5, 10 support (Windows)
• RAID 0, 1, 10 support (Linux)

IPMI

• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
• Winbond® WPCM450 BMC

Network Controllers

• Intel® 82576 Dual-Port Gigabit Ethernet Controller
• Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
• Intel® I/OAT 3support for fast, scaleable, and reliable networking
• VMDqsupport for better performance of virtualization
• 1x Realtek RTL8201N PHY (dedicated IPMI)

Graphics

• Matrox G200eW

Super I/O

• Winbond W83527HG chip

Clock Generator

• 932S421 chip

Input / OutputSerial ATA

• Six Serial ATA ports
• Six SATA hard drives supported

LAN

• 2x RJ45 LAN ports
• 1x RJ45 Dedicated IPMI LAN port

USB

• 2 rear + 1 header (2 Ports)
• 4 total USB ports, 2.0 Compliant / 1.1 Compliant

VGA

• 1x VGA Port

Serial Port

• 1 Fast UART 16550 serial port

Infiniband

• 1 External QSFP Infiniband Connector

OS Compatibility
• Please see ourOS Compatibility ChartChassis ( Optimized for X8DTT-IBQF)1U Chassis

• CSE-808T-1200B
• CSE-808T-780B
• CSE-809T-1200B
• CSE-809T-780B

2U Chassis

• CSE-827H-R1200B
• CSE-827H-R1400B
• To support the new generation Intel® Xeon® processor-based motherboards, aRevision Kchassis is recommended for most models. Please talk to your sales representative or follow the link for details.

Expansion SlotsPCI-Express

• 1 (x16) PCI-E 2.0 slot

System BIOSBIOS Type

• 32Mb SPI Flash EEPROM with AMI® BIOS

BIOS Features

• Plug and Play (PnP)
• PCI 2.2
• ACPI up to 3.0
• USB Keyboard support

ManagementSoftware

• IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
• SuperDoctor® III
• Watch Dog
• NMI

Power Configurations

• ACPI Power Management
• Main Switch Override Mechansim
• Power-on mode for AC power recovery

PC Health MonitoringVoltage

• Monitors for CPU Cores,+1.5V, +3.3V, +5V, +12V, +5 Stdby, +3.3 Stdby, VBAT, Memory Voltages.
• CPU Core 6-Phase-switching voltage regulator

FAN

• Total of four 4-pin PWM fans
• 4x fans with tachometer monitoring
• Status monitor for speed control
• Status monitor for on/off control
• Low noise fan speed control (4-pin fan only)

Temperature

• Monitoring for CPU and chassis environment
• CPU thermal trip support
• Thermal Control for 4x Fan Connectors
• PSU I2C temperature sensing logic
• Thermal Monitor 2 (TM2) support
• PECI

LED

• Power Fail / Overheat LED
• Suspend-state Indicator LED
• UID LED

Other Features

• SDDC Support

Operating EnvironmentEnvironmental Spec.

• Operating Temperature: 10° to 35° C (50° to 95°F)
• Non-operating Temperature: -40° to 70° C (-40° to 158° F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5 to 95% (non-condensing)
