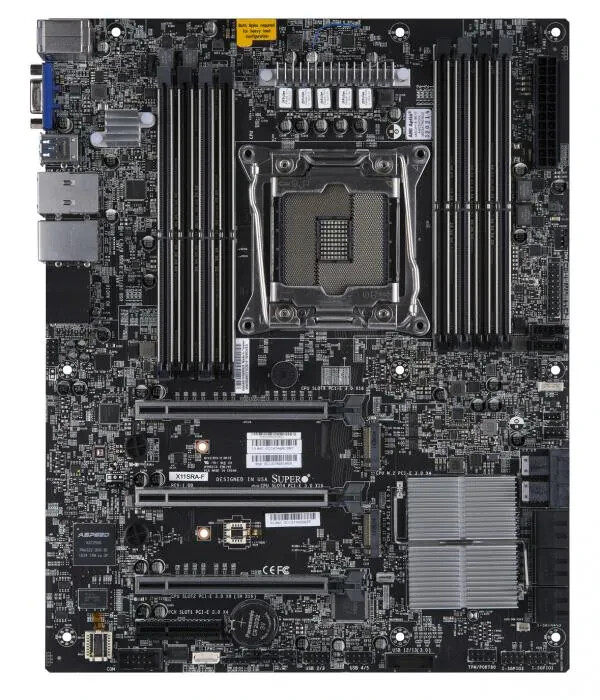

Supermicro MBD-X11SRA-RF-B Motherboard NEW, IN STOCK, 5 Year WarrantyProduct SKUsMBD-X11SRA-RFPhysical StatsForm Factor

• ATX

Dimension

• 12" x 9.6" (30.48cm x 24.38cm)

ProcessorCPU

• Intel® Xeon® W-2100 Processors, Intel® Xeon® W-2200 Processors
• Single Socket LGA-2066 (Socket R4) supported, CPU TDP supports Up to 165W TDP

System MemoryMemory Capacity

• 8 DIMM slots
• Up to 1TB ECC LRDIMM, DDR4-2666MT/s; Up to 512GB ECC RDIMM, DDR4-2666MT/s

Memory Type

• 2666/2400/2133/1866/1600 MT/s ECC DDR4 LRDIMM, RDIMM SDRAM 72-bit, 288-pin

DIMM Sizes

• 4GB, 8GB, 16GB, 32GB, 64GB, 128GB

Memory Voltage

• 1.2V

On-Board DevicesChipset

• Intel® C422

SATA

• Intel® C422 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10

IPMI

• ASPEED AST2500

Network Controllers

• Single LAN with Intel® Ethernet Controller I210-AT, (Share with IPMI)
• Single LAN with Aquantia 5G LAN chip AQC108

Input / OutputUSB

• 6 USB 2.0 port(s) (4 via header; 2 rear)
• 6 USB 3.2 Gen1 port(s) (2 via header; 4 rear)
• 2 USB 3.2 Gen2 port(s) (2 type A)

Video Output

• 1 VGA port(s)

Serial Port

• 1 COM Port(s) (1 header)

TPM

• 1 TPM Header

Expansion SlotsPCIe

• 3 PCIe 3.0 x16,
• 1 PCIe 3.0 x4
• ***3xPCIe3.0 x16 Slots(8/16/16 (Skylake-W 48 lanes)), 1xPCIe3.0x4 slots***

M.2

• M.2 Interface: 2 PCIe 3.0 x4, RAID 0,1
• Form Factor: 2280/22110
• Key: M-Key

System BIOSBIOS Type

• 256MB UEFI

ManagementSoftware

• SuperDoctor® 5,IPMI2.0, Watchdog

PC Health MonitoringVoltage

• VBAT, System temperature, Monitors CPU voltages, Chassis intrusion header, 3.3V standby, 1.2V (VDIMM), 1.05 (PCH), +5V standby, +5V, +3.3V, +12V, +1.8V, Monitors for CPU Cores, 5 (4-pin)

LED

• CPU / System Overheat LED

Temperature

• Monitoring for CPU and chassis environment
• CPU thermal trip support
• Support to monitor Supermicro AOC temperatures from IPMI or SD 5
• PECI

FAN

• 5x 4-pin fan headers (up to 5 fans)
• PWM fan speed control
• Fan speed control
• Overheat LED indication

Other Features

• WOL, RoHS, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion header, Chassis intrusion detection, ATX Power connector, ACPI power management, Voltage and Frequency Overclocking, Intel Smart Response Technology

Operating EnvironmentOperating Temperature Range

• 0°C - 50°C (32°F - 122°F)

Non-Operating Temperature Range

• -20°C - 60°C (-4°F - 140°F)

Operating Relative Humidity Range

• 10% - 85% (non-condensing)

Non Operating Relative Humidity Range

• 10% - 95% (non-condensing)
